Bellhousing for Ford 4.6/5.0/5.4/5.8/6.2L Motor to Ford TKO/T5

SKU: BHFO-26080 Category:

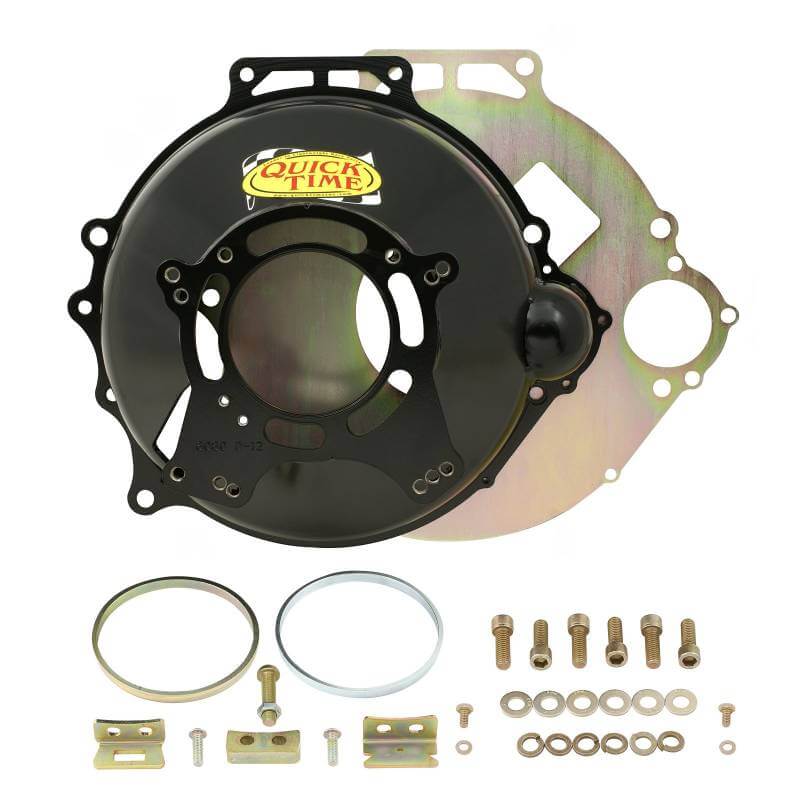

QT SFI Bell Housing for Ford 4.6/5.0/5.4 Mod Motor to Ford TKO/T5

$696.95

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

Perfect fit for 4.6/5.0/5.4/5.8/6.2L Ford Modular engines with TKO, TR3550, or T5 transmissions

This Quick Time’s bellhousing is designed for street, strip and circle track applications. Built from high quality grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. This bellhousing will fit 4.6/5.0/5.4/5.8/6.2L Ford Modular Engines to Ford TKO 500-600, T5 Mustang, TR3550. 6.925 in deep this bellhousing will clear 164 tooth flywheel with 11 in clutch. Transbore is 4.685/4.910 in. Weighs 20 pounds. Fork bracket, block plate and Grade 8 hardware included. Other applications available.

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • Fits 4.6/5.0/5.4/5.8/6.2L Modular Ford Engines
  • Ford TKO 500-600 T5 Mustang TR 3550 Transmission
  • 164 Tooth Flywheel With 11 In Clutch
  • Transbore 4.685/4.910
  • Weighs 20 Lbs
  • Fork bracket block plate and hardware
Brand Quick Time
Certification None
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Ford 4.6 Modular
  Ford 5.0 Modular
  Ford 5.4 Modular
  Ford 5.8 Modular
  Ford 6.2 Modular
Engine Plate RM-6009
Flywheel 164 Tooth
Height 6.925 inch
Material Steel
Product Type Bellhousing
Trans Bore 4.85 / 4.91 / 5.12
Transmission T5 Mustang
  TKO 500/600 Ford
  TR3550
Transmission Type Manual
Warranty Limited 90 Day Warranty
Weight 20#

Weight: 20 lbs

Dimensions: W19" x H8" x L19"
