Description

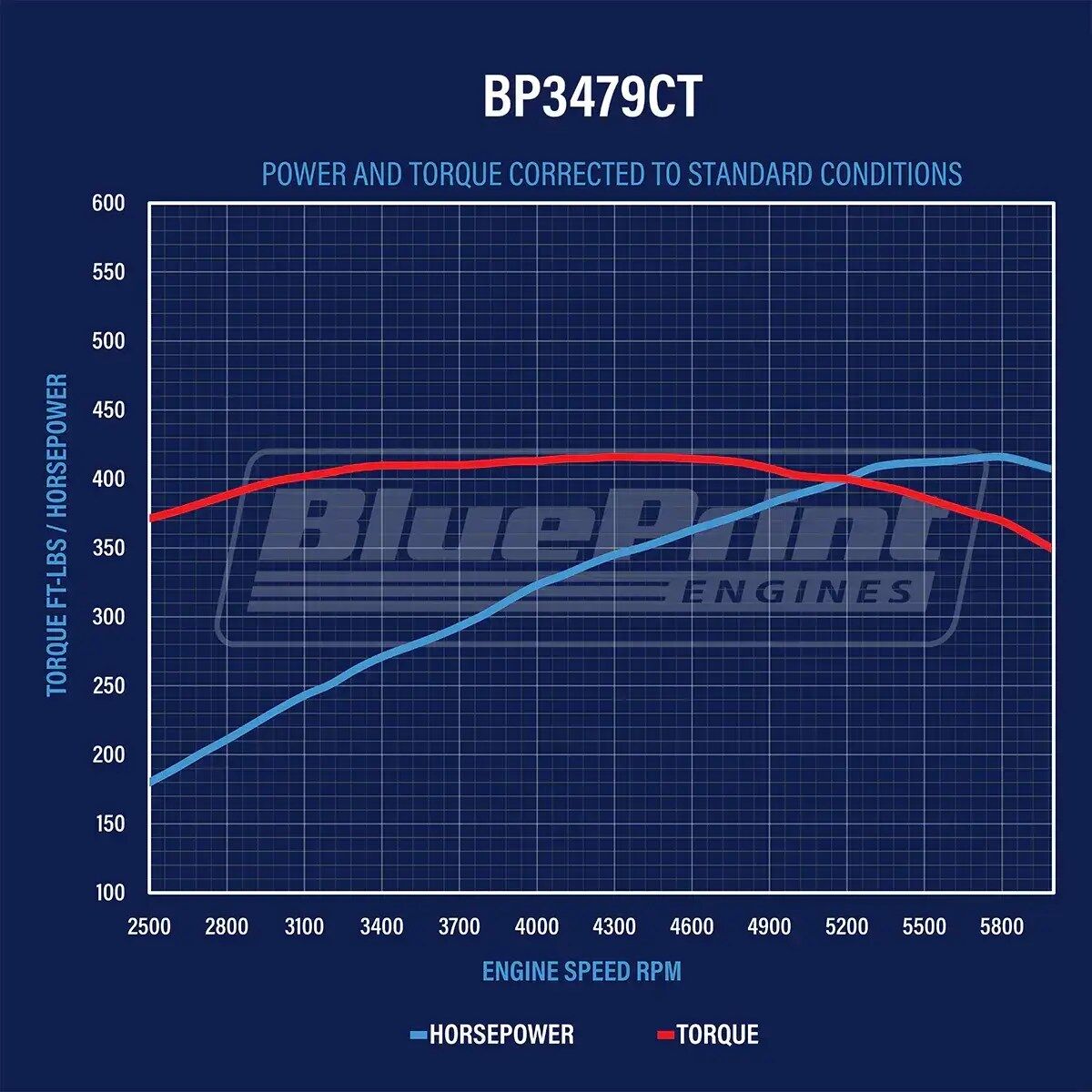

- Horsepower & Torque: 415 Horsepower / 415 FT. LBS. Torque
- Compression Ratio: 10.0:1
- Aluminum Heads
- Cast Crankshaft
- Hydraulic Roller Cam
Block:
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000″ Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Cast Crankshaft
- 3.400″ Stroke
- Forged 5.400″ Connecting Rods
- Forged Pistons
- 28oz Externally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – HP9009
- 60cc Chamber
- 2.02″ Intake / 1.60″ Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .543 Intake / .554 Exhaust Lift
- 218 Intake / 226 Exhaust Duration
- @.050-112 Degree Lobe Separation
Ignition Timing:
- 10-16 Degrees Initial, 32-34 Total
Also Includes:
- Front Sump Oil Pan
- Valve Covers
- Timing Cover
Notes:
- Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
Fuel Delivery Type: Carbureted, 670cfm **Not Included**
Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)
Spark Plug Gap: .035″
Harmonic Balancer: BPP28 – 28 Ounce, 6.4″ Diameter
Flex plate/Flywheel: 28 Ounce Weighted such as BPP529618, BPPF28164, BPPF157T28
Stall Converter: 2000-2400 rm
Intake Manifold: Dual plane (not included)
Fuel Recommendation: 91 Octane
Timing (Initial/Total Advance): Initial timing – 10-16° and Total timing 32-34°
Firing Order: 1,3,7,2,6,5,4,8
Notes: Not for EGR – Engine requires a V-belt standard rotation water pump and belt system.
Recommended Break in Oil: BPP710 (Click Here)
Recommended Service Oil: BPP10W30 (Click Here)
Recommended Oil Filter: BPP21085 or BPP51515 (Click Here)
Total Oil capacity with production oil pan, and Correct Filter: 5 Quarts
