Description

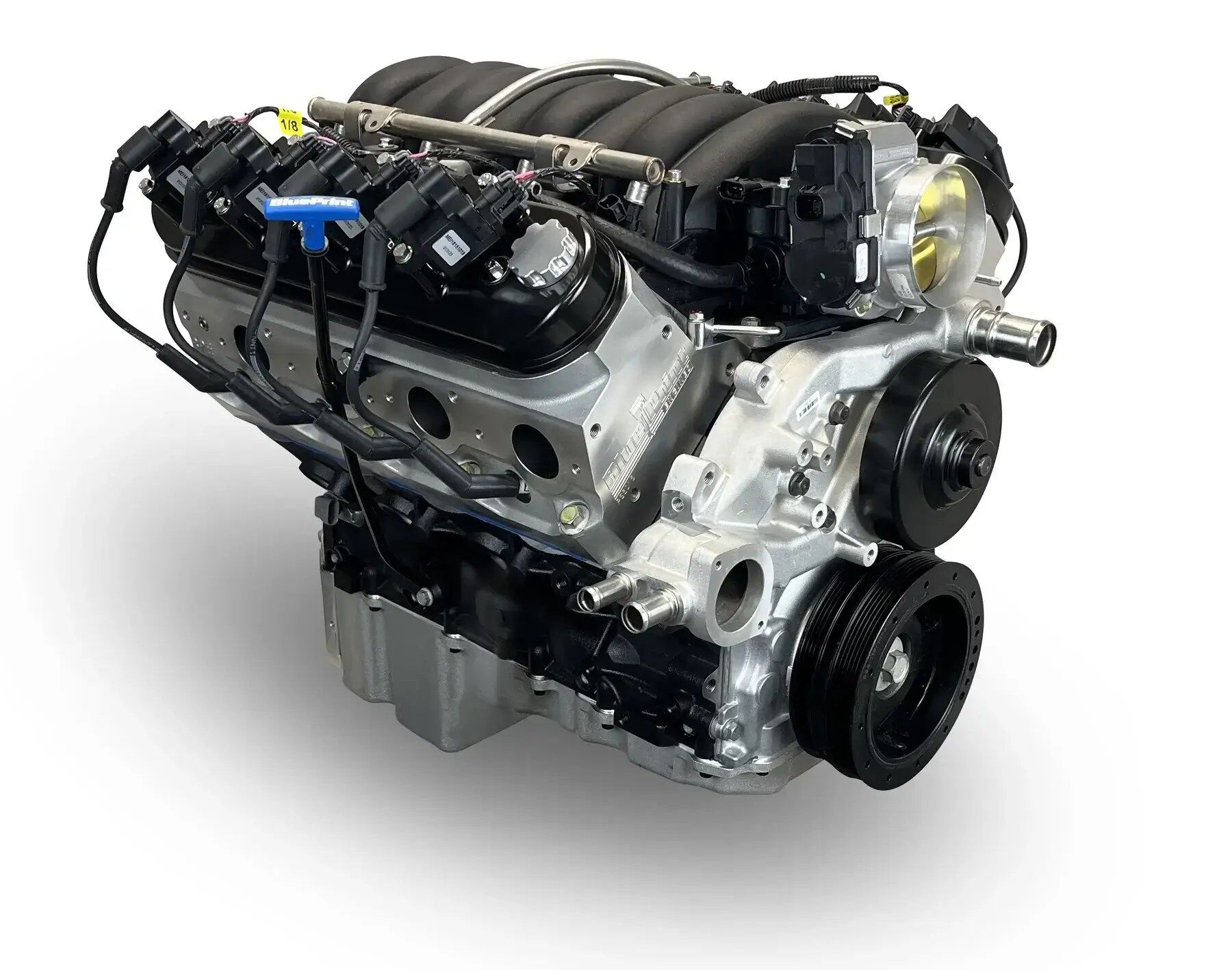

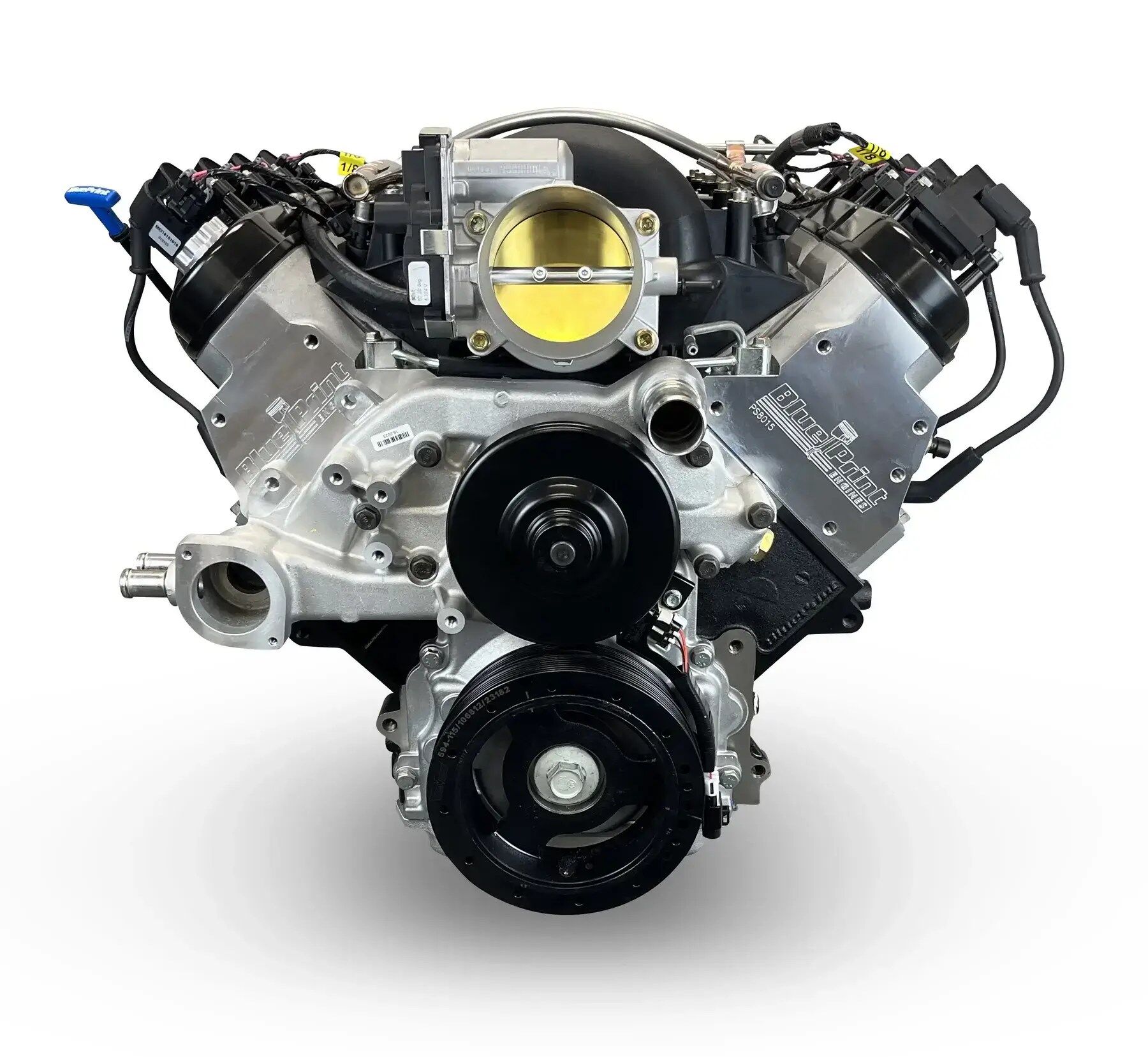

The Blueprint Engines 427 cubic inch Pro Series crate engine is a dyno-tested, turnkey powerplant that delivers 605 horsepower and 565 lb-ft of torque, making it an ideal match for Holley’s Terminator X Max 550-931 EFI system. This engine features a BluePrint Engines High Strength cast iron (LSX Style) block with reinforced internals, steel crankshaft, forged rods, and forged pistons, all internally balanced for durability and long-term performance. Paired with LS3-style aluminum heads and a .624 Intake / .624 Exhaust Lift and 239 Intake / 255 Exhaust Duration @ .050 – 114° LSA hydraulic roller cam, the 11:1 compression ratio offers strong street and strip capability. The Terminator X Max ECU included in the kit integrates seamlessly with this engine’s 58x crank and 4x cam sensor setup, providing plug-and-play functionality with drive-by-wire throttle, coil packs, and EV6-style fuel injectors already installed. The ECU’s self-learning fuel map ensures easy startup and quick adaptation to the engine’s fueling needs without complex tuning, while also enabling expandability for nitrous, boost control, or electric fan integration via CAN or I/O modules like Holley’s 554-165. With included accessories like a pre-installed intake manifold, injectors, throttle body, water pump, and an easy to mount DBW pedal, this engine is truly swap-ready. Whether for a restomod, pro-touring build, or a street performance application, the combination of a dyno-certified engine and the advanced control of the Terminator X Max offers unmatched reliability, tunability, and future upgrade potential—all backed by a 30-month/50,000-mile warranty.
Description:

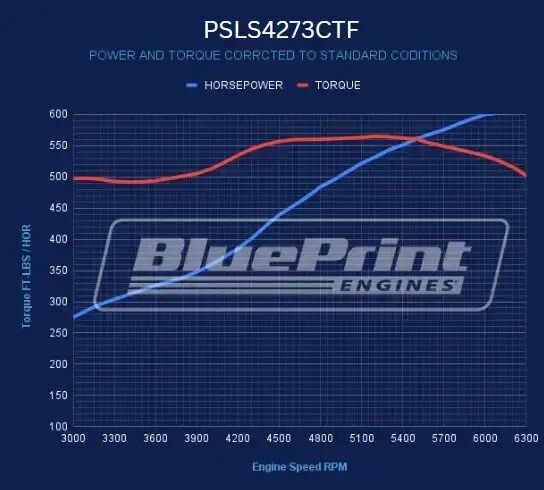

- Horsepower & Torque: 605 Horsepower / 565 ft. lbs. Torque
- Compression Ratio: 11:1
- BluePrint Engines LS3 Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron (LSX Style) Block
- Increased Deck Thickness and Strength Webbing
- Utilizes OEM LS3 Front and Rear Covers
- Improved Water Jacket Design
- Extended Cylinder Skirt
- 1-Piece Rear Main Seal
- Priority Main Oiling
- 4.0685″ Bore
- 6-Bolt Main
Rotating Assembly:
- Forged Crankshaft
- 4.125″ Stroke
- Forged 6.125″ Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – PS8015
- 69cc Chamber
- 2.165″ Intake / 1.590″ Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .624 Intake / .624 Exhaust Lift
- 239 Intake / 255 Exhaust Duration
- @.050-114 Degree Lobe Separation
Ignition Timing:
- ECM Supplied with Calibration

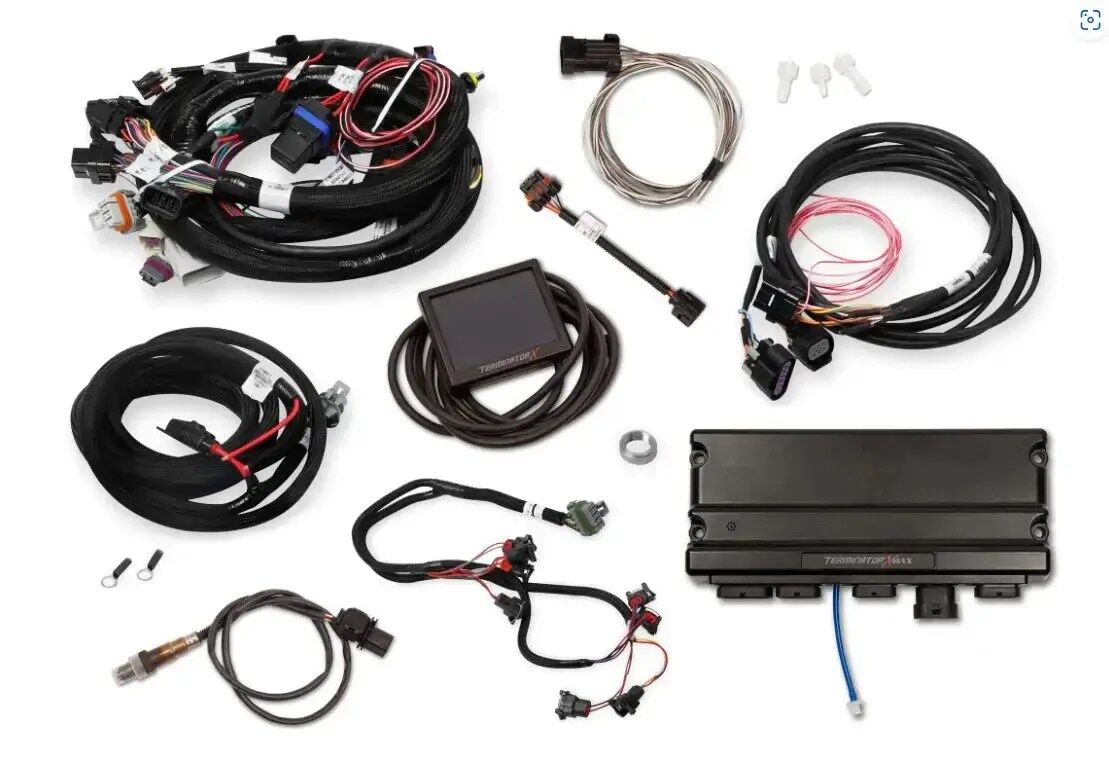

Holley Terminator X Max Specific Features and Benefits:
- Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
- On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
- Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
- Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
- 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) – Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
- Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
- Integrated 3.5″ Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
- Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine.
Also Includes:
- LS Swap Oil Pan – Windage Tray – Pick Up Screen
- BluePrint Engines Fuel Injectors and Rail
- DBW Throttle Body – BPP12191019
- Water Pump – BPPLS126WP
- Throttle Pedal, and Sensors
- GM Plastic Intake Manifold
- Spark Plugs & Wires
- Harmonic Balancer
- Coil Packs
Notes:
- Holley terminator X MAX System supports transmission control, but requires additional Transmission harness such as BPP558405
- This engine requires a non-weighted flex plate/flywheel.
- Recommended Fuel: 91 Octane
- BluePrint Engines recommends a 2200+ RPM stall converter.
- Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
- Not for use in pollution-controlled vehicles or in dry sump applications.
Part Number: PSLS4273CTF
Fuel Delivery Type: Electronic Fuel Injected
Spark Plug: AC Delco 41-985
Spark Plug Gap: .040″
Harmonic Balancer: Non-Weighted
Flexplate/Flywheel: Non-Weighted
Stall Converter: 2200+
Intake Manifold: GM Plastic Intake
Fuel Recommendation: 91- 93 Octane
Timing (Initial/Total Advance): Ignition timing and spark advance are controlled by Powertrain Control Module
Firing Order: 1,8,7,2,6,5,4,3
Recommended Oil Filter: BPPB160
Recommended Break in Oil: BPP710
Recommended Oil: BPP10W30
