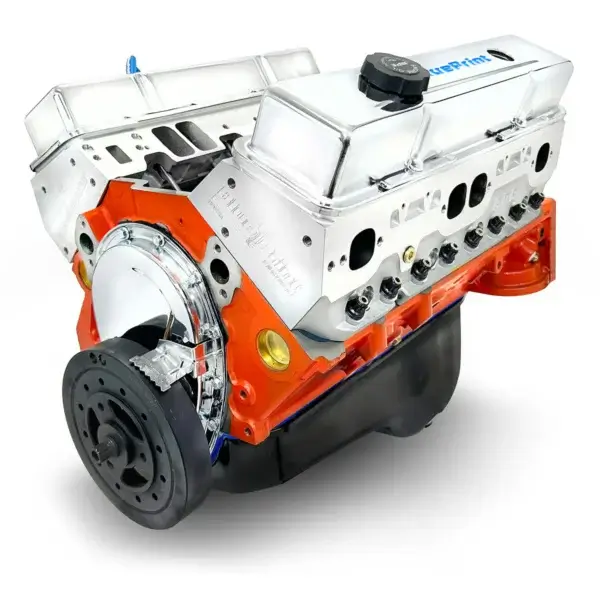

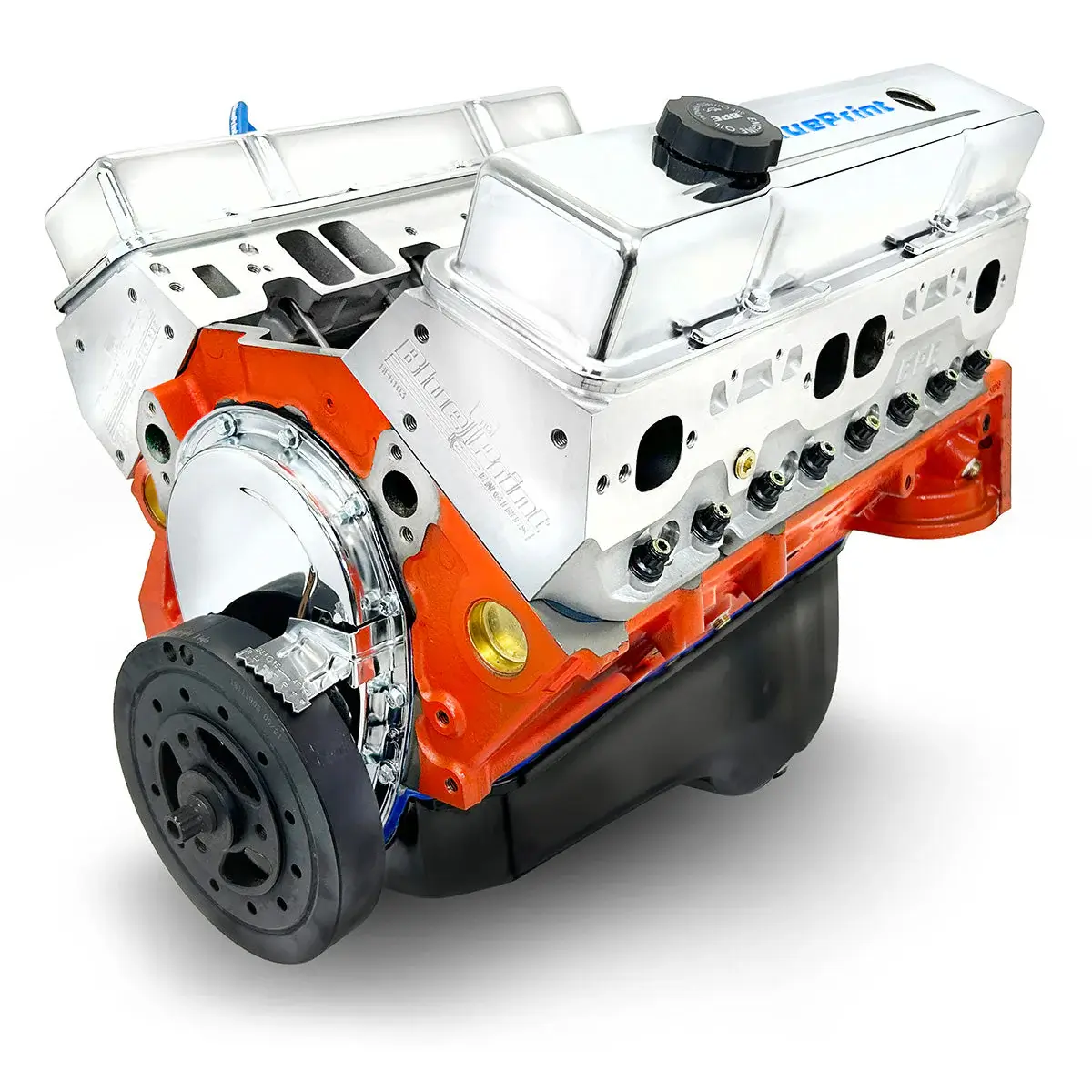

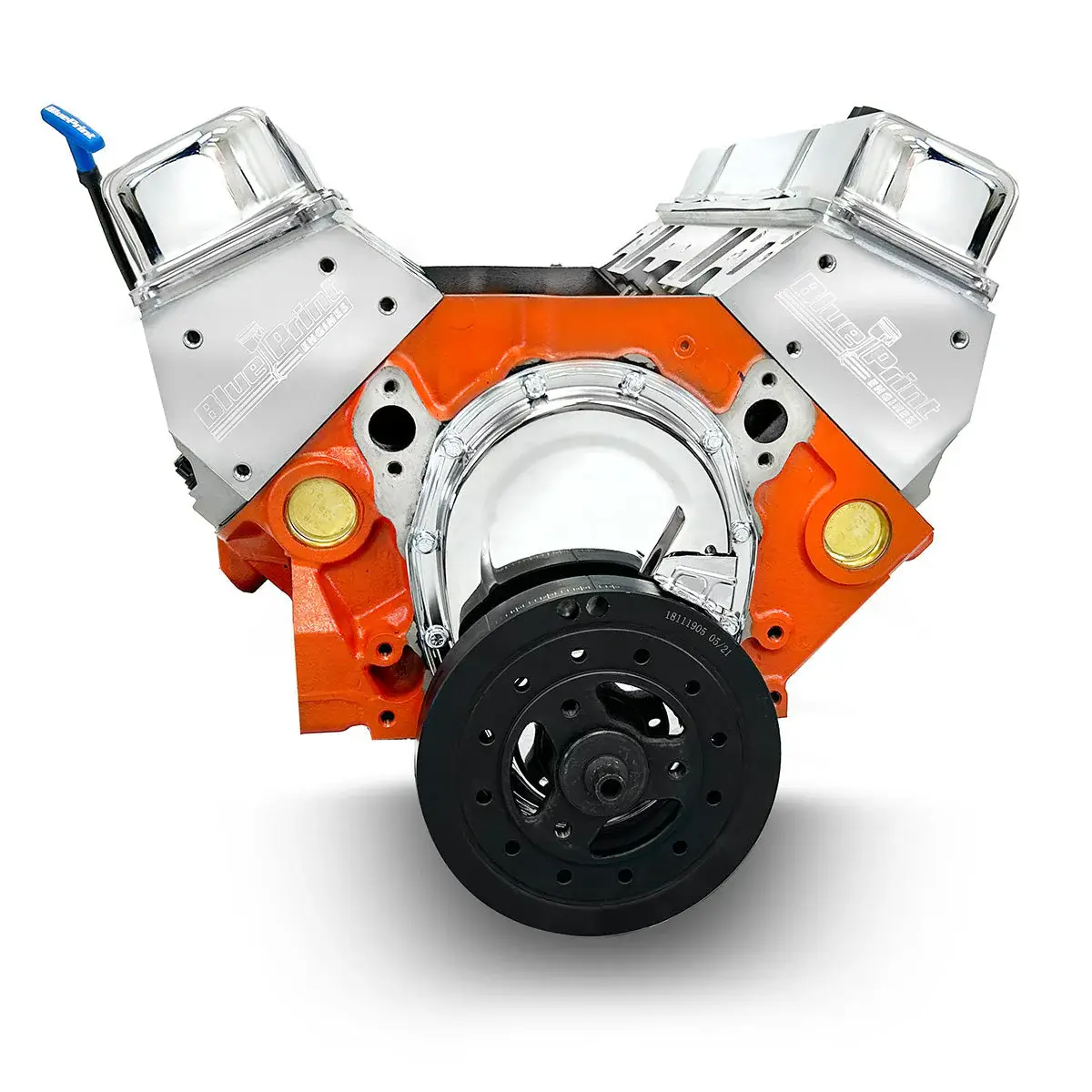

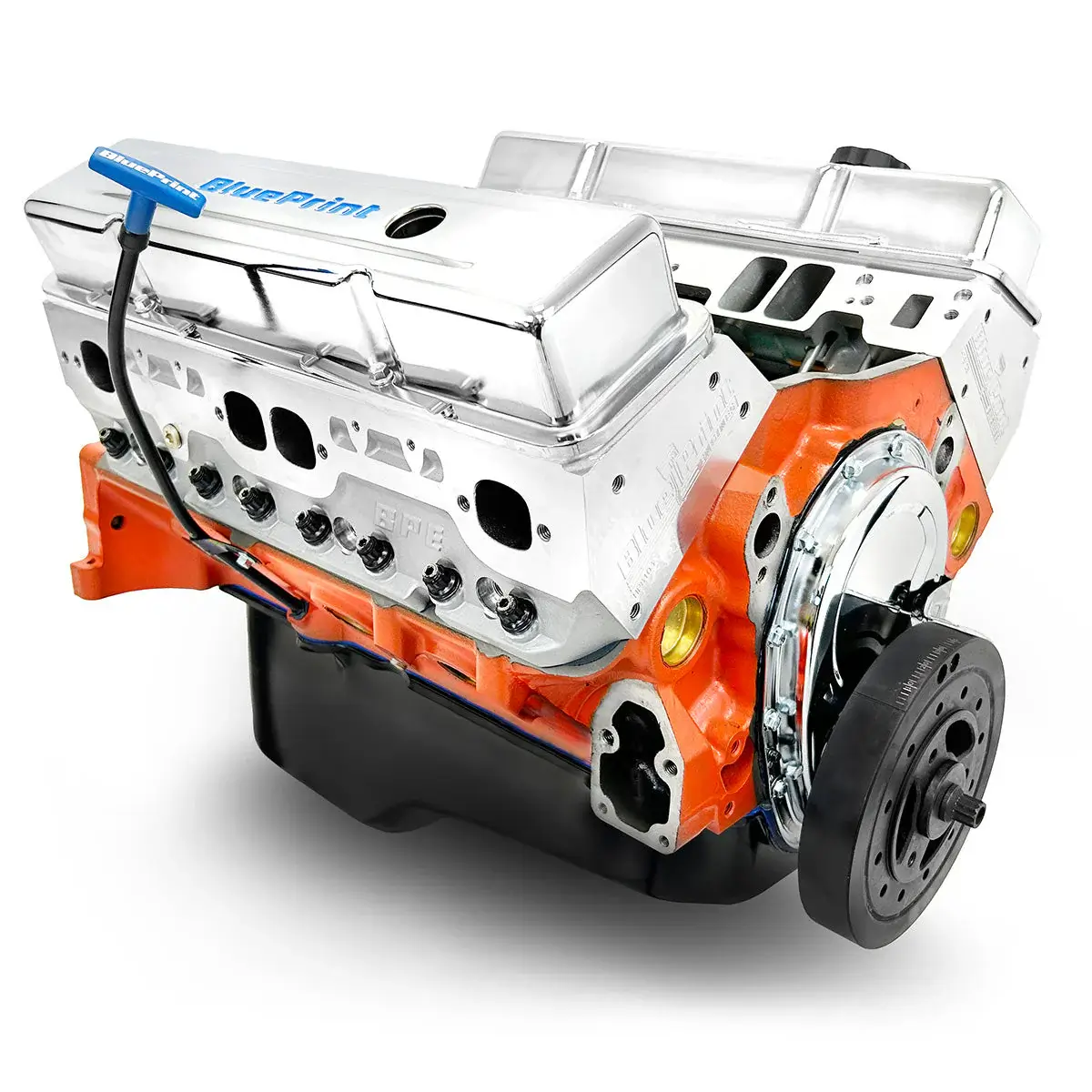

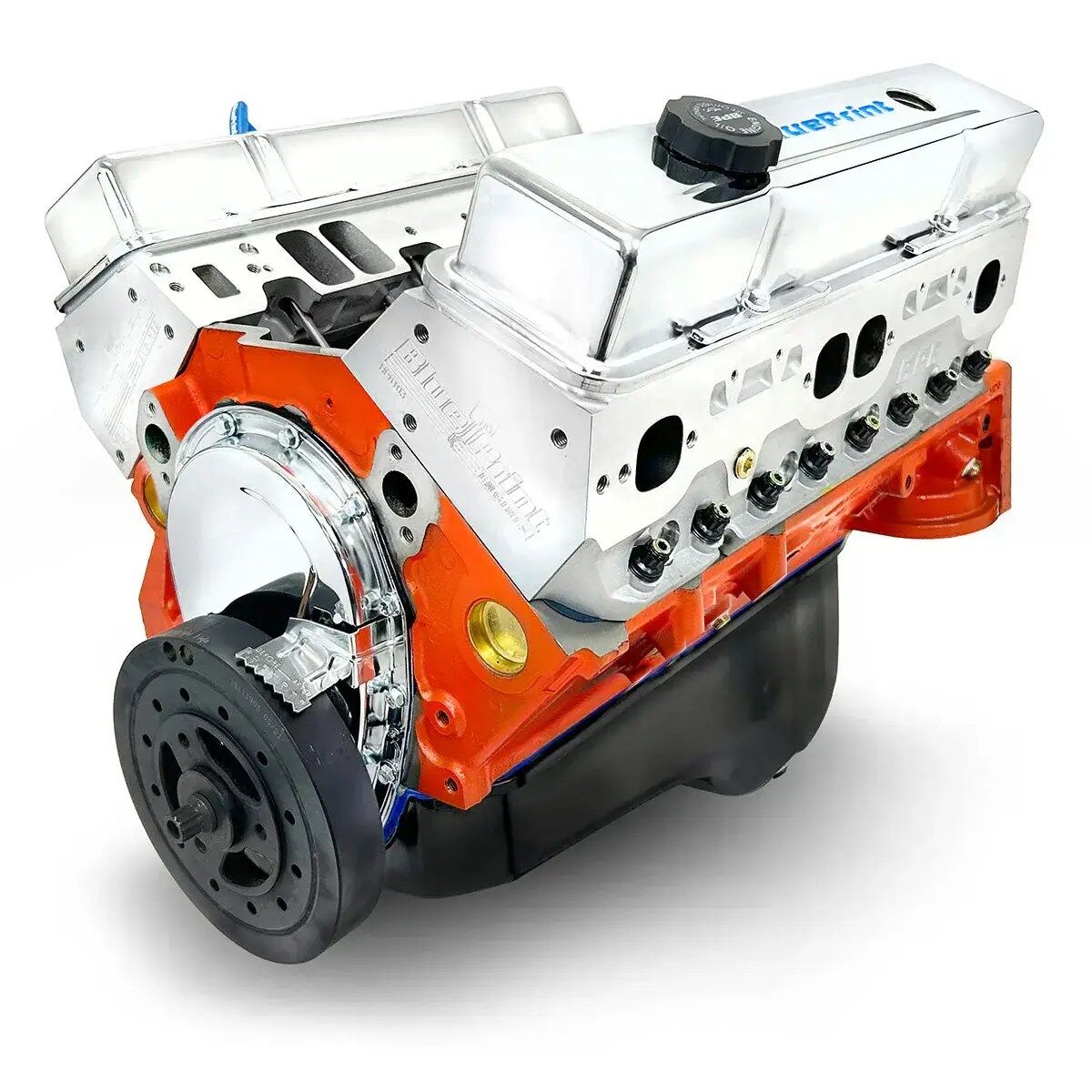

GM Small Block Compatible 454 c.i. ProSeries Engine – 563 Horsepower – Long Block
Horsepower & Torque: 563 Horsepower / 545 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10.5:1
Camshaft: Hydraulic Roller Cam – .638 Intake / .622 Exhaust Lift and 251 Intake / 259 Exhaust Duration @.050-114° LSA
Pistons: Forged
Crankshaft: Forged Steel Crank – 4.000″ Stroke and 6.000″ Rods
Fuel Recommendation: 91+ Octane
$10,049.00
In Stock
-
If you don't know what you need, call our technical sales staff at 931-646-4836
Description
- Horsepower & Torque: 563 Horsepower / 545 ft. lbs. Torque
- Compression Ratio: 10.5:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.250″ Bore
Rotating Assembly:
- BluePrint Forged Crankshaft
- 4.000″ Stroke
- Forged 6.000″ Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – HP8103
- 64cc Chamber
- 2.08″ Intake / 1.60″ Exhaust Valves
- 220cc Intake / 67cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .638 Intake / .622 Exhaust Lift
- 251 Intake / 259 Exhaust Duration
- @.050-114 Degree Lobe Separation
Also Includes:
- Valve Covers – BPP9518
- Harmonic Balancer
- Timing Cover
- Oil Pan
Weight: 700.0000 lbs
Dimensions: W0.0000" x H0.0000" x L0.0000"
