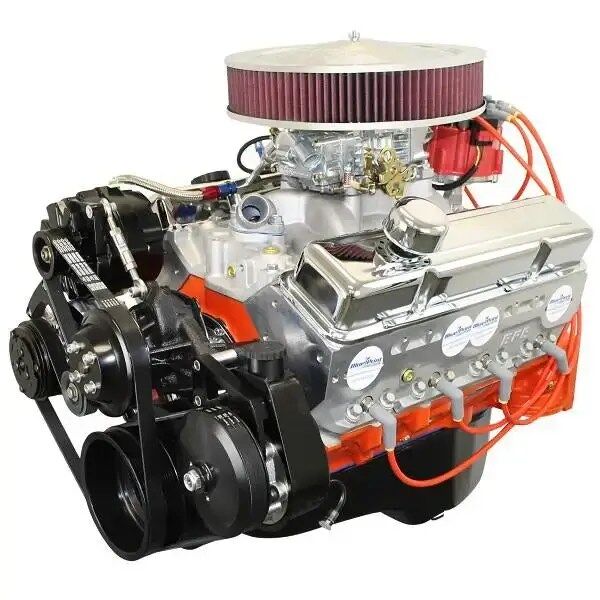

GM Small Block Compatible 400 c.i. Engine – 500 Horsepower – Deluxe Dressed – Black Pulley Kit – Carbureted

Description

Description:

• Horsepower & Torque: 500 Horsepower / 510 ft. lbs. Torque
• Compression Ratio: 10.3:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.125″ Bore

Rotating Assembly:

• BluePrint Forged Steel Crankshaft
• 3.750″ Stroke
• 5.700″ Connecting Rods w/ 150,000 PSI Bolts
• Forged Pistons
• Internally Balanced Front – Externally Balanced Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads – HP8103
• 64cc Chamber
• 2.08″ Intake / 1.60″ Exhaust Valves
• 220cc Intake / 67cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .553 Intake / .576 Exhaust Lift
• 236 Intake / 242 Exhaust Duration
• @ .050-110 Degree Lobe Separation

Ignition Timing:

• 10-16° Initial and Total Timing 32-34° at 3500 RPM

Also Includes:

• Front Accessory Drive with Power Steering Pump, 7B10 Peanut style A/C Compressor, 1-Wire Alternator
• Holley 850cfm Double Pumper Carburetor – BPP04781S
• Satin Aluminum Intake Manifold – BPP350VINT
• HEI Ready Run Distributor – BPP350RBK
• Thermostat and Thermostat Housing
• Long Style Water Pump – BPP67265
• Mechanical Fuel Pump – BPP61073
• Valve Covers – BPP9518
• Spark Plugs and Wires
• Harmonic Balancer
• Timing Cover
• Oil Pan

Notes:

• Front Accessory Drive does NOT fit Corvette.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Not for EGR
• The Aftermarket intake manifold and heads installed on this engine may not be compatible with OEM accessory brackets that use intake or exhaust mounted bosses.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM
