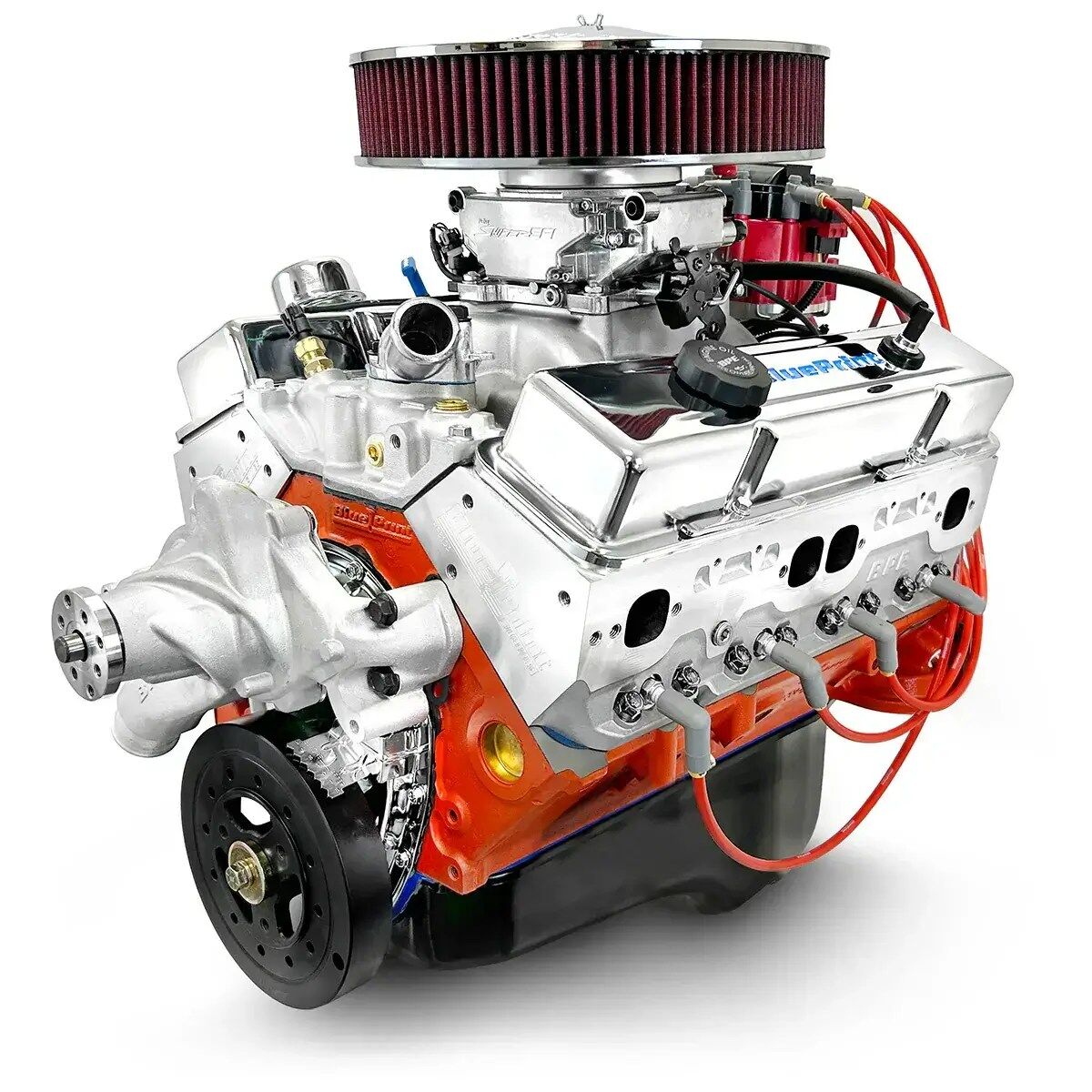

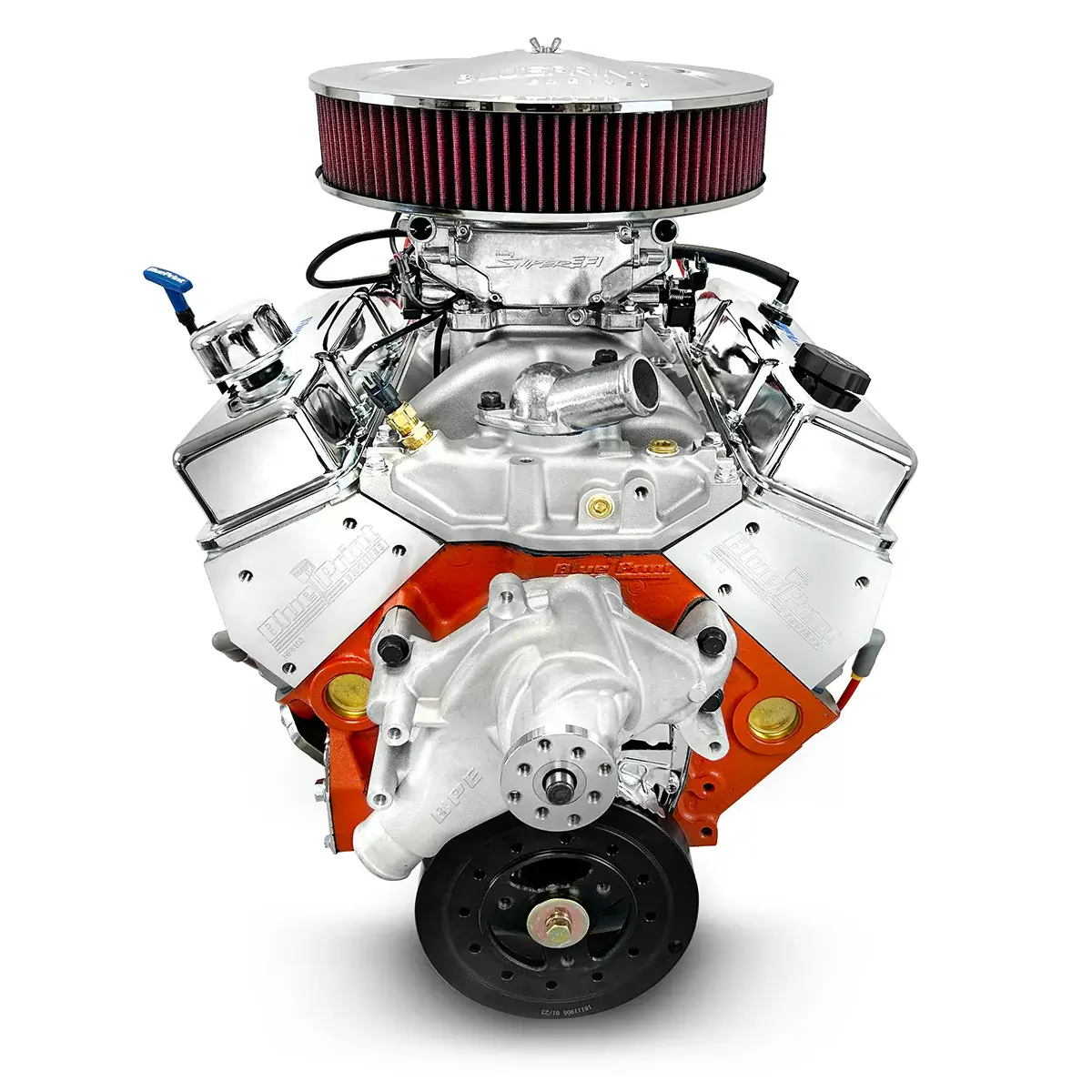

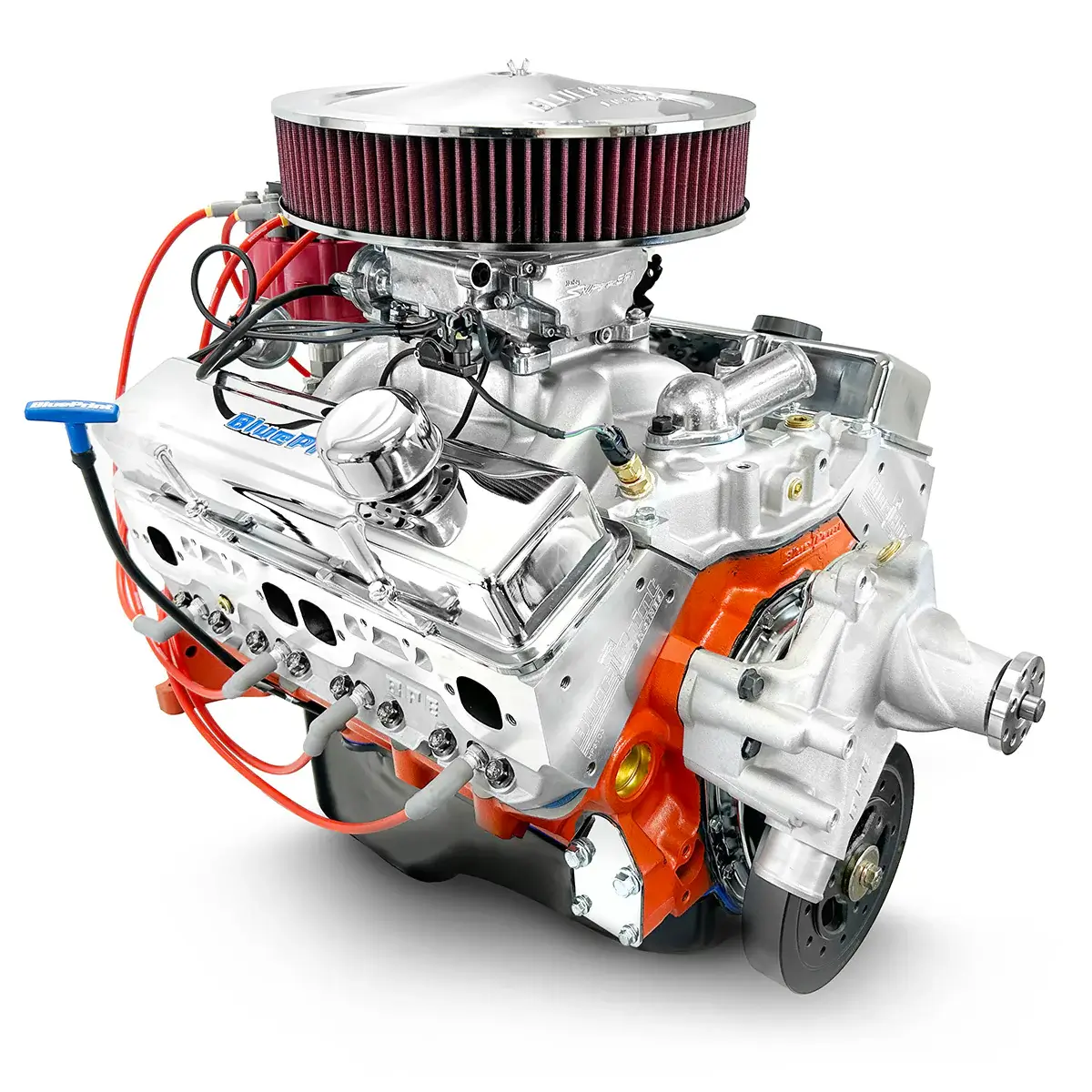

GM Small Block Compatible 400 c.i. Engine – 500 Horsepower – Deluxe Dressed – Fuel Injected

Description

Description:

• Horsepower & Torque: 500 Horsepower / 510 FT. LBS. Torque
• Compression Ratio: 10.3:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.125″ Bore
• 1-Piece Rear Main Seal
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• Drilled and Tapped for Clutch Linkage

Rotating Assembly:

• New BluePrint Forged Steel Crankshaft
• 3.750″ Stroke
• 5.700″ Connecting Rods w/ 150,000 PSI Bolts
• Forged Pistons
• Internal Front / External Rear Engine Balance

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads – HP8103
• 64cc Chamber
• 2.08″ Intake /1.60″ Exhaust Valves
• 220cc Intake / 67cc Exhaust Runners

Cam Specs:

• Cam Type: Roller
• .555 Intake / .576 Exhaust Lift
• 236 Intake / 242 Exhaust Duration
• @ .050-110 Degree Lobe Separation

Ignition Timing:

• 10-16° Initial and Total Timing 32-34° at 3500 RPM

Also Includes:

• Intake Manifold Dual Plane, Satin Aluminum – BPP350VINT
• Holley Sniper 2 EFI System – BPP550-510-3XX
• HEI Ready Run Distributor – BPP350RBK
• Thermostat and Thermostat Housing
• Long Style Water Pump – BPP67265
• Valve Covers – BPP9518
• Spark Plugs and Wires
• Harmonic Balancer
• Timing Cover
• Oil Pan

Notes:

• Not for EGR.
• The Aftermarket intake manifold and heads installed on this engine may not be compatible with OEM accessory brackets that use intake or exhaust mounted bosses.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
