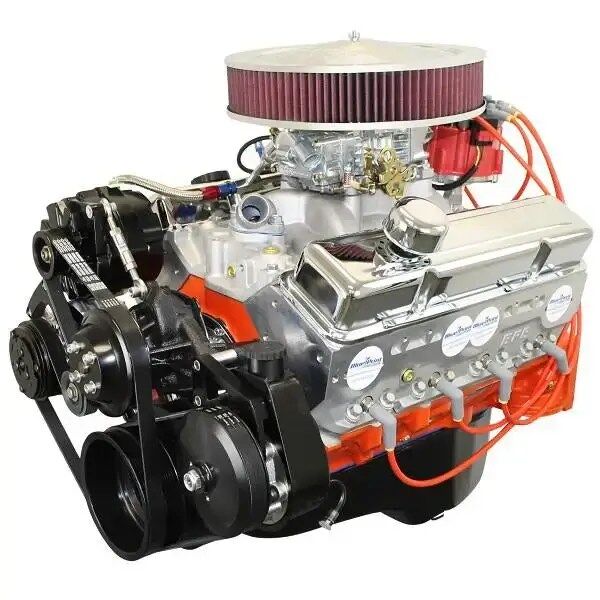

GM Small Block Compatible 400 c.i. Engine - 500 Horsepower - Deluxe Dressed - Multi-Port Fuel Injected Black Pulley Kit

GM Small Block Compatible 400 c.i. Engine – 500 Horsepower – Deluxe Dressed – Multi-Port Fuel Injected Black Pulley Kit

SKU: BP4002CTFDK Categories: , Brand:

Horsepower & Torque: 500 Horsepower / 510 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10.3:1

Camshaft: Hydraulic Roller Cam – .555 Intake / .576 Exhaust Lift and 236 Intake / 242 Exhaust Duration @.050-110° LSA

Pistons: Forged

Crankshaft: Forged Steel Crank – 3.750″ Stroke and 5.700″ Rods

Fuel Recommendation: 91+ Octane

Ships from Manufacturer This item typically ships within 2 Weeks Free Freight Shipping to the Lower 48!

$11,799.00

In Stock

-

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

  • Horsepower & Torque: 500 Horsepower / 510 FT. LBS. Torque
  • Compression Ratio: 10.3:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Forged Crank
  • BluePrint Engines Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Manufactured and Machined in the USA!
  • Drilled and Tapped for Clutch Linkage
  • Mech Fuel Pump Provision: Yes
  • Passenger Side Dipstick
  • 1-Piece Rear Main Seal
  • 4-Bolt Main
  • 4.125″ Bore

Rotating Assembly:

  • BluePrint Forged Steel Crankshaft
  • 3.750″ Stroke
  • 5.700″ Connecting Rods w/ 150,000 PSI Bolts
  • Forged Pistons
  • Internally Balanced Front – Externally Balanced Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads – HP8103
  • 64cc Chamber
  • 2.08″ Intake / 1.60″ Exhaust Valves
  • 220cc Intake / 67cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .555 Intake / .576 Exhaust Lift
  • 236 Intake / 242 Exhaust Duration
  • @.050-110 Degree Lobe Separation

Ignition Timing:

  • 10-16° Initial and Total Timing 32-34° at 3500 RPM

Also Includes:

  • Black Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
  • Holley Sniper 2 EFI System – BPP550-510-3XX
  • Intake Manifold Dual Plane, Satin Aluminum – BPP350VINT
  • HEI Ready Run Distributor – BPP350RBK
  • Thermostat and Thermostat Housing
  • Valve Covers – BPP9518
  • Spark Plugs and Wires
  • Harmonic Balancer
  • Timing Cover
  • Air Cleaner
  • Oil Pan

Notes:

  • This water pump is not rated for use with fan spacers or fan clutches.
  • Front Accessory Drive does NOT fit Corvette
  • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
  • Not for EGR
  • The Aftermarket intake manifold and heads installed on this engine may not be compatible with OEM accessory brackets that use intake or exhaust mounted bosses.
  • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

Weight: 478 lbs

Dimensions: W40" x H40" x L27"
