1967-69 F-body (Camaro/Firebird) 6-Speed Kit

SKU: PFGM-30001T Category:

ProFit MAGNUM Installation Kit for 1967-69 Gen 1 F-body (Camaro/Firebird)


Request A Quote


If you don't know what you need, call our technical sales staff at 931-646-4836


American Powertrain Pro-Fit Magnum 6-speed kit for First Gen Camaro, Firebird and Trans Am F-body for factory 4-speed cars

The Ultimate Overdrive for 1st Gen Camaro!

  • 30-50% increase in fuel economy
  • Low RPM cruising for greatly reduced driver fatigue and an improved highway driving experience.
  • Reduced engine wear leading to longer engine life
  • Cooler engine operating temperatures
  • Reduced NVH (noise – vibration – harshness)

Tremec T56 Magnum Gear Ratios

Close Ratio 2.66, 1.78, 1.30, 1.00, 0.80, 0.63
Wide Ratio 2.97, 2.10, 1.46, 1.00, 0.74, 0.50

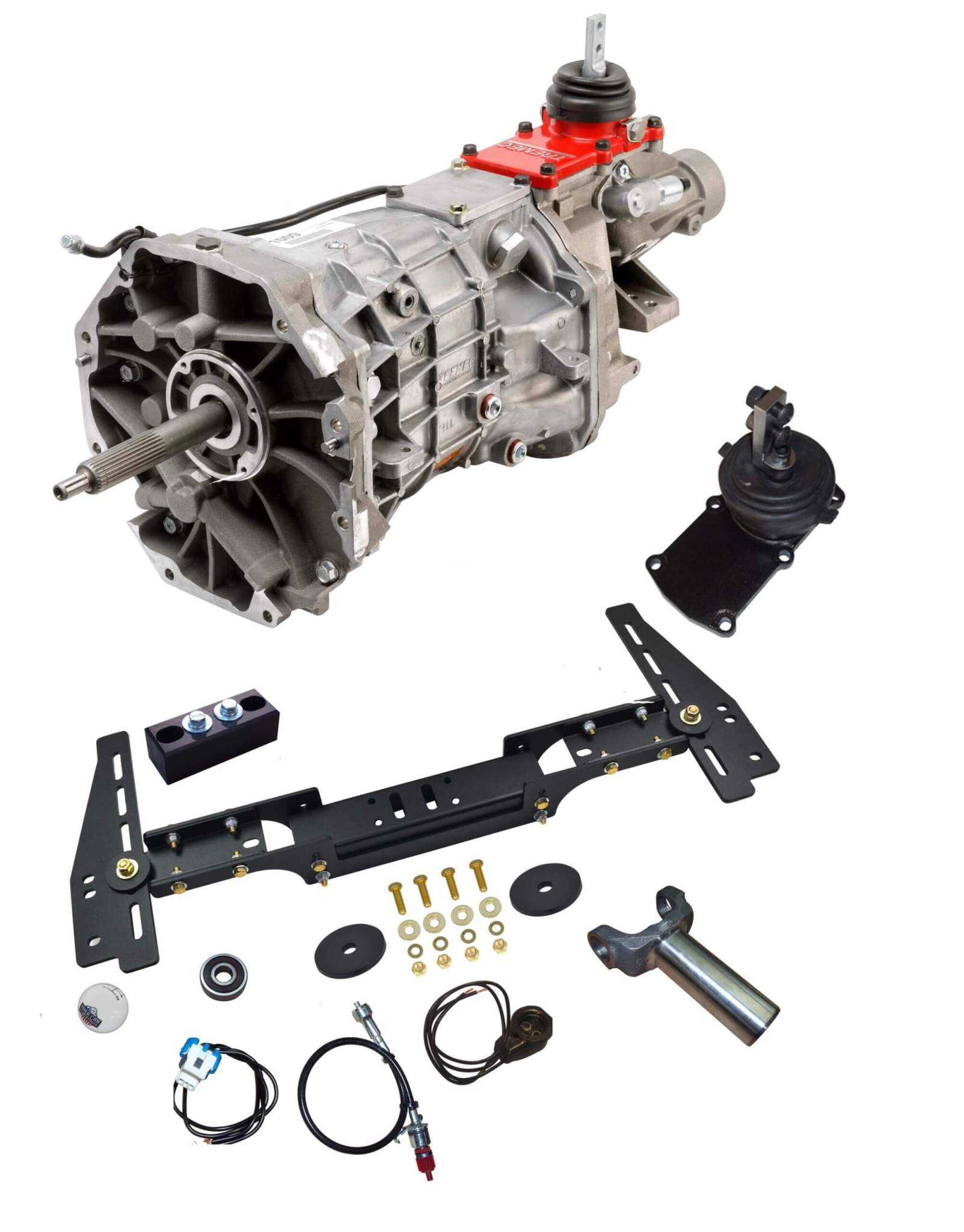

Kit includes:

  • AP Revolution Shifter Mechanism – Original 4-speed shift position
  • Seamless DOM Driveshaft Assembly – Race Balanced, Solid U-Joints
  • Driveshaft Slip Yoke – Cryogenically hardened steel
  • X-Factor Cross Member – Hot Pressed Aluminum, bolt-in
  • Transmission Mount – Polyurethane
  • Pilot Bearing – Stainless rollers, grease pre-pak
  • Reverse Light Harness – Weatherseal
  • Speedometer Conversion – Mechanical or Electronic
  • Shifter Knob
  • Round Stock Chrome Shifter Handle
  • Console Shift Pattern Plate
  • Modular Reverse Lock-out Harness
  • Modular Reverse Light Harness
  • Hardware, Instructions, Warranty
  • Transmission sold separately
  • NOTE: Kit does not normally require modifications to the car, unless you have raised the engine center line or use shorter than stock subframe mounts. 6-speeds are very tight on these cars.

Optional Parts:

  • Hydramax Hydraulic Clutch
  • Bell housing
  • Flywheel
  • Shifter


Weight: 43 lbs

Dimensions: W8" x H32" x L8"
