Bell Housing for SBC to 23-Degree Counter Rotated GM T5 Hydraulic only

SKU: BHCV-26018 Category:

QT SFI Bell Housing for SBC to 23-Degree Counter Rotated GM T5 Hydraulic only

$823.95

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

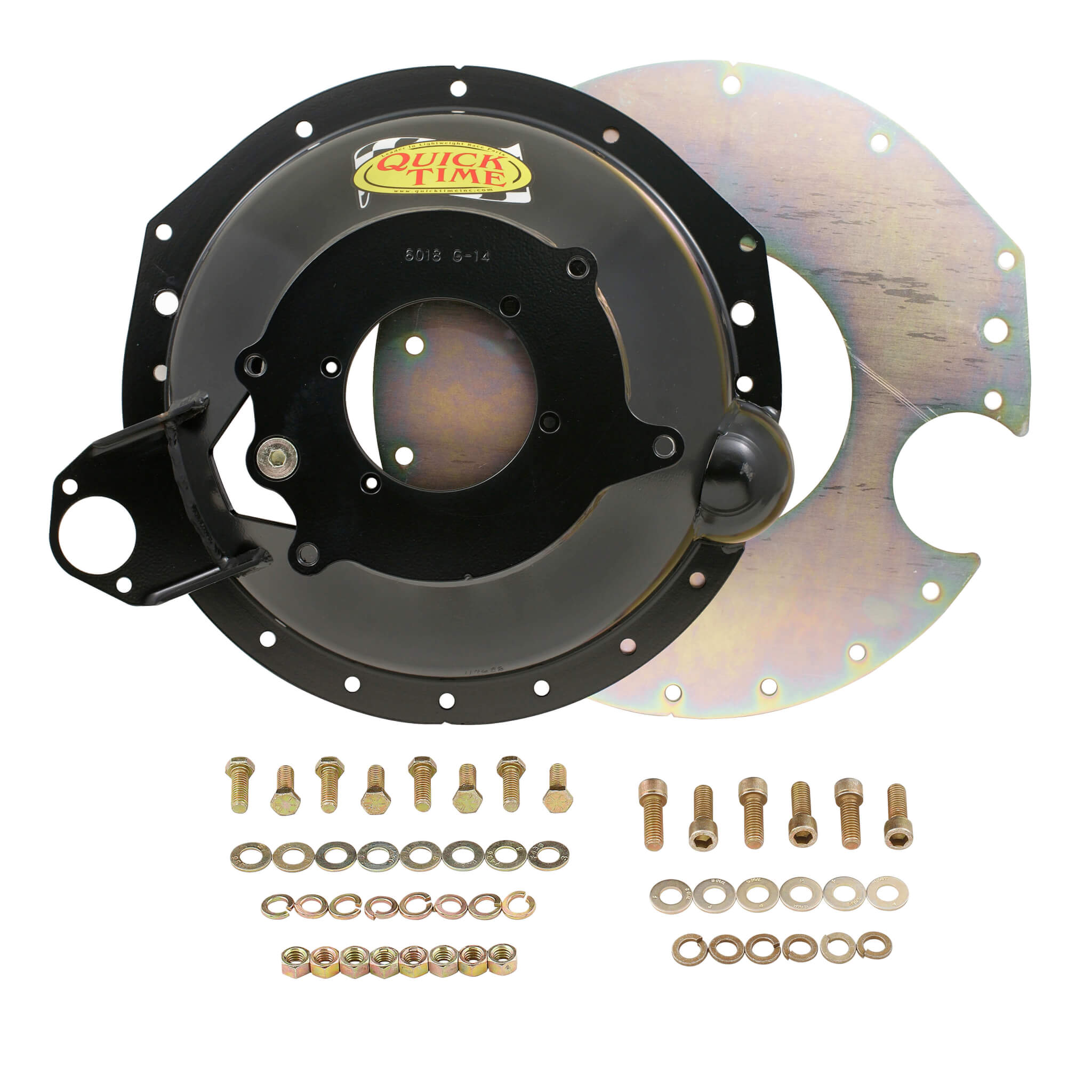

QT SFI Bell Housing for SBC to 23-Degree Counter Rotated GM T5. ….NOTE: 153t Flywheel Only, External Slave Hydraulic Applications Only

Built from high grade steel – Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • Full engine plate, pivot ball and grade 8 bolts included
  • Comes with bracket for external slave cylinder
  • SFI Certified @ 6.1
Brand Quick Time
Certification 6.1 SFI
Clutch Diameter 11
Clutch Operation Mechanical or Hydraulic
Emission Code 5
Engine Chevy Big Block
  Chevy LT1
  Chevy Small Block
Engine Plate RM-6023-C
Flywheel 153/168 Tooth
Height 6.290 inch
Product Type Bellhousing
SFI Certification 6.1
Trans Bore 4.687
Trans. Bore Diameter 4.687
Transmission Bert Racing
  Brinn Racing
  Falcon
  Jerico
  Muncie
  Richmond
  Saginaw
  T10
  T5 Chevy
  TKO 500/600 Chevy
Transmission Type Manual
Weight 22#

Weight: 35 lbs

Dimensions: W19" x H8" x L19"
