Bell Housing for TKO/Muncie/T-10/Richmond/Saginaw 153t Flywheel Mechnical or Hydraulic Slave

SKU: BHCV-26020 Category:

QT SFI Bell Housing for SBC to TKO/Muncie/T-10/Richmond/Saginaw

$566.95

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

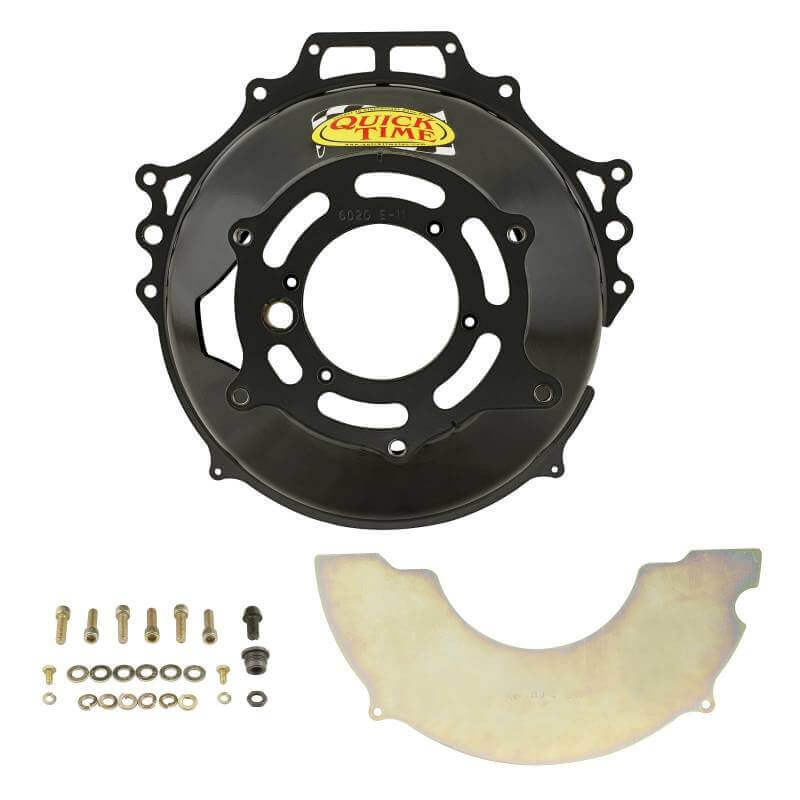

This bellhousing is designed for circle track, strip or street application. This bellhousing fits Small Block Chevy 265-400 CID & Big Block Chevy 396-454 CID engines to Muncie, Richmond, Chevy TKO, BW-T10. Fits 153 tooth flywheel and 10.5 in clutch. Is 6.29 in deep. Built from high grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. Transmission bore is 4.685 in. This bellhousing weighs 18 pounds. Pivot ball, block plate and Grade 8 hardware included. Note: Must use mini starter. Non S.F.I. approved.

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • For applications with stock shifter fork and throwout bearings
  • Muncie Richmond Chevy TKO BW-T10 Transmissions
  • Pivot ball, engine plate and grade 8 bolts included
  • Shifter fork not included
  • Cone Spun Not Stamped Or Rolled
  • Must use mini starter
Brand Quick Time
Certification None
Clutch Diameter 10.5
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Chevy Big Block
  Chevy Small Block
Engine Plate RM-6010-C
Finish Semi-gloss
Flywheel 153 Tooth
Height 6.290 inch
Material Steel
Product Type Bellhousing
SFI Certification Not SFI Certified
Trans Bore 4.687
Trans. Bore Diameter 4.687
Transmission Bert Racing
  Brinn Racing
  Falcon
  Jerico
  Muncie
  Richmond
  Saginaw
  T10
  T5 Chevy
  TKO 500/600 Chevy
Transmission Type Manual
Warranty Limited 90 Day Warranty
Weight 18#

Weight: 25 lbs

Dimensions: W19" x H8" x L18"
