Description

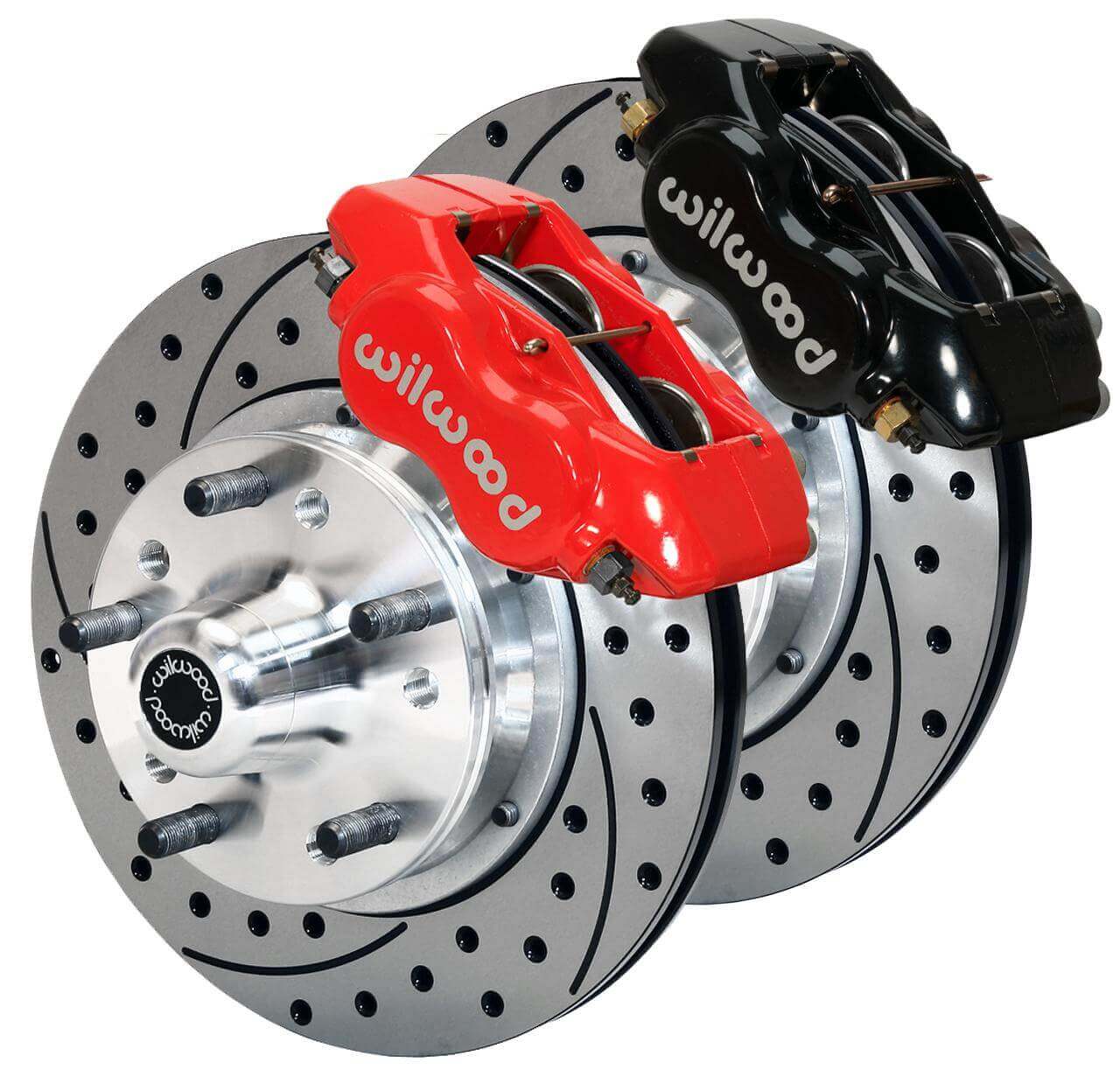

Forged Dynalite Pro Series Front Brake Kit
Wilwood’s new limited offset FDL Pro-Series Front Hub Kits for GM 1967-1969 F-Body and 1964-1974 A-Body vehicles offer disc brake upgrade solutions for both OEM Disc & Drum spindles.
Click here for the complete application fitment
We have completely redesigned our Pro Series line of brake kits using a larger 11″ rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit widens the track by only +.19″ from original drum brake position or narrows by -.31″ from the original disc brake rotor assembly. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15″ wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Installation requires purchase of additional brake lines shown below.
| Kit Summary | |
|---|---|
| OE Hub Offset: | +.19 |
| (Increase / Decrease Track Width) | |
| Spindle Type: | Drop Spindle Factory Disc Spindle Factory Drum Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 – Red Powder Coat |
| Rotor Diameter: | 11.00 |
| Min Wheel Diameter Req’d*: | 14 |
| *This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram | |
