Forged Dynalite Rear 12″ Brake Kit 5-lug Chevy C10 and Squarebody with integrated parking brake

SKU: N/A Category:

$1,103.86

-

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

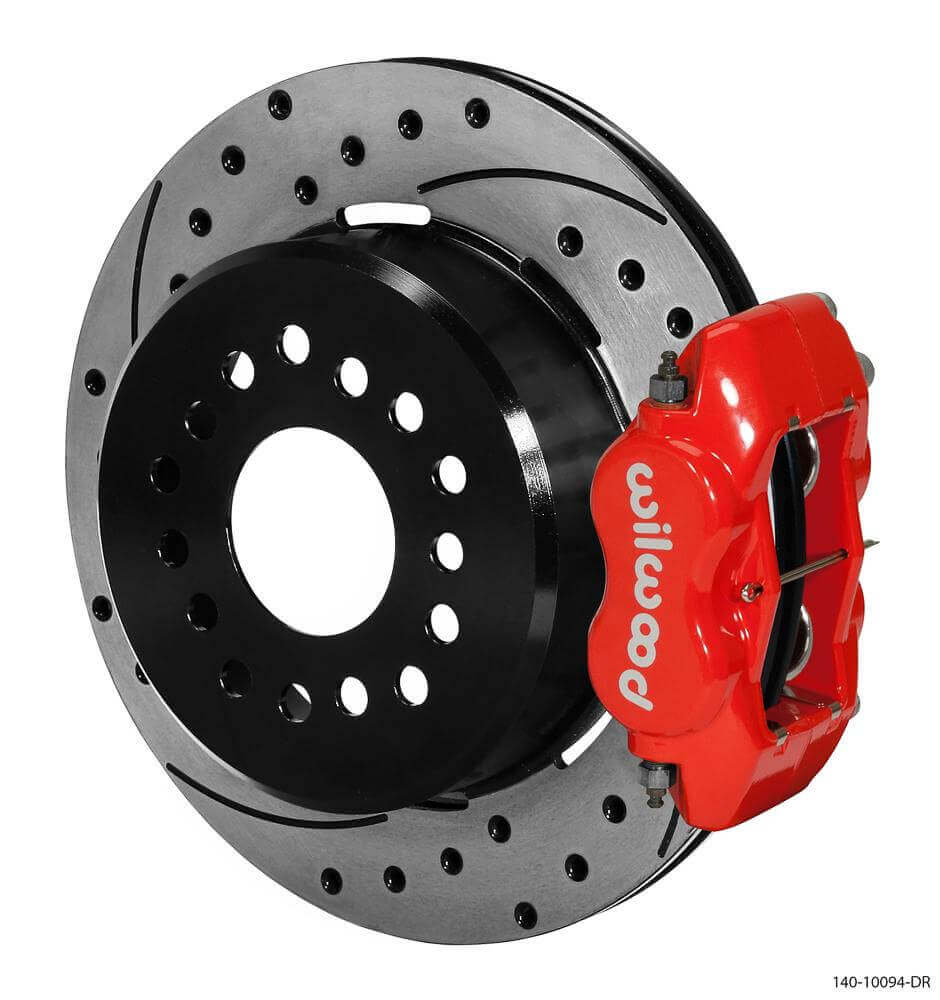

Forged Dynalite Rear Parking Brake Kit

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

1963-87 Chevy C10 and Squarebody- Note this is a 5-lug set up

Kit Summary
Rear End Axle: Large Chevy C10
Axle Offset: 2.42
Mount Type: Lug
Caliper Type: 4 – Black Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req’d*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

For more applications click here





Weight: 48 lbs

Dimensions: W24" x H24" x L24"

If you don't know what you need, call our technical sales staff at 931-646-4836
