Description

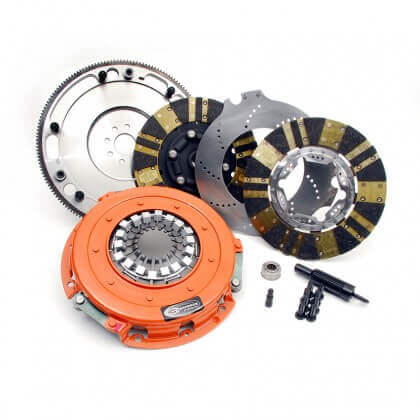

The Centerforce® DYAD DS 10.4″ twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. …
- Torque Capacity: 1300 – FT/LB
- 8-bolt crank/flywheel
- Disc Type Sprung Solid: Sprung
- Input Shaft Diameter: 1-1/8 – IN
- Input Spline Quantity: 26
- No complicated setup or adjustments required
- Fully dampened clutch system developed for vehicles with extreme power levels
- Ball bearing actuated pressure plate
- Patented multi-disc, floating disc and drive disc design
- Quiet, positive drive floater
- Smooth engagement and light pedal effort
- Holds 500 to 1300 ft/lbs of torque
- Precision balanced
- Superior longevity
- ARP fasteners
- Excellent driver control
- Specification card included!
