Centerforce Mustang Twin Disc DYAD Clutch Kit – 1-1/8″ 26 Spline (1996-2010 Mustang GT / Cobra / Mach-1 / 2007-2009 Shelby GT500) 8-bolt crank

SKU: 413114805 Categories: , ,

$1,549.95

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

Centerforce 413114805 Mustang Twin Disc DYAD Clutch Kit – 1/18″ 26 Spline  8-bolt crank (1996-2010 Mustang GT / Cobra / Mach-1 / 2007-2009 Shelby GT500)

The DYAD DS (Drive System) multi-disc clutch design has been developed to meet the needs of modern high-end vehicles. Today’s technology has allowed for engine torque levels up to 1300 ft /lbs and still be driven every day. Drivers need a clutch that can offer; smooth engagement, quiet operation, light pedal, and high-end holding capacity. The DYAD DS offers that and more!

  • No complicated setup or adjustments required
  • Fully dampened clutch system developed for vehicles with extreme power levels
  • Patented ball bearing pressure plate
  • Patented multi-disc floating disc and drive disc design
  • Quiet, positive drive floater
  • Smooth engagement and light pedal effort
  • High torque capacity up to 1300 ft/lbs at the flywheel
  • Precision balanced
  • Greater longevity
  • ARP fasteners
  • Excellent driver control
  • Comes preassembled for your convenience
  • Specification card included!
Part Number 04114805
Input Shaft Spline (Inches) 1-1/8-26
Size Metric 266.7
Size Inches 10.5
Ring Gear Tooth Count 164
Ring Gear O.D. 14.215
Counter Balance 0 IN/OZ

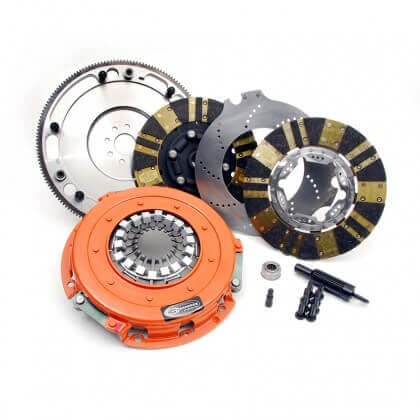

Includes Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, Pilot Bearing

NOTE:Requires 26 spline input shaft!!! All 96-2010 Mustangs come factory with 10 spline input shafts. 2011+ Mustang GT come factory 23 spline input shafts.

NOTE #2:Requires 8 bolt crank shaft. 96-04 Cobra’s/Mach 1 (Manual trans) and 2011+ Mustang GT all have factory 8 bolt crank shafts. Most 96-2010 Mustang GT’s have a 6 bolt, with the exception being SOME late 99-2000 Mustang GT’s that came with 8 bolt crank shafts. Verify crank shaft bolt pattern before placing order.

Weight: 51 lbs

Dimensions: W14" x H5" x L14"
