1963-67 Chevrolet Corvette C2 TKX 5-Speed System

Description

 Tremec TKX 5-Speed. Streamlined Case with 600 ft/lbs of torque capacity! No cutting the floor

TKX Gear Ratios

Wide Ratio – 3.27, 1.98, 1.34, 1.00, 0.72
Close Ratio – 2.87, 1.89, 1.28, 1.00, 0.68 OR 0.81 5th

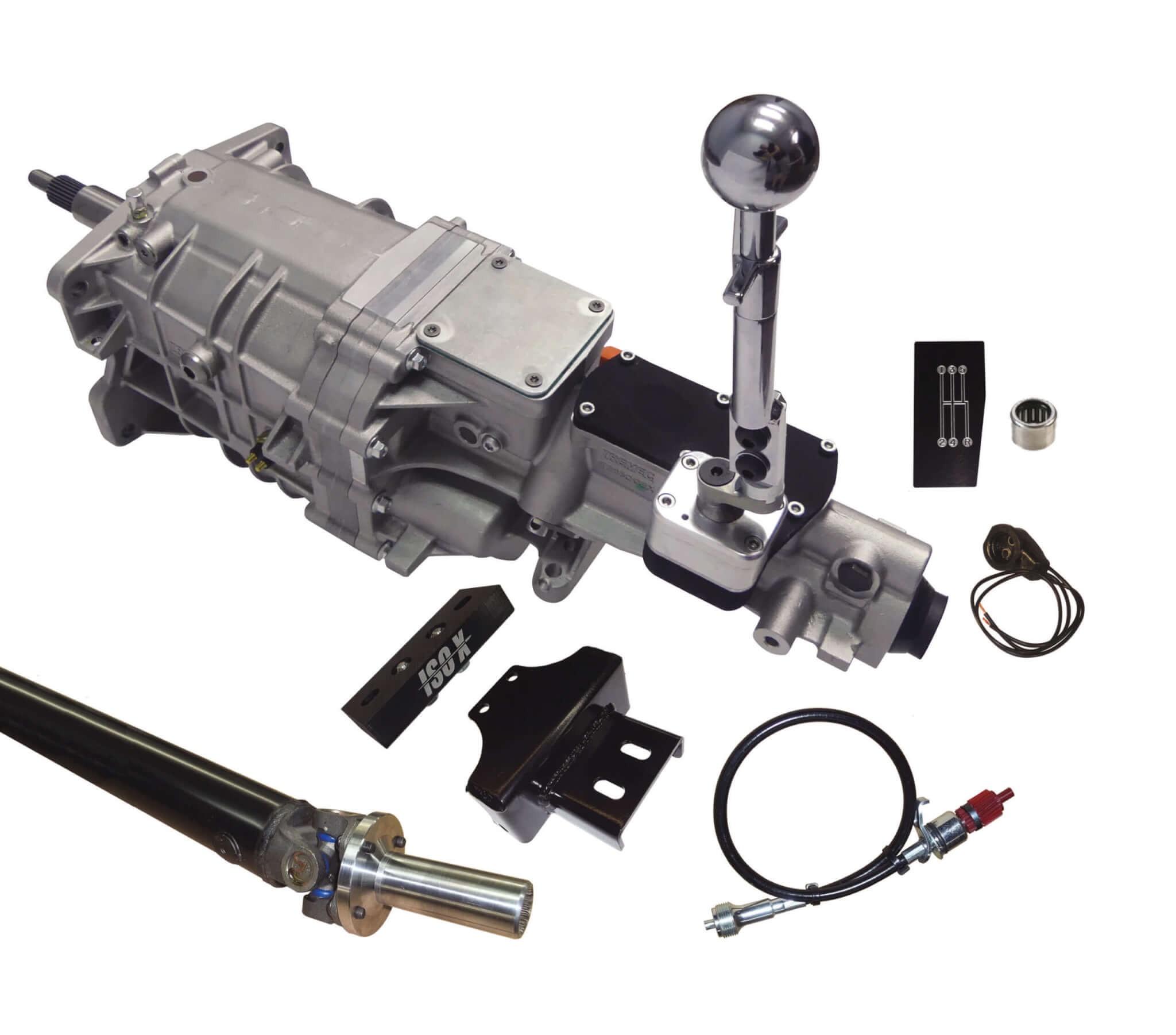

Kit includes:

• NEW Tremec TKX 5-Speed. Streamlined Case with 600 ft/lbs of torque capacity! No cutting the floor
• 8000 rpm shifting
• Pro-Fit Corvette Shifter Conversion – Original 4-speed shift position Looks STOCK!
• White Lightning Shifter Mechanism – Solid billet construction, bias adjustable
• Seamless DOM Driveshaft Assembly – Race Balanced, Solid U-Joints
• Billet Face Flange Yoke- Patented and exclusive to American Powertrain. Makes installing the driveshaft a breeze.
• Laser cut transmission Mounting Bracket – Bolt-in powder coated
• Transmission Mount – Polyurethane
• Pilot Bearing – Stainless rollers, grease pre-pak
• Reverse Light Harness – Weatherseal
• Speedometer Conversion – Mechanical or Electronic
• Console Shift Pattern Plate
• Hardware, Instructions, Warranty

Optional upgrades:

1. Hydramax Hydraulic Clutch System
2. Flywheel and clutch system
3. Bell housing
4. Corvette OE style shifter
