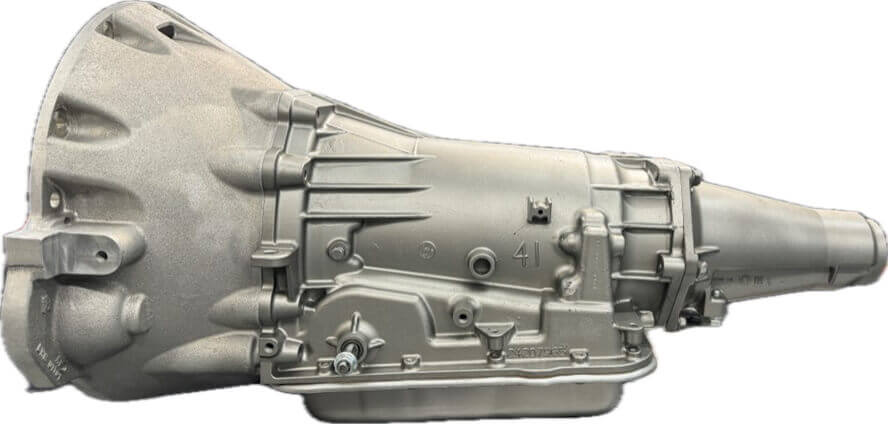

Gearstar MOPAR 4L65E Automatic Transmission Level 3 500hp for Small Block Mopar

SKU: ATCH-10002 Categories: ,

Includes Truck Freight shipping cost for lower 48 states only

Must be shipped to a truck dock

*2 Week Lead Time on all Automatic Orders*

$5,945.00

-

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

Gearstar  4L65E two piece case two wheel drive 4 speed overdrive automatic transmission with small block Mopar bellhousing. Level 3 500hp/500lbft 2600-3200 stall. Pricing Includes torque converter, fluid and shipping. ECU Controller required. Transmission cooler required.

Comes with a 3 year warranty!

Built to order

Please allow 2-3 weeks for shipping

Includes the following upgrades:

Horse Power: 500
(Up to 500 ft lbs Torque)

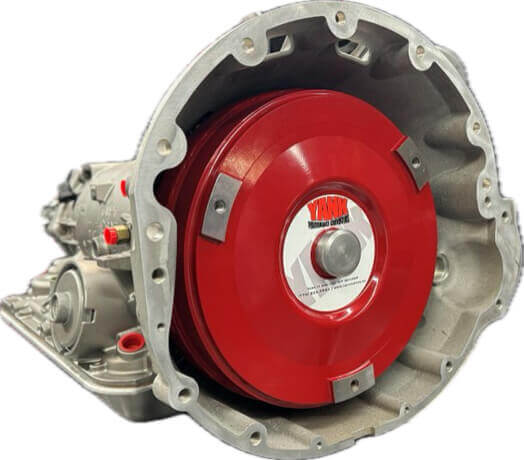

Converter: 12” High Performance Furnace Brazed with Flanged Hub and Carbon Fiber Clutch
Stall: 2600-3200
Mopar Small Block Bellhousing

Master Overhaul Kit with Alto Hardened Steels
Raybestos Stage 1 Frictions
Filter
New 29 Element Dual Cage Sprag
High Capacity Upgraded Pump Assembly
New Hardened Pump Rings
A New 13 Vane Pump Rotor
New Vanes
New Stator
.500 Boost Valve
Pressure Regulator Valve
Updated Boost Valve
Transgo Reprogramming Shift Kit with Shift Command
Bushing Kit
New Thrust Washers
Complete Torrington Bearing Kit
Heavy Duty Hardened Sun Shell
Heavy Duty Expanded Capacity Input Drum with Reinforcing Sleeve
New Low/ Rev Heavy Duty Spring and Roller
High Rev Spring Kit

Corvette Servo
Wide Carbon-Fiber 2-4 Band
New Valve Body Spacer Plate
Fill Tube & Stick
New Shift Solenoids
New EPC Solenoid
A New PWM Solenoid
New 3/2 Solenoid
New Manifold Pressure Switch
A New Internal Wiring Harness W/New TCC Solenoid
New Electronic Speed Sensor
Transmission Mount
New Original Equipment Steel Transmission Pan

4L65E, among others, was designed to replace the TH350. It’s a solid automatic transmission that is similar to the 4L60E, only with far more strength and power. GM 4L65E transmissions were designed to handle more torque, but has an identical looking case to its predecessor. However, the 4L65E is not compatible with the 4L60E because it uses a different torque converter and input shaft. If you plan on upgrading to the 4L65E transmission, you will need a converter which is included for each trans we sell.

How the 4L65E Transmission Has Evolved

The 4L65E was born because structural improvements needed to be made off older transmissions, such as the 4L60E. The 4L65E transmission is stronger, has better performance, a hardened sun shell and input shaft, and a five-pinion rear planetary. Hot rodders appreciate having more pinion gears because the load is spread out, and the transmission can handle more torque. Additionally, the 4L65E features a deeper pan for more fluid and a 3-4 clutch.

Custom-Built GM 4L65E Transmissions

The areas where four-speed automatics shine is their strength, abundance, and opportunities for upgrade. Whether you’re interested in upgrading your current 4L60E transmission or are starting from scratch, Gearstar is happy to help! We custom build high performance automatic GM 4L65E transmissions using American made parts. When you place your order, only one highly qualified technician will work on your transmission, ensuring that everything is given the appropriate attention.

We can also build you a custom kit with crossmember and more for your application. Give us a call at 931-646-4836
