Description
Magnum Close Ratio 6-Speed for GM, 700ft-lb constant load rated, unmodified, 26-spline input shaft, 4616 chromoly gears and shafts, one-piece counter shaft, triple cone synchros,
1st 2.66, 2nd 1.78, 3rd 1.30, 4th 1:1, 5th .80 and 6th .63 More Gear Ratios Available
- Close Ratio version for high performance street and road racing
- 700 lb-ft. of torque capacity
- Reasonably light at 135 lbs. dry
- Multiple shifter locations & dual speedo pickups for unmatched versatility
- Choice of two different gear ratio sets with unique double overdrive ratios
- Incredibly short, extremely low-effort shift throws, with crisp, precise engagement
- Modern OE supercar technology for the ultimate pro-tourers, road-racers, and more.

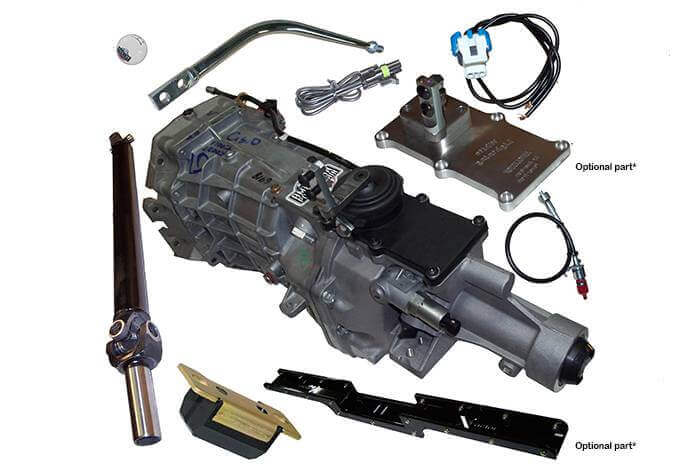

Kit includes:
- TREMEC MAGNUM 6-SPEED
- AP Revolution Shifter Mechanism – Original 4-speed shift position
- Seamless DOM Driveshaft Assembly – Race Balanced, Solid U-Joints
- Driveshaft Slip Yoke – Cryogenically hardened steel
- Transmission Mount – Polyurethane
- Pilot Bearing – Stainless rollers, grease pre-pak
- Modular Reverse Light Harness
- Modular Reverse Lock-out Harness
- Speedometer Conversion – Mechanical or Electronic
- Transmission Hump – Tapered and rolled steel
- Shifter Knob
- Hardware, Instructions and exclusive 2 year warranty
NOTE: White Lightning shifter upgrade available. Kit compatible with OE cross member.
Optional parts:
- Crossmember
- Bell housing
- Hydramax Hydraulic Clutch system
- Flywheel and clutch
- Shifters
