1980-82 C3 Corvette TKX 5-Speed Kit

SKU: PFGM-20009 Category:

ProFit TKX Installation Kit for 1980-82 C3 Corvette



Prices start at $3400 for a basic kit with transmission. Fill out the RFQ or call for a custom quote.

Request A Quote

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

NEW Tremec TKX 5-Speed. Streamlined Case with 600 ft/lbs of torque capacity! No cutting the floor

TKX Gear Ratios

Wide Ratio – 3.27, 1.98, 1.34, 1.00, 0.72
Close Ratio – 2.87, 1.89, 1.28, 1.00, 0.68 OR 0.81 5th

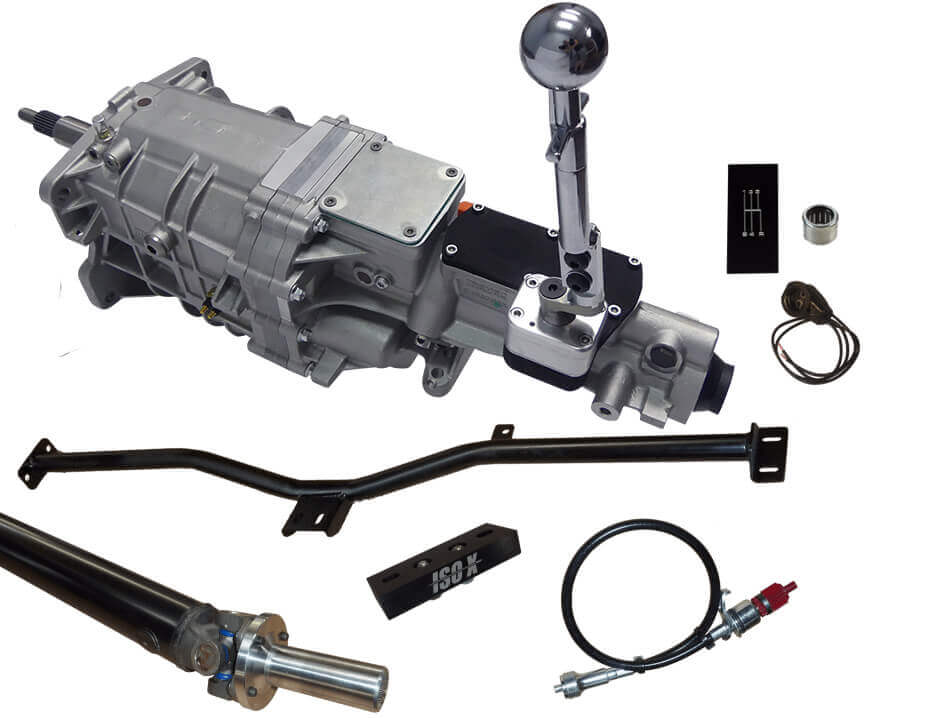

Kit includes:

  • 8000 rpm shifting
  • Pro-Fit Corvette Shifter Conversion – Original 4-speed shift position Looks STOCK!
  • White Lightning Shifter Mechanism – Solid billet construction, bias adjustable
  • Seamless DOM Driveshaft Assembly – Race Balanced, Solid U-Joints
  • Billet Face Flange Yoke- Patented and exclusive to American Powertrain. Makes installing the driveshaft a breeze.
  • Laser cut transmission Mounting Bracket – Bolt-in powder coated
  • Transmission Mount – Polyurethane
  • Pilot Bearing – Stainless rollers, grease pre-pak
  • Reverse Light Harness – Weatherseal
  • Speedometer Conversion – Mechanical or Electronic
  • Console Shift Pattern Plate
  • Hardware, Instructions, WarrantyAvailable TKX gear ratios

Optional upgrades:

  1. Hydramax Hydraulic Clutch System
  2. Flywheel and clutch system
  3. Bell housing
  4. Corvette OE style shifter

Weight: 24 lbs

Dimensions: W4" x H15" x L15"
