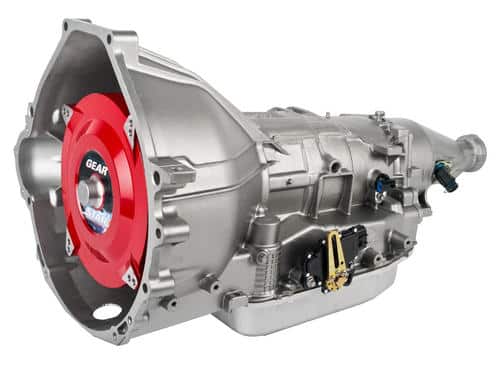

Gearstar FORD 4R70W Automatic Transmission Level 2 400hp

SKU: ATFO-10001 Categories: ,

Request A Quote


If you don't know what you need, call our technical sales staff at 931-646-4836


  • Horse Power: 400
    (Up to 400 ft-lbs Torque)
    Converter: 12” Heavy Duty High Performance with Lock-Up
    Stall: 1600-2400

    Available with 3-Bolt or 2-Bolt Starter Bellhousing

  • Master Overhaul Kit with New Steel Plates
    Transgo Reprogramming Shift Kit
    Raybestos Frictions
    New Bearing Kit
    New Bushing Kit
    Reverse Drum with Mechanical Diodes
    New Low Spring & Roller
    Alto Red Eagle Wide Overdrive Band
    High Capacity 4 Plate Intermediate Clutch
    High Capacity Direct Clutch
    Updated 3rd Accumulator Piston
    Extra Capacity Servo
    Heavy Duty Remanufactured Pump
    OE Pan
    Transmission Mount
    Custom 360 degree Adjustable Shift Linkage Arm

    Curious to know more about Ford 4R70W transmissions? This overdrive transmission is an updated version of the AOD transmission that first appeared in the 1980s. The auto trans has earned itself a positive reputation for its heavy duty performance, low gear ratios, and budget friendly price point. Let’s learn more about the 4R70W transmission, and why this may be the perfect fit for your vehicle.

    Which Vehicles Use Ford 4R70W Transmissions?

    This auto trans is similar to the Ford AODE. It’s slightly different than the AODE, because it has a lower first and second gear. It also uses a mechanical diode instead of a roller clutch. These improvements allow this high-performance transmission to have added durability and a lower speed acceleration.

    Ford 4R70W transmissions are used in popular vehicles such as F-150s, Lincoln Town Cars, and Mercury Cougars. This four-speed automatic overdrive transmission was built by Ford Motor Company, with the “4” representing four speeds, the “R” standing for “R”eal wheel driver, “70” torque and “W”ide gear ratios. However, you can also use this auto trans in four-wheel drive in combination with a transfer case.

    How the 4R70W Transmission Stands Up to Rugged Use

    This high-performance auto trans was released in 1993, and it has been used in a wide range of vehicles since this point in time. Probably the best vehicle for this transmission is the Ford F-150. F-150s have been some of America’s best-selling vehicles, thanks to its versatility and good looks. F-150s are available in both two-wheel and four-wheel drive configurations, along with the option to get a short or long bed.

    While some people purchase F-150s as their everyday vehicle, many use them for work-related jobs. This means that the trucks are often overused and overworked, taking a toll on the truck and its transmission. Fortunately, the 4R70W gives the F-150s and other vehicles their fierce and rugged reliability.


We can also build you a custom kit with crossmember and more for your application. Give us a call at 931-646-4836

Weight: lbs

Dimensions: W" x H" x L"
