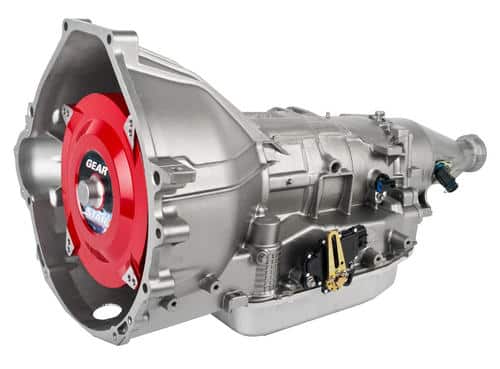

Gearstar FORD 4R70W Automatic Transmission Level 3 500hp

SKU: ATFO-10011 Categories: ,

Request A Quote


If you don't know what you need, call our technical sales staff at 931-646-4836


Horse Power: 500
(Up to 450 ft-lbs Torque)
Converter: 10” Custom Built Billet with Lock-Up
Stall: 2600-3200

Available with a 2-bolt or 3-bolt bellhousing

Master Overhaul Kit with Alto Hardened Steels
Raybestos Stage I Frictions
Transgo Reprogramming Shift Kit with Shift Command
New electronics – includes updated EPC, Shift Solenoids, Lock Up Solenoid, Internal Wiring Harness, Output Sensors
Complete Torrington Bearing Kit
New Bushing Kit
New Reverse Band
Alto Red Eagle Wide O.D. Band
High Capacity 4 Plate Intermediate Clutch
Direct Clutch Pack (8 Frictions)
Rev. Drum w/ Heavy Duty Mechanical Diode
Updated Sun Shell and Gear
New Low Spring and Roller
High Capacity Pump Assembly
Expanded Capacity Overdrive Servo
Updated O.D. Servo Pin
Updated 3rd Accumulator Piston
Transmission Mount
Custom 360 degree Adjustable Shift Linkage Arm

  • Which Vehicles Use Ford 4R70W Transmissions?

    This auto trans is similar to the Ford AODE. It’s slightly different than the AODE, because it has a lower first and second gear. It also uses a mechanical diode instead of a roller clutch. These improvements allow this high-performance transmission to have added durability and a lower speed acceleration.

    Ford 4R70W transmissions are used in popular vehicles such as F-150s, Lincoln Town Cars, and Mercury Cougars. This four-speed automatic overdrive transmission was built by Ford Motor Company, with the “4” representing four speeds, the “R” standing for “R”eal wheel driver, “70” torque and “W”ide gear ratios. However, you can also use this auto trans in four-wheel drive in combination with a transfer case.

    How the 4R70W Transmission Stands Up to Rugged Use

    This high-performance auto trans was released in 1993, and it has been used in a wide range of vehicles since this point in time. Probably the best vehicle for this transmission is the Ford F-150. F-150s have been some of America’s best-selling vehicles, thanks to its versatility and good looks. F-150s are available in both two-wheel and four-wheel drive configurations, along with the option to get a short or long bed.

    While some people purchase F-150s as their everyday vehicle, many use them for work-related jobs. This means that the trucks are often overused and overworked, taking a toll on the truck and its transmission. Fortunately, the 4R70W gives the F-150s and other vehicles their fierce and rugged reliability.


We can also build you a custom kit with crossmember and more for your application. Give us a call at 931-646-4836

Weight: lbs

Dimensions: W" x H" x L"
