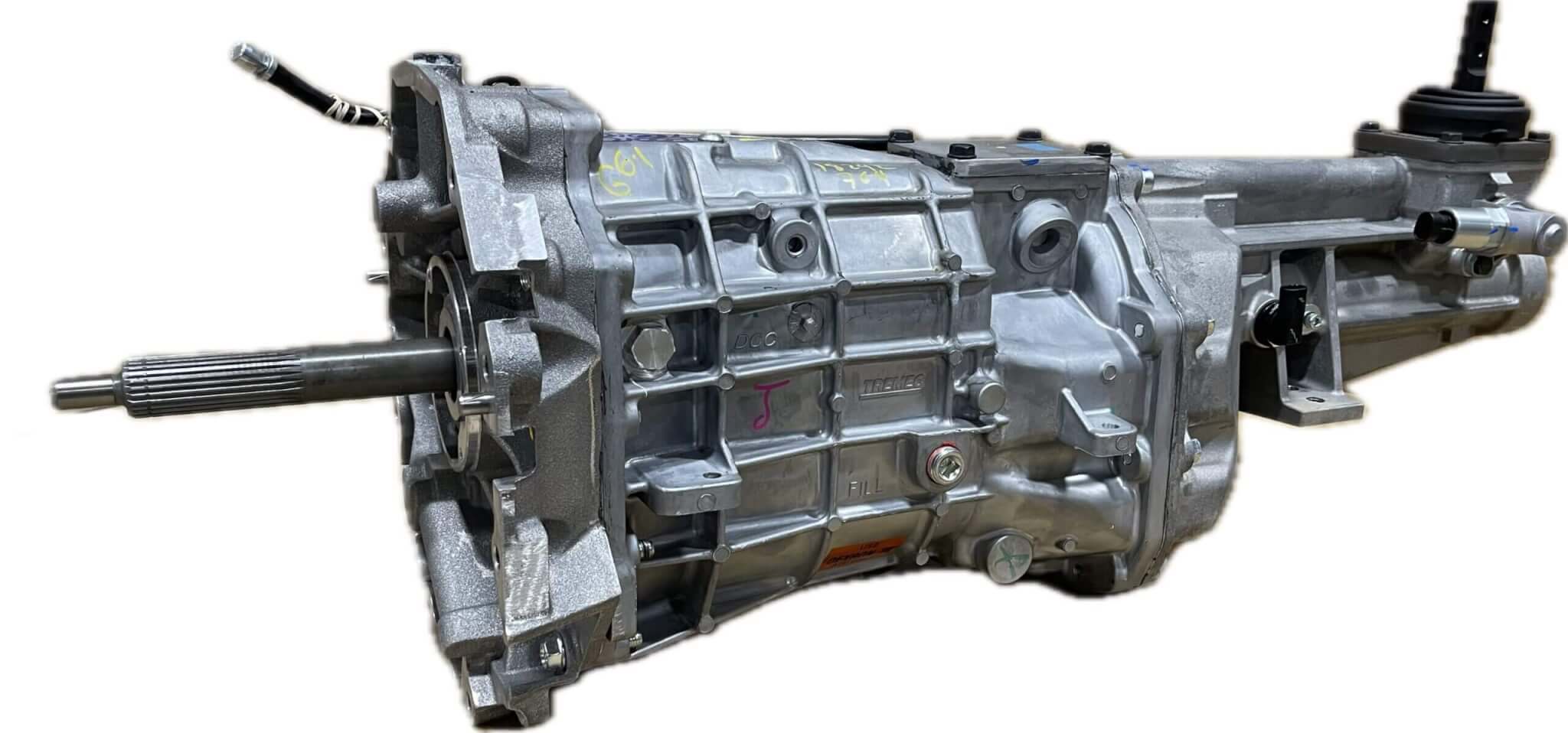

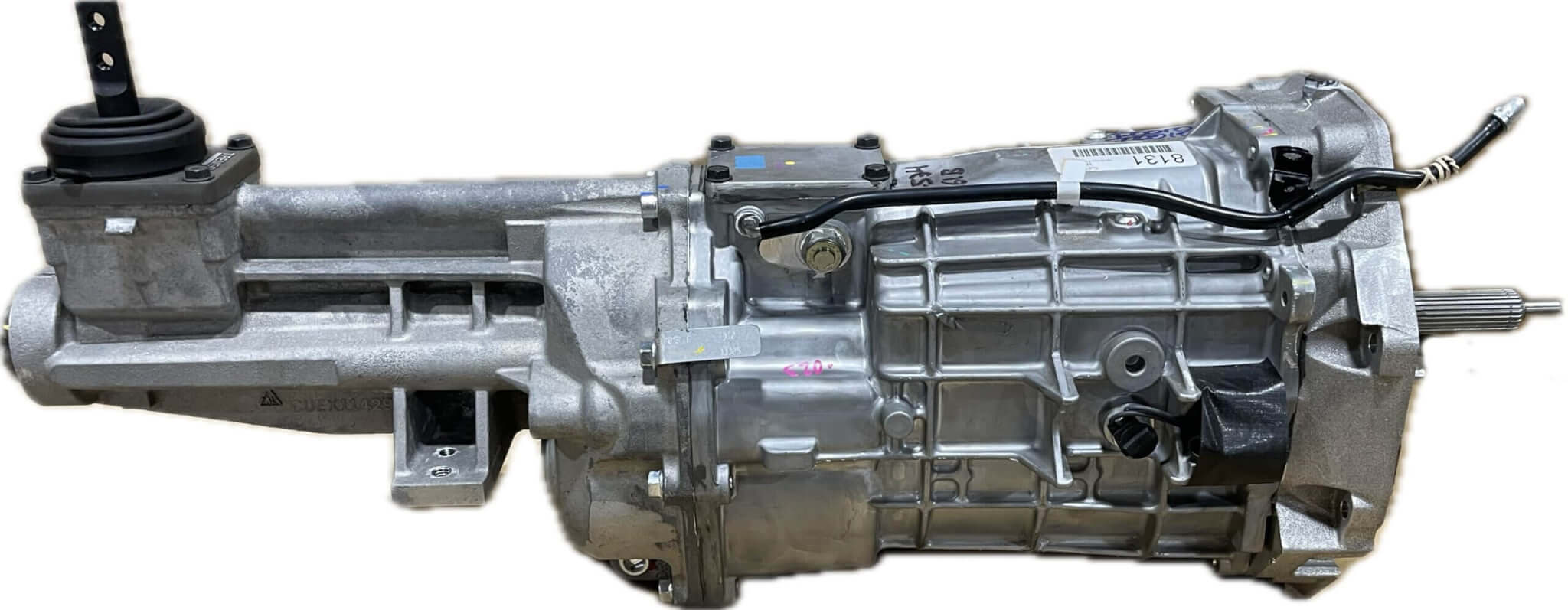

Tremec GM MAGNUM XL 6-Speed 2.66 First Gear .63 Overdrive TUET18131



$3,695.00

-

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

GM MAGNUM XL 6-Speed transmission quick launch 2.66, 1.78, 1.30, 1:1, .80, .63

Like the original Magnum, the GM Magnum XL is an aftermarket version of the celebrated TR-6060, which serves as factory equipment in numerous Detroit-based muscle and sports cars. However in order to accommodate the rearward shifter location of modern performance vehicles, the XL’s unique extension housing moves the shifter over eight inches back from the original Magnum’s most rearward location. In addition, to keep NVH down to daily-driver acceptable levels, the XL is equipped with a unique shift isolator that provides an astonishing blend of dampening quality and precision shift feel. In the NVH (noise, harness and vibration)-sensitive world of modern automobile manufacturing, bolt-on ‘semi-remote’ shifters are often used on manual transmissions to isolate undesirable harmonics from the cabin of an otherwise quiet factory application. While they perform this function well, the trade-off is heavily compromised shift quality in high-performance or competitive driving environments. TREMEC’s GM Magnum XL 6-speed solves this problem with a unique extended-length tail housing that provides a rigid direct-mount shifter for vastly improved performance and lightning quick shifts.

GM Magnum XL is rated at 700 lb-ft. of torque, supports 7800 rpm shifts and is available in two gear ratio configurations:

GM Magnum XL
Part Number 1st 2nd 3rd 4th 5th 6th Rev
TUET18131 2.66 1.78 1.30 1.00 0.80 0.63 2.90
TUET18132 2.97 2.10 1.46 1.00 0.80 0.63 2.90

Weight: 135 lbs

Dimensions: W21.0000" x H19" x L46"
