Bell Housing for Buick/Olds/Pontiac, Compatible with OE Mechanical Linkage or Hydraulics Trans: Muncie, Richmond, Saginaw, BW T-10, GM TKX, TKO 500-600 & Jerico 4-5 Speed

SKU: BHPO-28070 Category:

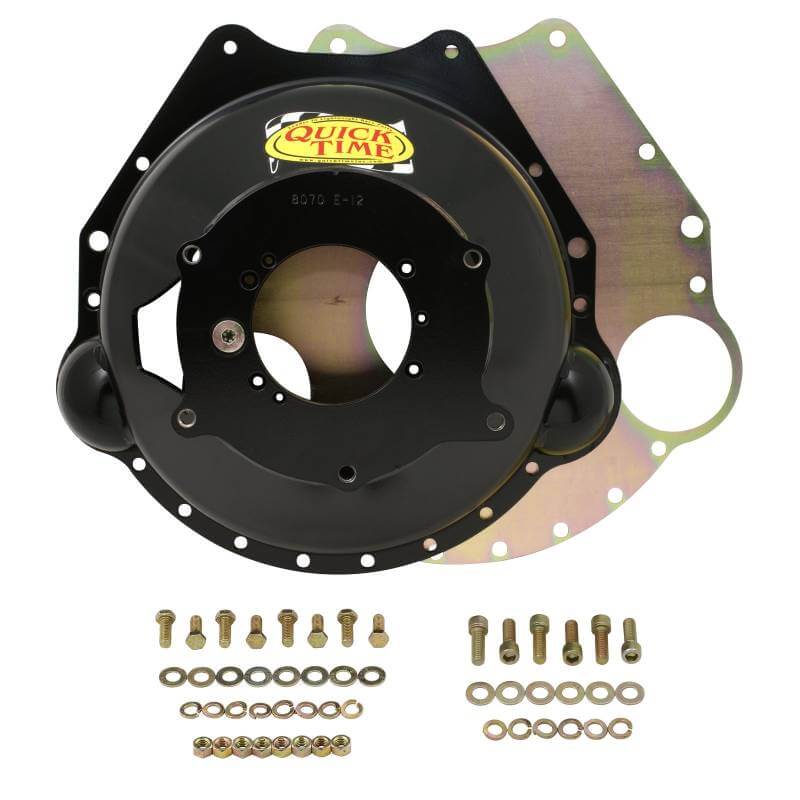

QT SFI Bell Housing for Buick/Olds/Pontiac, Compatible with OE Mechanical Linkage or Hydraulics
Trans: Muncie, Richmond, Saginaw, BW T-10, GM TKX, TKO 500-600 & Jerico 4-5 Speed

$1,019.95

-

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

QT SFI Bell Housing for Buick/Olds/Pontiac Trans: Muncie, Richmond, Saginaw, BW T-10, GM TKX, TKO 500-600 & Jerico 4-5 Speed Compatible with OE Mechanical Linkage or Hydraulics and 160/166t Flywheel, dual side starter pockets. Includes full motor plate and hardware. 6.1SFI Certified at 85,000PSI

This bellhousing is designed for street, strip and circle track applications. Built from high quality grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. This bellhousing fits all V8 Buick, Olds, and Pontiac engines to Muncie, Richmond, GM TKX, TKO, BW T-10 transmissions. The 6.29 in deep bellhousing clears 166 tooth flywheel with 11 in clutch and only weighs 20 pounds. This American made bellhousing includes fork bracket, block plate and Grade 8 hardware. S.F.I. 6.1 certified. Other applications available.

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • Fits V8 Buick Olds Pontiac Engines
  • S.F.I. 6.1 Certified
  • 6.29 In Deep
  • Fit 166 Tooth Flywheel
  • Clears 11 In Clutch
  • Fits Most Manual Transmissions
  • Weighs 20 Lbs.
  • Hardware Included
    Brand Quick Time
    Certification 6.1 SFI
    Clutch Operation Hydraulic
    Color Black
    Emission Code 5
    Engine Buick V8
      Oldsmobile V8
      Pontiac V8
    Engine Plate RM-8070-C
    Flywheel 166 Tooth
    Height 6.290 inch
    Material Steel
    Product Type Bellhousing
    Trans Bore 4.687
    Transmission Bert Racing
      Brinn Racing
      Falcon
      Jerico
      Muncie
      Richmond
      Saginaw
      T10
      T5 Chevy
      TKX TKO 500/600 Chevy
    Transmission Type Manual
    Warranty Limited 90 Day Warranty
    Weight 20#



Weight: 34 lbs

Dimensions: W22" x H9" x L20"
