Bell Housing for Ford 289/302/351W/351C to Ford Magnum T56

SKU: BHFO-28031 Category:

QT SFI Bell Housing for Ford 289/302/351W/351C to Ford Magnum T56

$680.95

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

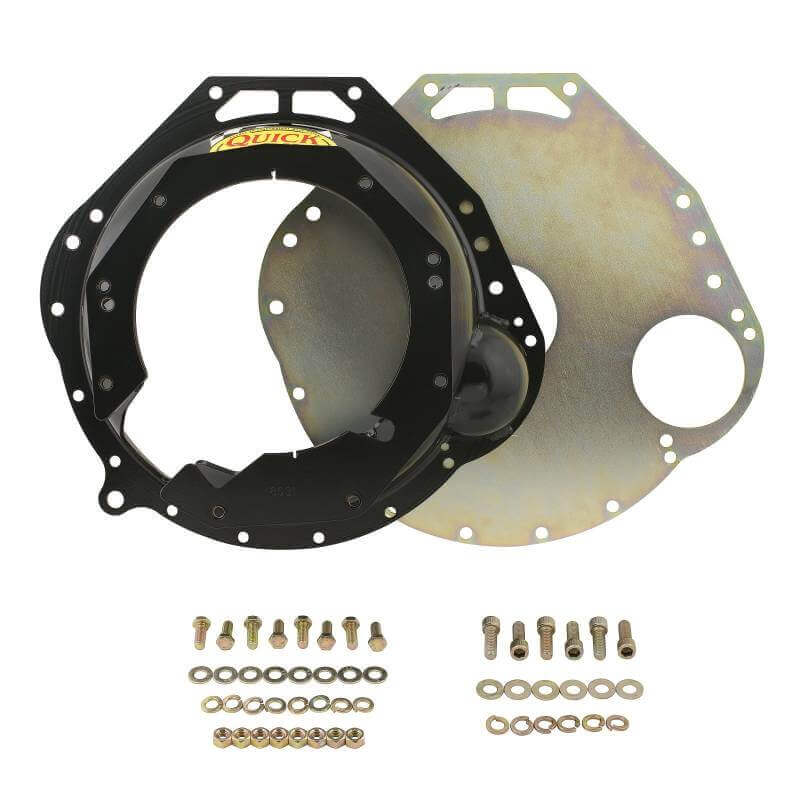

The Quick Time RM-8031 bellhousing connects small block Ford engines to T-56 Ford transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The clutch fork opening on this bellhouisng is at the 7:00 position. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • Designed To Use Hydraulic Bearing Or 94+ Mustang clutch fork
  • Fits Up To 157 Tooth Flywheel And 10.5 in Clutch
  • Utilizes OEM Style Starter Attachment / Placement
  • Transmission Bore T56 Ford
  • Bellhousing Depth 5.34 In
  • Weight 20 Lbs
  • Include Grade 8 Hardware



Brand Quick Time
Certification 6.1 SFI
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Ford 289
  Ford 302
  Ford 351C
  Ford 351W
  Ford Small Block
Engine Plate RM-8031-C
Finish Semi-gloss
Flywheel 157 Tooth
Height 5.332 inch
Material Steel
Product Type Bellhousing
Trans Bore N/A
Transmission T56 Ford
Transmission Type Manual
Warranty Limited 90 Day Warranty
Weight 20#

Weight: 31 lbs

Dimensions: W19" x H8" x L19"
