Bell Housing for Ford 289/302/5.0/351C/W to Ford TKO, TKX and T5

SKU: BHFO-26060 Category:

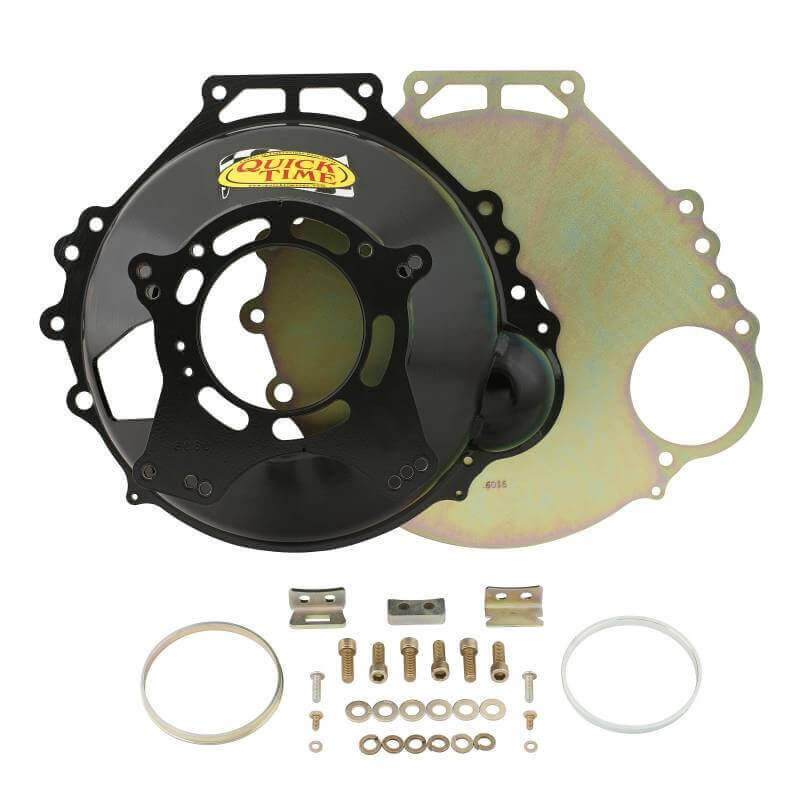

Quick Time Steel Bell Housing for Ford 289/302/5.0/351C/W to Ford TKO/T5

$969.95

-

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

QT Steel Bell Housing for Ford 289/302/5.0/351C/W to Ford TKO/T5 ….NOTE: Not SFI approved. Includes pivot stud, linkage brackets for cable AND diaphragm linkages.

The Quick Time RM-6060 bellhousing connects small block Ford engines to a Ford TKO 500-600, TR3550 or T5 Mustang (standard length input shaft) transmission. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • Designed For Ford OE Fork Or Cable Style Bearing
  • Fits Up To 157 Tooth Flywheel And 10.5 in Clutch
  • Utilizes OEM Style Starter Attachment / Placement
  • Transmission Bore Diameter 4.85 In / 4.91 In
  • Bellhousing Depth 6.925 In
  • Weight 22 Lbs
  • Include Grade 8 Hardware
  • Made In The USA
Brand Quick Time
Certification None
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Ford 289
  Ford 302
  Ford 351C
  Ford 351W
  Ford Small Block
Engine Plate RM-6016
Finish Semi-gloss
Flywheel 157 Tooth
Height 6.925 inch
Material Steel
Product Type Bellhousing
Trans Bore 4.85 / 4.91 / 5.12
Transmission T5 Mustang
  TKO 500/600 Ford
  TR3550
Transmission Type Manual
Warranty Limited 90 Day Warranty
Weight 22#

Weight: 32 lbs

Dimensions: W18" x H8" x L19"
