CHEVY LS AND LATE MODEL LT TO LS T-56 TRANSMISSION – BELLHOUSING

SKU: BHCV-28020 Category:

QT SFI Bell Housing for LS/LQ Engine to GM Magnum

$680.95

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

QT SFI Bell Housing for LS/LQ/LT Engine to GM Magnum, includes motor plate, hardware, 6.1SFI Certified at 85,000psi

Designed to fit Gen 3 and 4 LS and Late Model LT1/4 (2014 – Current) Engines utilizing an LS T-56 Transmission.

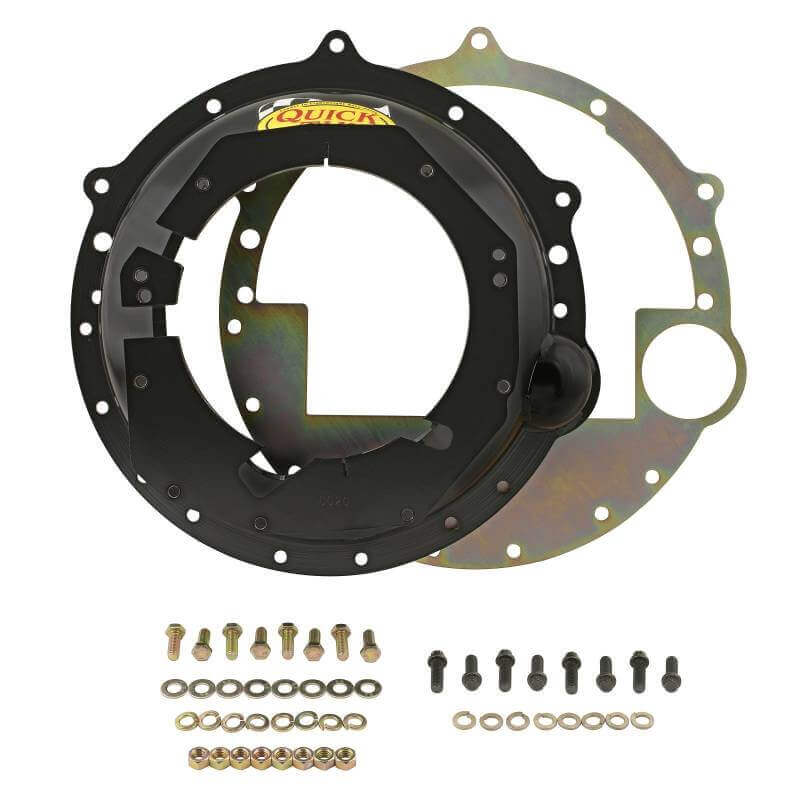

The Quick Time RM-8020 bellhousing connects Gen 3 and 4 LS and Late Model LT1/4 (2014 – Current) engines to T-56 Chevy LS, and T56 Magnum transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • Designed For Use With Hydraulic Throw Out Bearing
  • Fits Up to A 168 Tooth Flywheel And 11 in Clutch
  • Utilizes OEM Style Starter Attachment / Placement
  • Bellhousing Depth 5.555 In
  • Weight 20lbs
  • S.F.I. 6.1 Certified
  • Made In The USA
Brand Quick Time
Certification 6.1 SFI
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Chevy LS
  Chevy LT1
  Chevy LT4
Engine Plate RM-6034-C
Finish Semi-gloss
Flywheel 168 Tooth
Height 5.500 inch
Material Steel
Product Type Bellhousing
Trans Bore N/A
Transmission T56 Chevy LS
  T56 Magnum
Transmission Type Manual
Warranty Limited 90 Day Warranty
Weight 20#

Weight: 20 lbs

Dimensions: W19" x H8" x L19"
