Bell Housing for LS T56/GM Magnum with Mechanical Linkage

SKU: BHCV-26023PB Category:

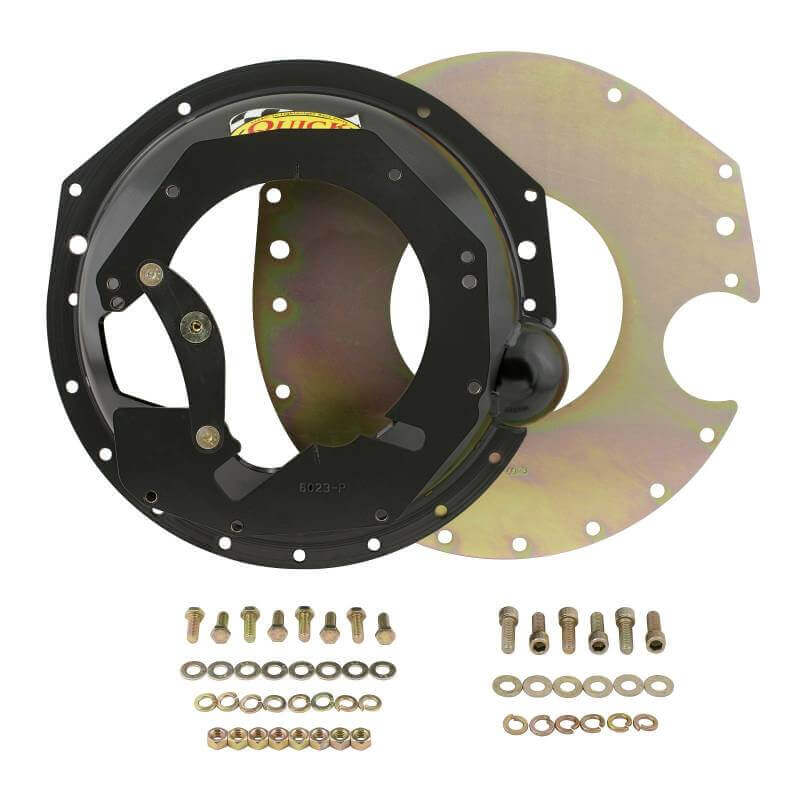

QT SFI Bell Housing for SBC/BBC to LS T56/GM Magnum with piviot stud for mechanical linkage

$798.95

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

This Quick Time bellhousing connects Chevy small block and big block engines to Chevy T56 LS-1 transmissions. Included with this is the pivot ball required for clutch fork attachment. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • Standard Left Hand Fork Or Hydraulic Bearing
  • Fits Up To A 168 Tooth Flywheel With 11 in Clutch
  • Utilizes OEM Style Starter Attachment / Placement
  • Transmission Bore T56 Chevy
  • Bellhousing Depth 5.950 In
  • Weight 22 Lbs
  • Include Grade 8 Hardware
  • Made In The USA
  • When utilized with a Z-Bar – Modifications to Shift Rod May Be Required!



Brand Quick Time
Certification 6.1 SFI
Clutch Diameter 11″ or smaller
Clutch Operation Mechanical or Hydraulic
Color Black
Emission Code 5
Engine Chevy Big Block
  Chevy LT1
  Chevy Small Block
Engine Plate RM-6023-C
Finish Semi-gloss
Flywheel 153/168 Tooth
Height 5.950 inch
Material Steel
Product Type Bellhousing
SFI Certification 6.1
Trans Bore N/A
Trans. Bore Diameter N/A
Transmission T56 Chevy LS
  T56 Magnum
Transmission Type Manual
Warranty Limited 90 Day Warranty
Weight 22#

Weight: 36 lbs

Dimensions: W19" x H8" x L19"
