Description

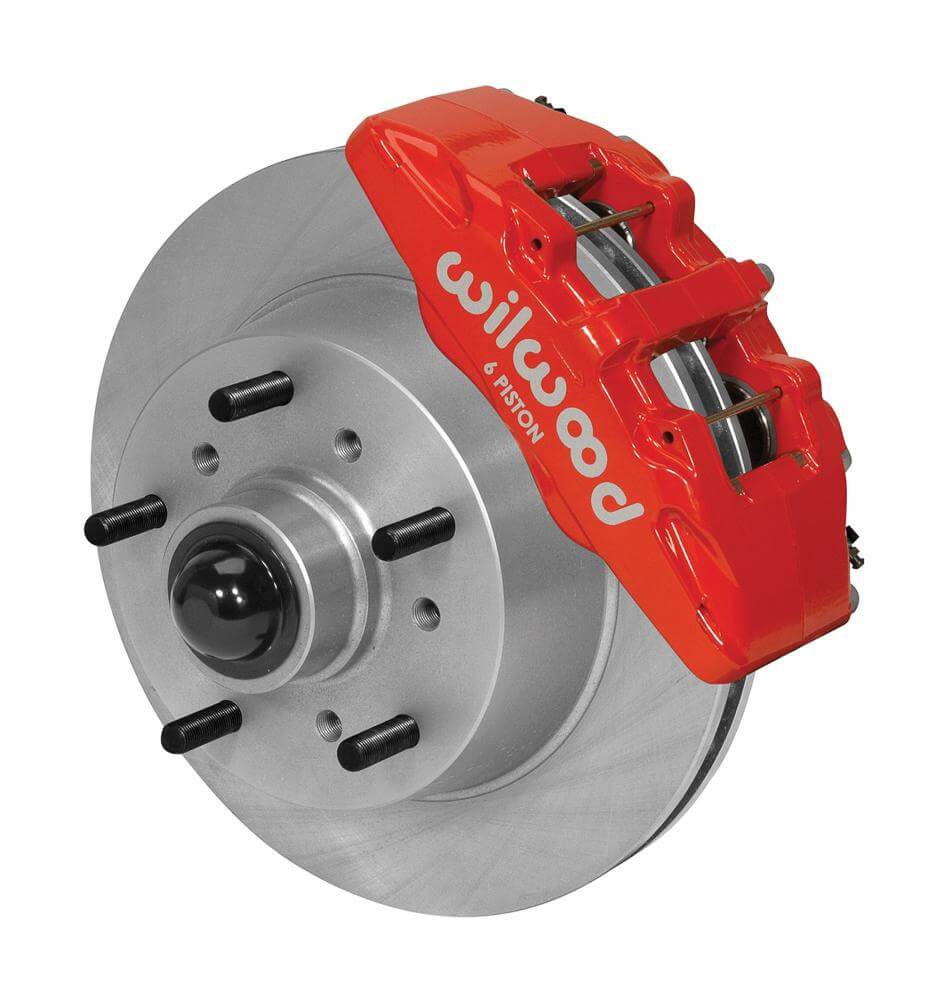

Classic Series Dynapro 6 Front Brake Kit
Wilwood’s Classic Series front disc brake kits for Ford F100 trucks from 1968 to 1972, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a one piece 11.75″ x 1.10” rotor and hub assembly with a dual 5 x 4.50″ and 5 x 5.50″ wheel bolt circle. Based on the venerable Forged Billet Dynapro 6 caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and should provide plenty of clearance inside popular 15″ wheels. DP6 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and hub assembly, brackets, and hardware
| Kit Summary | |
|---|---|
| OE Hub Offset: | +0.00 |
| (Increase / Decrease Track Width) | |
| Spindle Type: | Factory Drum Spindle |
| Mount Type: | Lug |
| Caliper Type: | 6 – Red Powder Coat |
| Rotor Diameter: | 11.75 |
| Min Wheel Diameter Req’d*: | 15 |

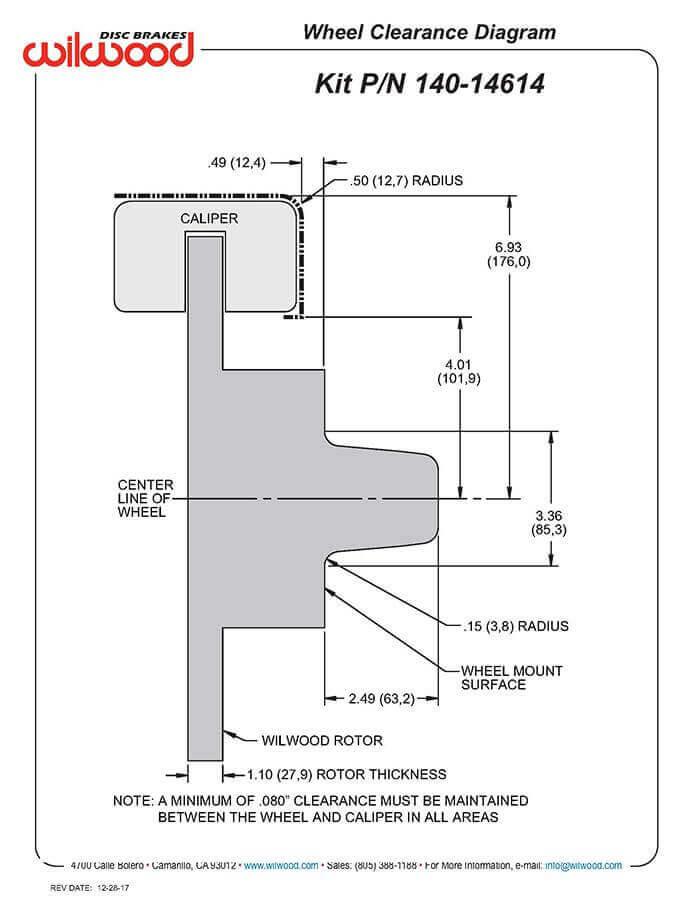

| *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram | |
