Wilwood Classic Series Dynalite Front Brake Kit 140-13476-D

SKU: N/A Category:

$865.18$959.68

-

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

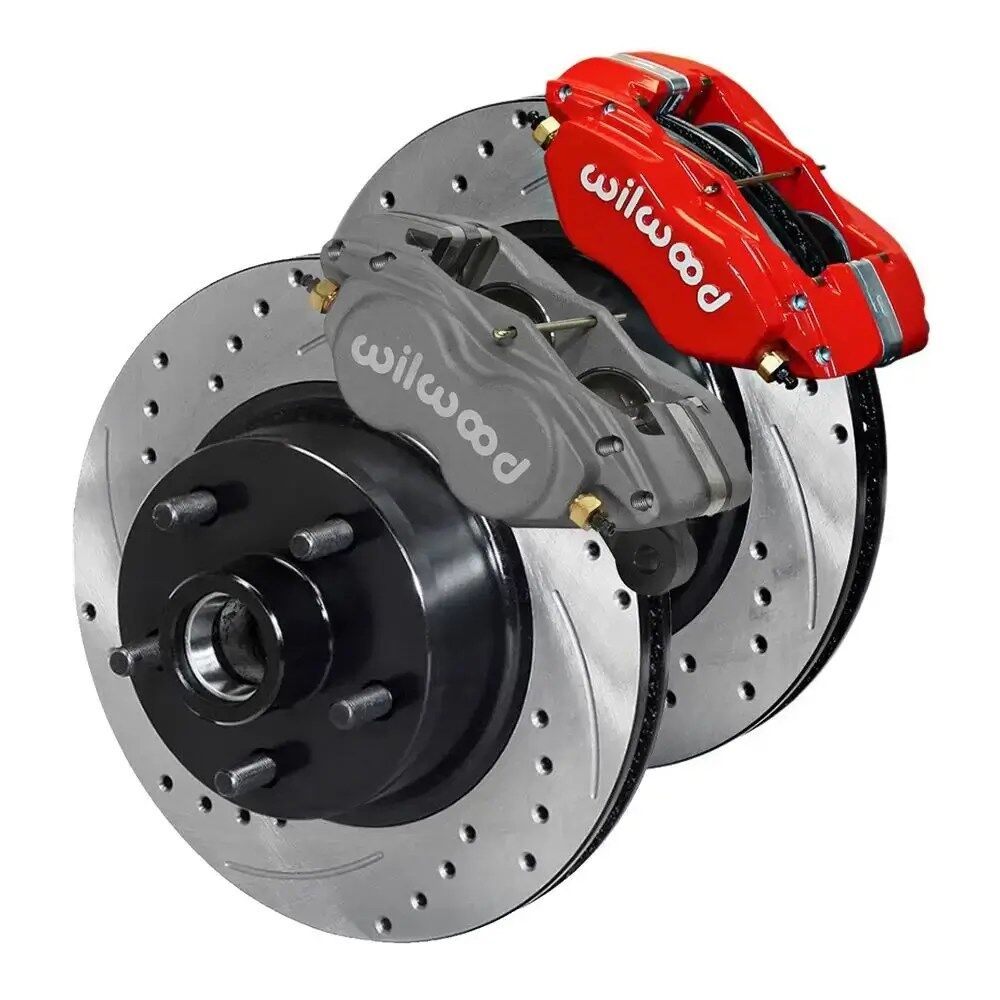

Classic Series Dynalite Front Brake Kit

Wilwood’s Classic Series front disc brake kits for 1965 to 1969 Ford Mustangs offer disc brake upgrade solutions for OEM drum or disc spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.30″ diameter x 0.94” thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14″ OEM disc brake wheels. Kits will not fit OEM drum brake wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware, flex lines and detailed installation instructions.

  • Four Piston Calipers
  • Red Or Anodized Finish
  • Improved Stopping Force
  • Clears Some 14″ Wheels

Fits 1965-70 Mustang drum brake spindles. Fits V8 cars with factory disk brake spindles

Disc Brake Kit, Classic Dynalite, Front, Drilled Rotor, Gray 4-Piston Caliper, 5 Lug Vehicles, Ford, Kit

For detailed application fitment click here

Kit Summary
OE Hub Offset: .00
(Increase / Decrease Track Width)
Spindle Type: Factory Disc Spindle Factory Drum Spindle
Mount Type: Lug
Caliper Type: 4 – Red Powder Coat
Rotor Diameter: 11.30
Min Wheel Diameter Req’d*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram







Weight: 48 lbs

Dimensions: W24" x H24" x L24"
