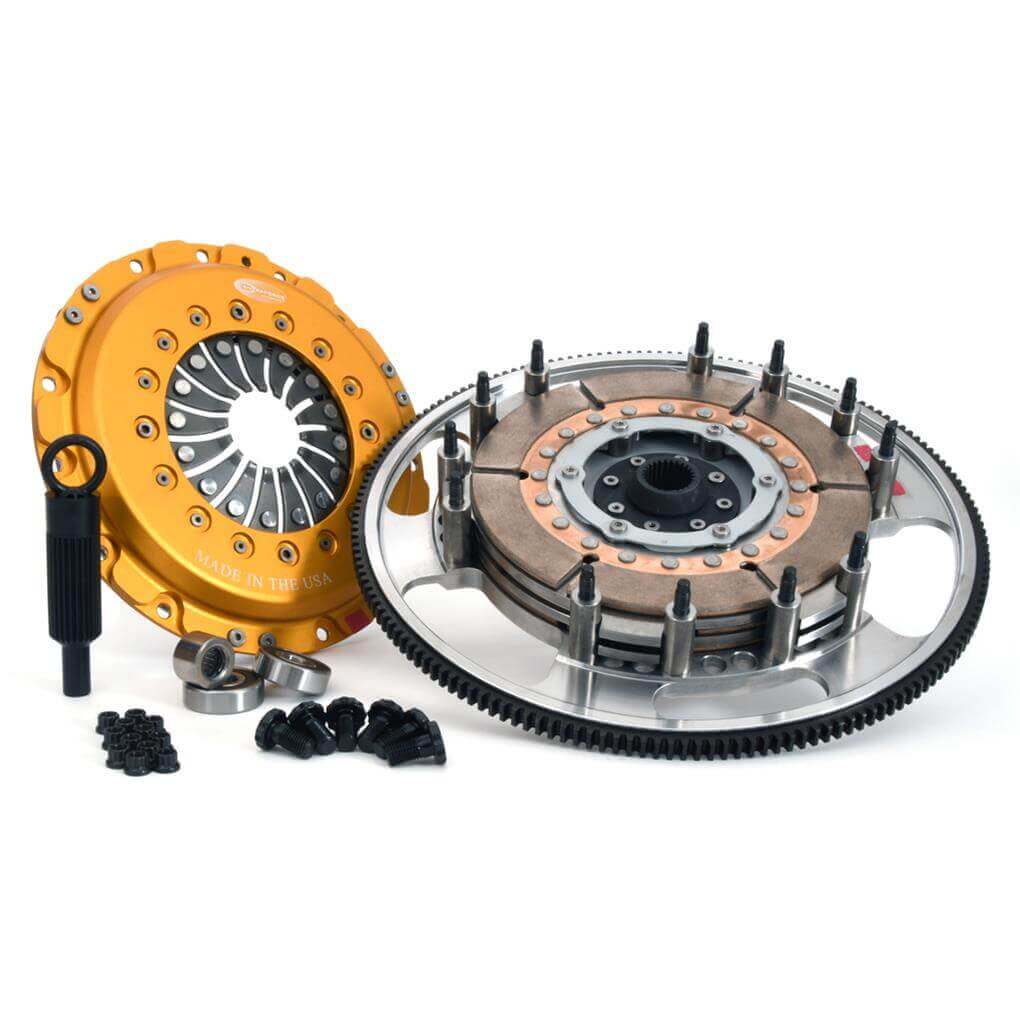

Centerforce TRIAD XDS triple disc 8.750″ GM LS, LT, LSC Engines 6-bolt crank 1-1/8″ input shaft 26-spline 1100hp

SKU: 838264042 Categories: , ,

$1,949.95

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

The Centerforce┬« TRIAD XDS 8.75″ triple disc clutch has been developed for vehicles requiring a holding capacity of 1100 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material …

  • Torque Capacity: 1100 – FT/LB
  • 6-bolt crank/flywheel
  • Triple disk sintered metal
  • Input Shaft Diameter: 1-1/8 – IN
  • Input Spline Quantity: 26
  • No complicated setup or adjustments required
  • Fully dampened clutch system developed for vehicles with extreme power levels
  • Ball bearing actuated pressure plate
  • Patented multi-disc, floating disc and drive disc design
  • Quiet, positive drive floater
  • Smooth engagement and light pedal effort
  • Holds 650 to 1100 ft/lbs of torque
  • Precision balanced
  • Superior longevity
  • ARP fasteners
  • Excellent driver control
  • Specification card included!

Weight: 55 lbs

Dimensions: W12" x H5.5" x L13"
