Description

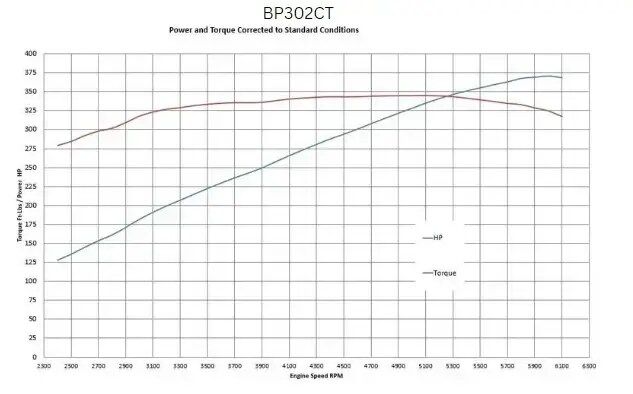

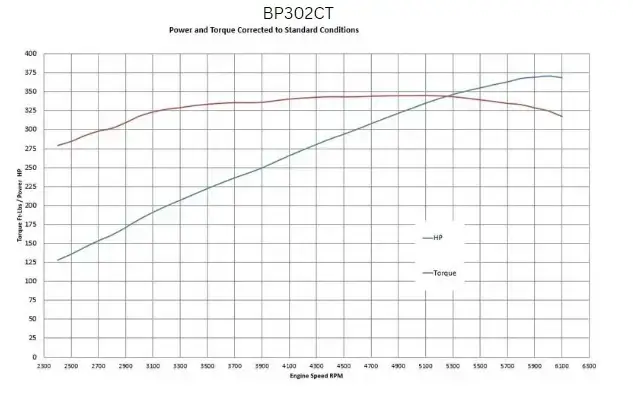

- Horsepower & Torque: 361 Horsepower / 334 FT. LBS. Torque
- Compression Ratio: 9.4:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Crank
- Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000″ Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Cast Crank
- 3.000″ Stroke
- OEM Type 5.090″ Connecting Rods
- Hypereutectic Pistons
- 50oz Externally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – HP9008
- 60cc Chamber
- 2.02″ Intake / 1.60″ Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .533 Intake / .544 Exhaust Lift
- 215 Intake / 220 Exhaust Duration
- @.050-114 Degree Lobe Separation
Ignition Timing:
- 10-16 Degrees Initial, 32-34 Total
Also Includes:
- Holley Street Warrior 600cfm Vacuum Secondary Carburetor w/ Electric Choke
- Front Sump Oil Pan
- Intake Manifold
- Distributor
- Harmonic Balancer
- Valve Covers
- Timing Cover
Notes:
- Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
- This engine is an excellent cruiser and daily driver engine. This engine makes up to 16 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
Part Number: BP302CTC
Fuel Delivery Type: Carbureted, 600cfm
Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)
Spark Plug Gap: .035″
Harmonic Balancer: BPP50 – 50 Ounce, 6.4″ Diameter
Flexplate/Flywheel: 50 Ounce Weighted
Stall Converter: OEM-1800 rpm
Intake Manifold: Dual plane
Fuel Recommendation: 87 Octane
Timing (Initial/Total Advance): Initial timing – 10-16° and Total timing 32-34°
Firing Order: 1,3,7,2,6,5,4,8
Notes: Not for EGR – Engine requires a V-belt standard rotation water pump and belt system.
Recommended Break in Oil: BPP710 (Click Here)
Recommended Service Oil: BPP10W30 (Click Here)
Recommended Oil Filter: BPP21085 or BPP51515 (Click Here)
Total Oil capacity with production oil pan, and Correct Filter: 5 Quarts
Header Partners:
Click here for our Header Partners and recommendations.
Click here to download a copy of the Installation Guide that came with your BluePrint engine.
We give your BluePrint engine the industry’s best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.
