Description
- Horsepower & Torque: 361 Horsepower / 334 FT. LBS. Torque
- Compression Ratio: 9.4:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Crank
- Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Cast Crank
- 3.000″ Stroke
- OEM Type 5.090″ Connecting Rods
- Hypereutectic Pistons
- 50oz External Balance Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – HP9008
- 60cc Chamber
- 2.02″ Intake / 1.60″ Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .533 Intake / .544 Exhaust Lift
- 215 Intake / 220 Exhaust Duration
- @.050-114 Degree Lobe Separation
Ignition Timing:
- 10-16 Degrees Initial, 32-34 Total
Also Includes:
- Holley Street Warrior 600cfm Vacuum Secondary Carburetor w/ Electric Choke

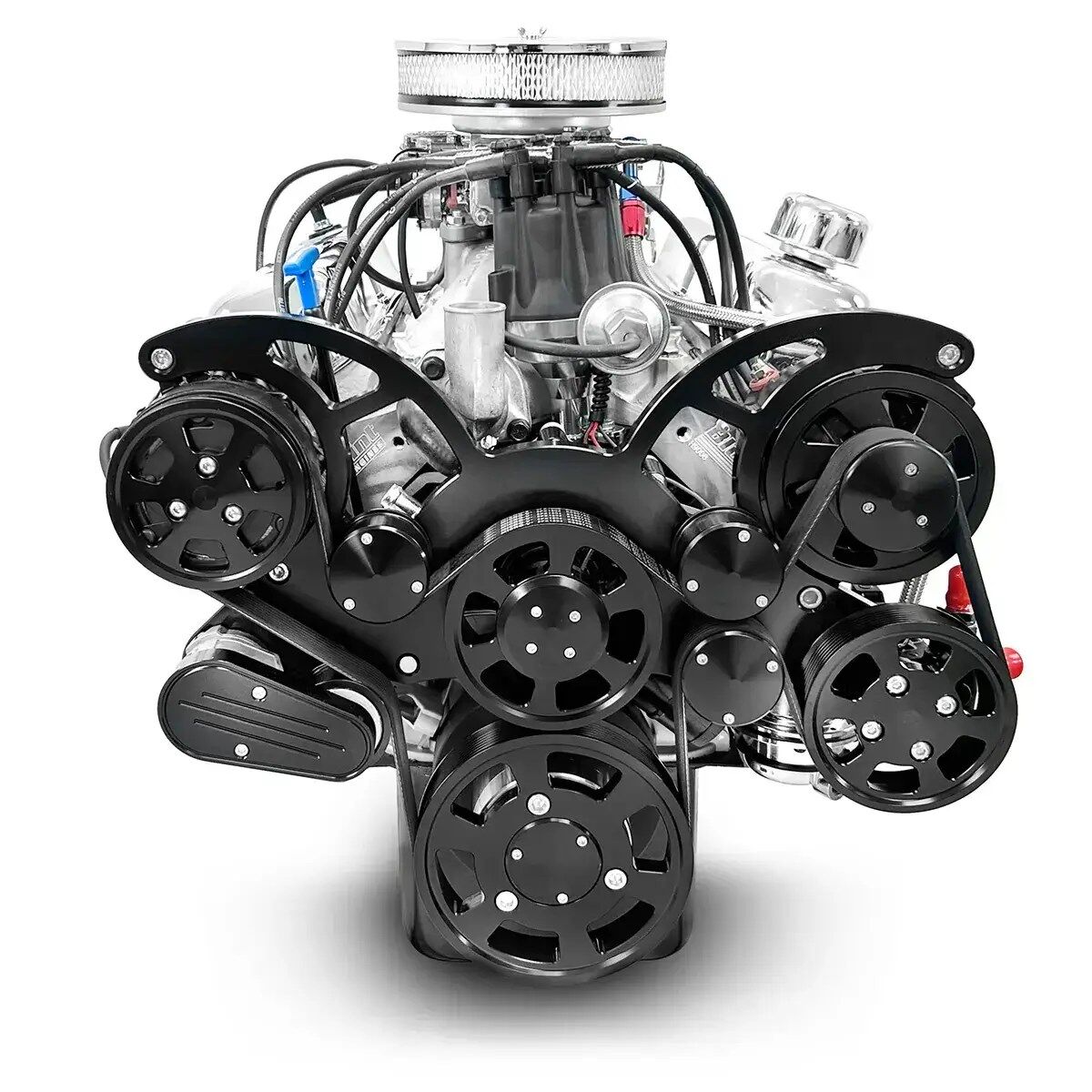

- Front Accessory Drive with Water Pump, Alternator, Power Steering Pump, and A/C Compressor
- Front Sump Oil Pan
- Valve Covers
- Timing Cover
- Distributor
- Spark Plugs and Wires
- Water Pump
- Harmonic Balancer
- Thermostat and Thermostat Housing
Notes:
- Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- This engine is an excellent cruiser and daily driver engine. This engine makes up to 16 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
ur BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Part Number: BP302CTCKB
Fuel Delivery Type: Carbureted, 600cfm
Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)
Spark Plug Gap: .035″
Harmonic Balancer: BPP50 – 50 Ounce, 6.4″ Diameter
Flexplate/Flywheel: 50 Ounce Weighted
Stall Converter: OEM-1800 rpm
Intake Manifold: Dual plane
Fuel Recommendation: 87 Octane
Timing (Initial/Total Advance): Initial timing – 10-16° and Total timing 32-34°
Firing Order: 1,3,7,2,6,5,4,8
Notes: Not for EGR – Engine requires a V-belt standard rotation water pump and belt system.
Recommended Break in Oil: BPP710 (Click Here)
Recommended Service Oil: BPP10W30 (Click Here)
Recommended Oil Filter: BPP21085 or BPP51515 (Click Here)
Total Oil capacity with production oil pan, and Correct Filter: 5 Quarts
