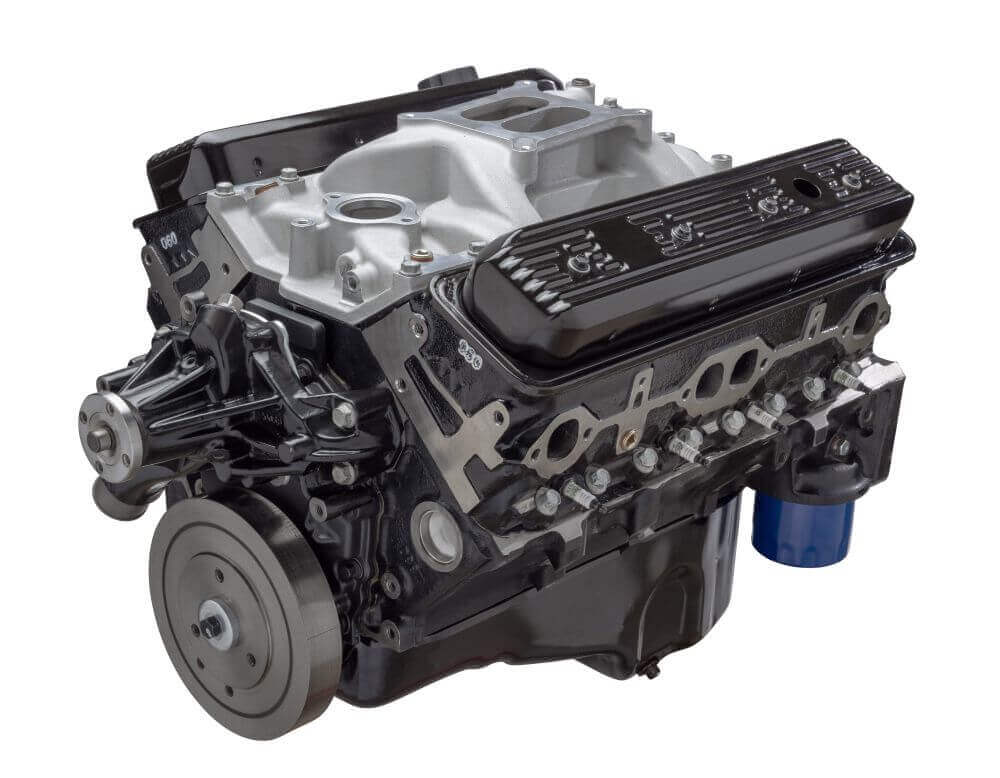

HT383E Chevrolet Performance Small Block Crate Engine – 19435448
323hp @ 4,200 rpm
444 lb.-ft. @ 3,000 rpm
> Greater Torque
> Better Alternative to a Rebuild
> Includes All New Parts
*Ships from Manufacturer This item typically ships within 2-3 Weeks*
A big-torque bolt-in for trucks
When it comes to breathing new life into your trusted truck, the HT383E delivers.
If you are going to go off-road racing or hill-climbing with your old half-ton truck,
the HT383E provides a great boost in horsepower and torque, compared to the
original small-block 350 that came from the factory. To make the installation
easy and economical, you can simply swap the intake manifold, throttle body,
exhaust manifolds and other engine accessories from the original 350 engine.
The engine uses a brand-new four-bolt-main iron block, a forged steel stroker
crankshaft (including a 4X crankshaft position sensor), a smooth roller camshaft
and durable cast-iron Vortec-style cylinder heads. It comes with a new water
pump and a vibration dampener that would normally be replaced during a
complete rebuild of your original engine
Save money and enjoy increased power and torque when you choose the HT383E
crate engine, designed and tested by Chevrolet Performance engineers.
Chevrolet Performance HT383E Crate Engine Installation Notes
- Requires the reuse of the stock intake manifold, distributor, wiring harness
and fuel injection system - Due to calibration variances between half-, three-quarter- and one-ton
vehicles, this engine is designed for half-ton trucks and SUVs only - Comes with 12.750″ externally balanced 153-tooth automatic transmission
flexplate. Requires externally balanced flywheel for manual transmission.
See chart in catalog - Has right-side dipstick
- Not available as a partial engine
Mobil 1 is the recommended engine oil for all Chevrolet Performance Engines
Chevrolet Performance Crate Engines include a 24-month
or 50,000-mile/80,000-kilometer limited warranty, whichever
comes first. See your GM dealer for details.
Chevrolet Performance does not utilize any used or
remanufactured parts in this crate engine, except for
the starter, alternator and power steering pump
| TECH SPECS | Part Number: 19435448 |
| Engine Type: | Chevy Small-Block V-8 |
| Displacement (cu in): | 383 |
| Bore x Stroke (in): | 4.005 x 3.80 |
| Block (P/N 19433406): | Cast iron with 4-bolt main caps |
| Crankshaft (P/N 12489436): | 4340 forged steel; includes 4X crankshaft position sensor |
| Connecting Rods (P/N 19355718): | Heavy-duty forged steel |
| Pistons (P/N 12499103): | Hypereutectic aluminum |
| Camshaft Type (P/N 14097395): | Hydraulic roller |
| Valve Lift (in): | .431 intake / .451 exhaust |
| Camshaft Duration (@.050 in): | 196° intake / 206° exhaust |
| Cylinder Heads (P/N 12691728): | Vortec iron; 62cc chambers |
| Valve Size (in): | 1.940 intake / 1.500 exhaust |
| Compression Ratio: | 9.4:1 |
| Rocker Arms (P/N 10089648): | Stamped steel |
| Rocker Arm Ratio: | 1.5:1 |
| Water Pump (P/N 89060527): | Cast iron |
| Recommended Fuel: | Premium pump |
| Maximum Recommended rpm: | 5,000 |
| Balanced: | External |
| Flexplate (P/N 14088765): | 12.750″ |
| NOTE: Distributor with melonized steel gear MUST be used with long-blocks and partial engines with steel camshafts, or engine damage will occur | |
