1964-66 GM A-body Chevelle, Hydraulic Clutch Conversion Kit with Underdash Hydraulics Clutch Pedal for TKX, TKO and Muncie

SKU: HMGM40020 Category:

$975.95

-

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

Underdash Hydraulic Clutch Conversion kit for GM A-body Chevelle 64-66. Completely bolt in kit with integrated master cylinder that mounts under the dash. Takes all the guesswork out of mounting and pedal rod ratio. Comes with our Hydramax billet release bearing kit for 5-speed or GM 4-speeds.

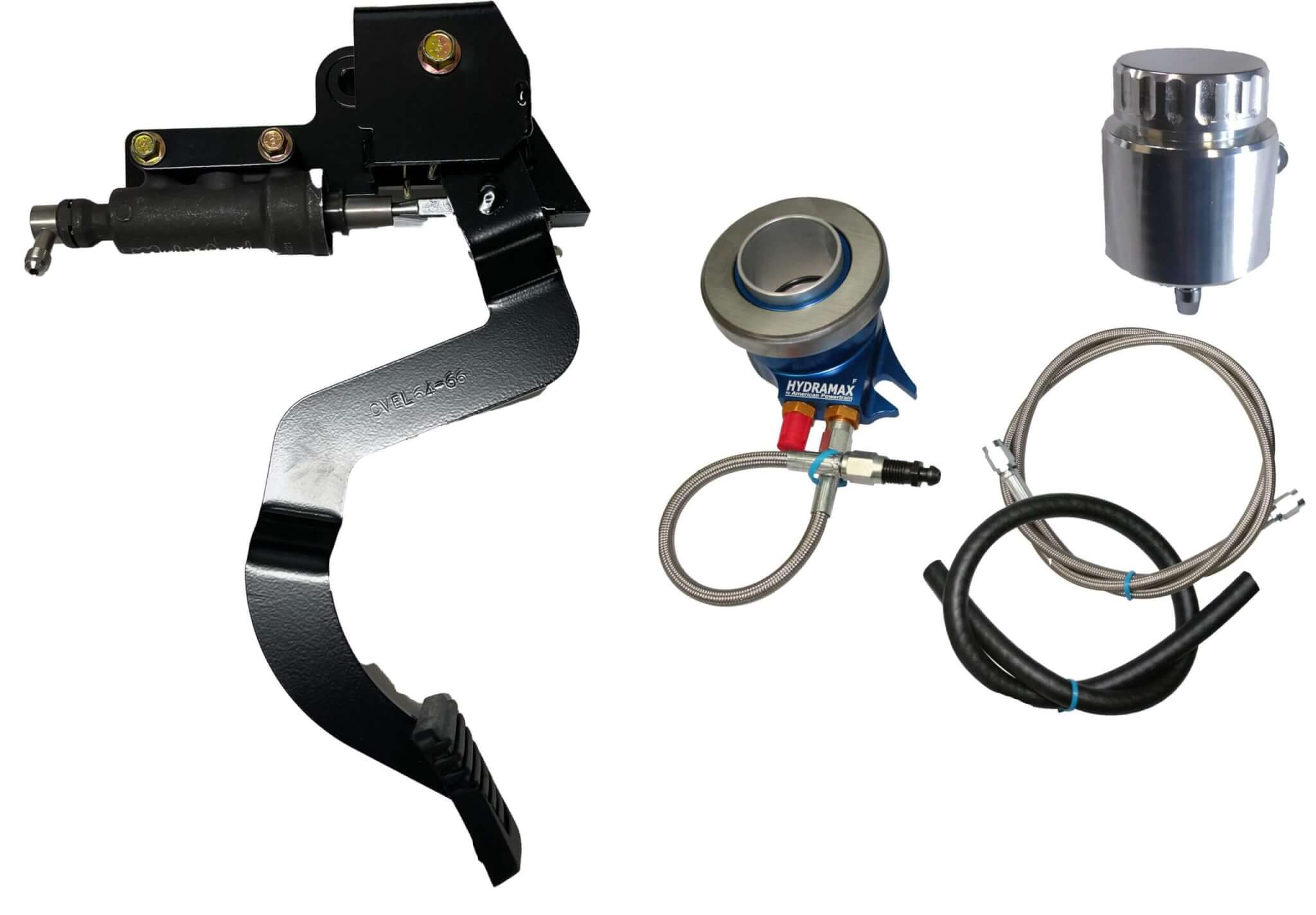

Includes

  • Hydraulic Release Bearing Kit for GM TKO/Muncie/T10/Saginaw/Richmond/GM Jericho, includes slave, hardware. -3AN line compatible. Pre-bled for easy bleeding. Double width Buna-N seals, 1800psi tested.
  • Steel Braided Lines – Teflon Lined Stainless Steel
  • Underdash 3/4″ bore master cylinder
  • Billet Reservoir Kit
  • A-body Clutch Pedal
  • Lines, shims and fittings
  • Complete instructions
  • Does not fit GTO or LeMans

Weight: 15 lbs

Dimensions: W8" x H8" x L10"
