Description
American Powertrain Pro-Fit HD 4WD kits for 1993-01 Dodge Ram 1500 factory 5-speed truck
Featuring the TREMEC TR-4050 4WD 5-Speed.
- Similar to the NV3500. Direct replacement for factory Dodge 5-speed with adapter bell.
- 600 lb/ft of torque capacity
- Aggressive 6.16 “Granny” Gear 1st gear but with economical .76 5th gear
- High-contact, constant mesh, helical gears for maximum strength
- Die-cast aluminum alloy housing saves weight while offering considerable rigidity
- The multiple rail, internal shifter provides excellent shift feel and performance
- Tapered bearing on input, main, and counter shafts provide excellent internal stability
- Needle bearings under gears reduce friction and noise output
- Fully synchronized
- Advanced synchronizer technology promotes smoother shifting and reduced shift effort
- 5th gear synchronizer mounted to the countershaft to improve NVH in overdrive
- 3.67 qt oil capacity
- 23-spline output fits factory transfer case.
Gear ratios: 6.16, 3.11, 1.71, 1, .76 od. rev 6.03
– 10 spline input shaft / 23-spline output
– Torque rating 600lb-ft
– A 6-bolt PTO mount location 6 bolt circle output flange.
– NV4500 bolt pattern
Specs:
- Torque Capacity – 600 lb.ft / 813 n/m
- Oil Capacity – 3.7 QT / 3.5ltr.
- Weighs 164 lbs. / 74kg
- .590″ Pilot diameter
- 1.125″ Input shaft diameter, 10-spline, 6.5″ length
30-50% increase in fuel economy
Low RPM cruising for greatly reduced driver fatigue and an improved highway driving experience.
Reduced engine wear leading to longer engine life
Cooler engine operating temperature.

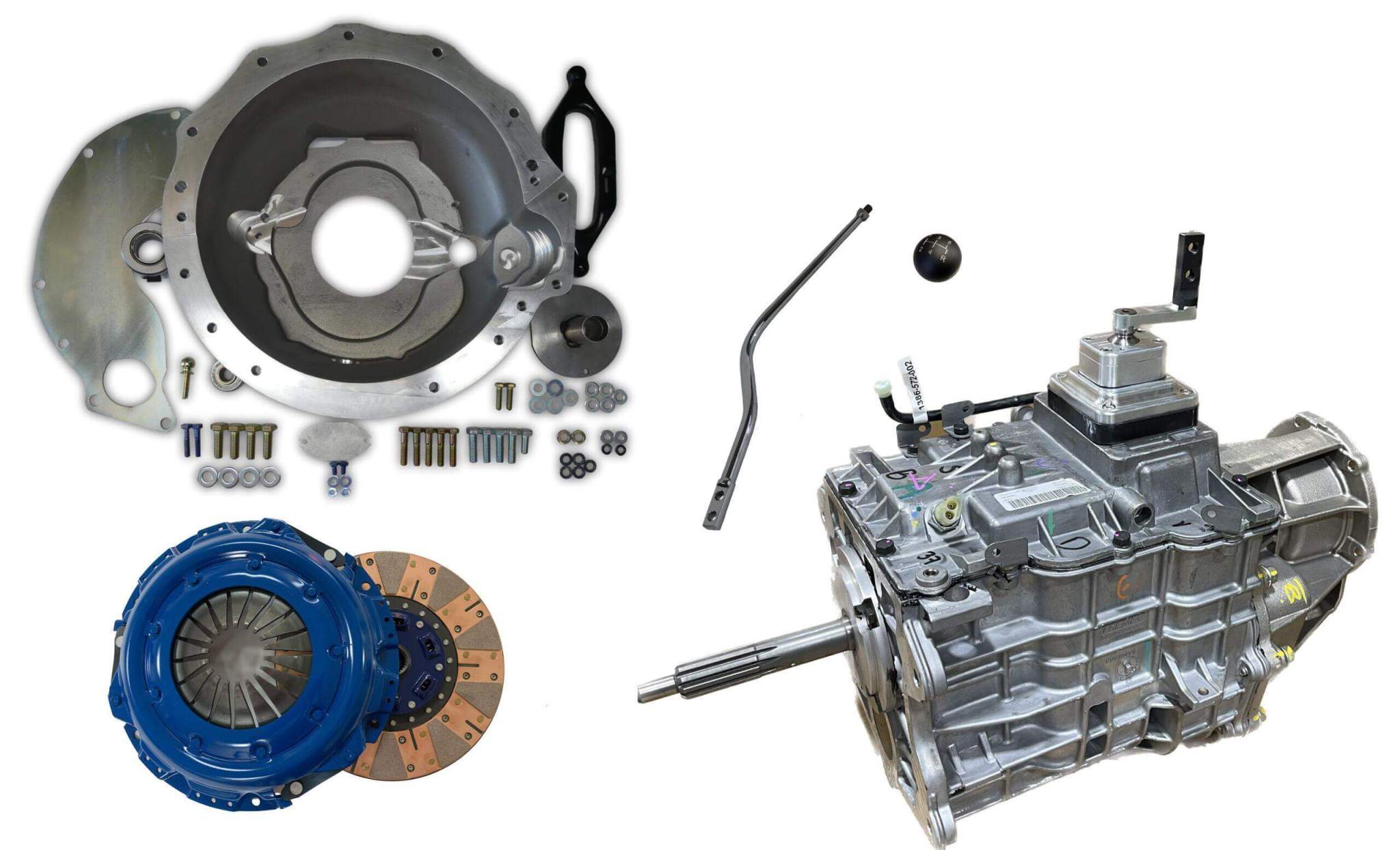

Kit includes:
White Lightning Shifter for TR4050
Mopar Bellhousing for 4050
NOTE: for factory 360/318 engines you will need our bell housing with a notch installed for the crank sensor as well as our flywheel kit.
Also fits GEN III HEMI swaps.
Works with existing external hydraulic slave and factory master cylinder.
Fits perfectly with Factory crossmember, driveshafts and even the transfer case shifter! Makes installation a snap.
Comes with new throw out bearing
Pilot Bearing – Stainless rollers, grease pre-pak
Reverse Light Harness – Weatherseal
Shifter Knob
Hardware, Instructions, Warranty
