Description

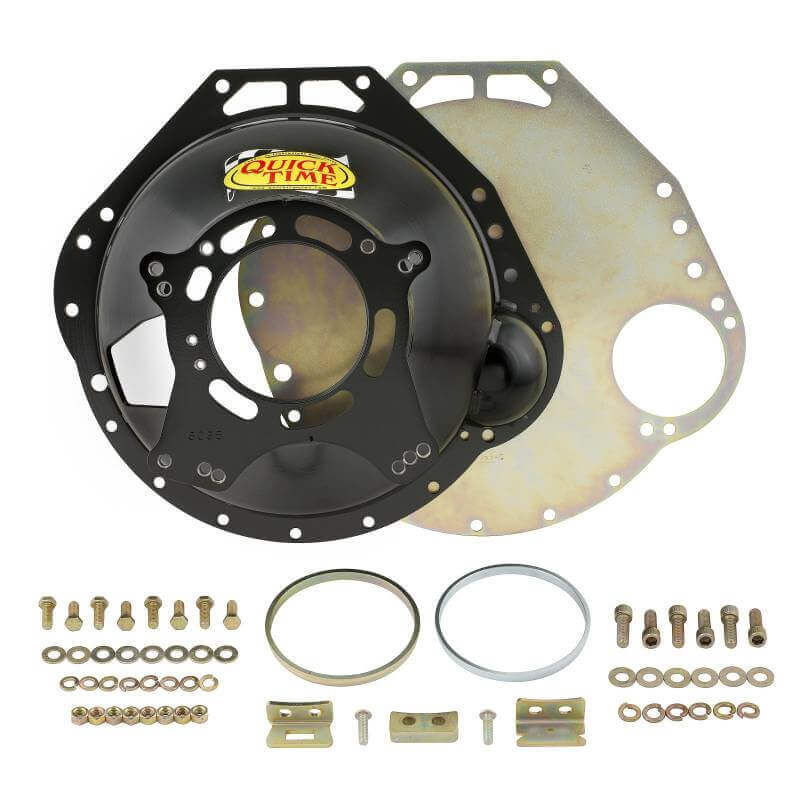

The Quick Time RM-6065 bellhousing connects a small block Ford engine to a Ford TKO 500-600, TR3550, or T5 Mustang (standard length input shaft) transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Patent on 16 points of Bellhousing Design & Process
- Designed For Ford OE Fork Or Cable Style Bearing
- Fits Up To 157 Tooth Flywheel And 10.5 in Clutch
- Utilizes OEM Style Starter Attachment / Placement
- Transmission Bore Diameter 4.85 In / 4.91 In
- Bellhousing Depth 6.925 In
- Weight 22 Lbs
- Include Grade 8 Hardware
- Made In The USA
| Brand | Quick Time |
|---|---|
| Certification | 6.1 SFI |
| Clutch Operation | Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | Ford 289 |
| Ford 302 | |
| Ford 351C | |
| Ford 351W | |
| Ford Small Block | |
| Engine Plate | RM-6065-C |
| Finish | Semi-gloss |
| Flywheel | 157 Tooth |
| Height | 6.925 inch |
| Material | Steel |
| Product Type | Bellhousing |
| Trans Bore | 4.85 / 4.91 / 5.12 |
| Transmission | T5 Mustang |
| TKO 500/600 Ford | |
| TR3550 | |
| Transmission Type | Manual |
| Warranty | Limited 90 Day Warranty |
| Weight | 22# |
