Bell Housing for Ford 400/429/460 to Ford TKO

SKU: BHFO-28010 Category:

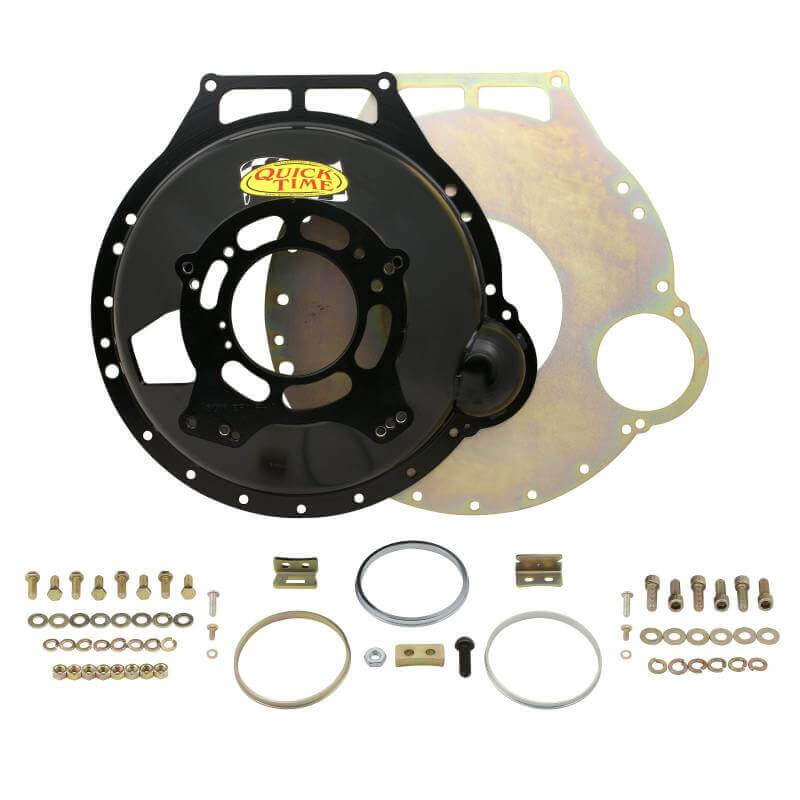

QT SFI Bell Housing for Ford 400/429/460 to Ford TKO

$751.95

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

Ford 351M/400/429/460 applications with T5 or Tremec transmissions – SFI 6.1 Certified: Includes pivot stud, linkage brackets for cable AND diaphragm linkages and full engine plate. 6.1SFI Certified at 85,000psi

This bellhousing is designed for circle track, strip or street application. Will fit Ford 351M, 400, 429 , to Ford T5 Tremec transmission, built from high grade steel, the cone is spun not stamped or rolled making this bellhousing the most dimensionally stable and accurate on the market today. It’s 7.05 in deep bellhousing will clear a 176 tooth flywheel and a 12 in clutch assembly. Transmission bore is universal at 4.685 – 4.910 in and is set up for adjustable pivot. Weighs 22 pounds, block plate and grade 8 hardware included in the kit. S.F.I. approved

Features:

  • Patent on 16 points of Bellhousing Design & Process
Brand Quick Time
Certification 6.1 SFI
Clutch 12″ Clutch Disc
Clutch Operation Hydraulic
Emission Code 5
Engine Ford 351M
  Ford 400
  Ford 429
  Ford 460
  Ford Big Block
Engine Plate RM-8005
Flywheel 176 Tooth
Height 7.150 inch
Product Type Bellhousing
Trans Bore 4.85 / 4.91 / 5.12
Transmission T5 Mustang
  TKO 500/600 Ford
  TR3550
Transmission Type Manual
Weight 23#

Weight: 23 lbs

Dimensions: W20" x H9" x L22"
