Bell Housing for GM TKO/Muncie/T-10/Richmond/Saginaw Hydraulic only

SKU: BHCV-26010 Category:

QT SFI Bell Housing for Chevrolet to GM TKO/Muncie/T-10/Richmond/Saginaw Hydraulic only

$550.95

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

QT SFI Bell Housing for SBC to GM TKO/Muncie/T-10/Richmond/Saginaw, NOTE: 153t fw only, Hydraulic Applications only

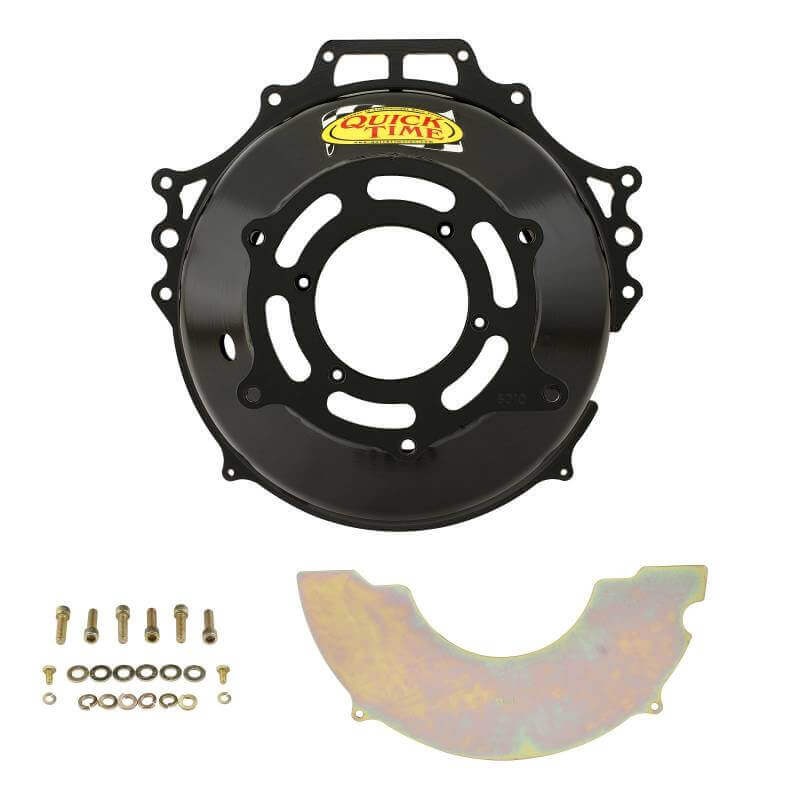

The Quick Time RM-6010 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • Designed For Use With Hydraulic Throw Out Bearing
  • Fits Up To A 153 Tooth Flywheel And 10.5 in Clutch
  • Requires Use Of Compact / Mini Starter
  • Transmission Bore Diameter 4.685 In
  • Bellhousing Depth 6.290 In
  • Weight: 18lbs
  • Include Grade 8 Hardware
  • Made In The USA
    Brand Quick Time
    Certification None
    Clutch 10.5″ Clutch Disc
    Clutch Diameter 10.5 inch
    Clutch Operation Hydraulic
    Color Black
    Emission Code 5
    Engine Chevy Big Block
      Chevy LT1
      Chevy Small Block
    Engine Plate RM-6010-C
    Finish Semi-gloss
    Flywheel 153 Tooth
    Height 6.290 inch
    Material Steel
    Product Type Bellhousing
    Trans Bore 4.687
    Trans. Bore Diameter 4.685
    Transmission Bert Racing
      Brinn Racing
      Falcon
      Jerico
      Muncie
      Richmond
      Saginaw
      T10
      T5 Chevy
      TKO 500/600 Chevy
    Transmission Type Manual
    Warranty Limited 90 Day Warranty
    Weight 18#



Weight: 25 lbs

Dimensions: W18" x H8" x L19"
