Description

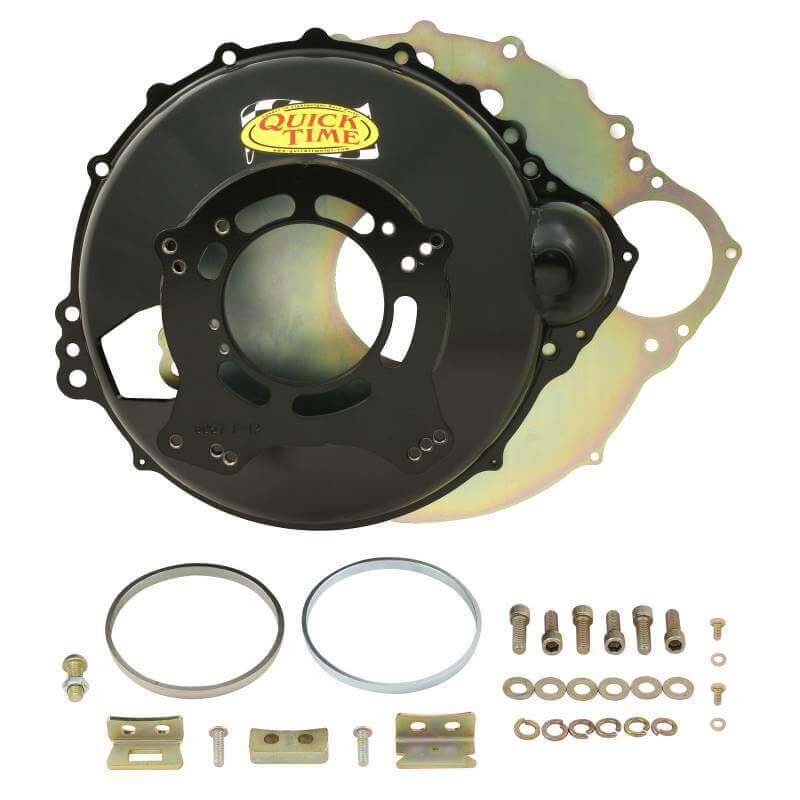

QT Bell Housing for Ford FE 360/390/427/428 to Toploader or Ford T-10, NOTE: Includes pivot stud, linkage brackets for cable AND diaphragm linkages and full engine plate.
The Quick Time bellhousing connects Ford FE engines (332, 352, 360, 390, 406, 410, 427, and 428 cid) to early Ford Toploader and Borg Warner T10 transmissions. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Patent on 16 points of Bellhousing Design & Process
- Designed For Ford OE Fork Or Cable Style Bearing
- Fits Up To A 184 Tooth Flywheel With 12 in Clutch
- Utilizes OEM Style Starter Attachment / Placement
- Transmission Bore 4.850 In / 4.910 In
- Bellhousing Depth 6.425 In
- Weight 22 Lbs
- Includes Grade 8 Hardware
- Made In The USA
| Brand | Quick Time |
|---|---|
| Certification | None |
| Clutch Operation | Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | Ford 352 |
| Ford 390 | |
| Ford 427 | |
| Ford 428 | |
| Ford Big Block FE | |
| Engine Plate | RM-6008 |
| Finish | Semi-gloss |
| Flywheel | 184 Tooth |
| Height | 6.450 inch |
| Material | Steel |
| Product Type | Bellhousing |
| Trans Bore | 4.685 / 4.85 / 4.91 / 5.120 |
| Transmission | Ford Toploader |
| T10 | |
| TKO 500/600 Ford – Short Shaft | |
| Toploader | |
| Transmission Type | Manual |
| Warranty | Limited 90 Day Warranty |
| Weight | 22# |
