Description

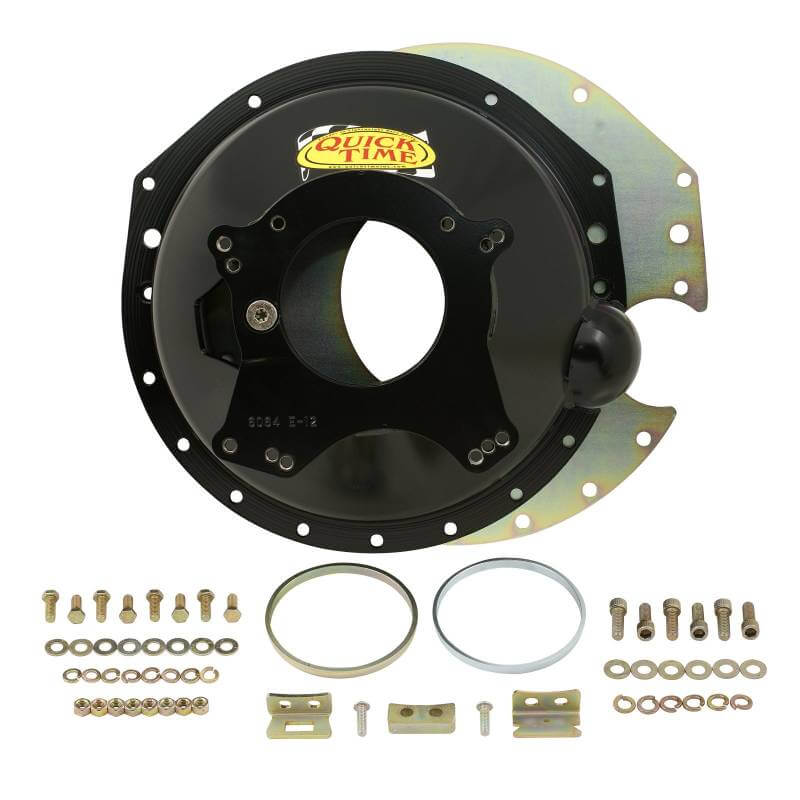

QT SFI Bell Housing for SBC/BBC to FORD TKO/T5 ….NOTE: 153t Flywheel only
Built from high grade steel – Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing. Uses GM shifter fork (not included).
Features:
- Patent on 16 points of Bellhousing Design & Process
- Designed to be used with a 1994+ Mustang shifter fork and/or standard GM clutch forks such as Lakewood #15500
- Pivot ball, full engine plate and grade 8 bolts included
- SFI 6.1 Certified
| Brand | Quick Time |
|---|---|
| Certification | 6.1 SFI |
| Clutch Diameter | 10.5 inch |
| Clutch Operation | Mechanical or Hydraulic |
| Emission Code | 5 |
| Engine | Chevy Big Block |
| Chevy LT1 | |
| Chevy Small Block | |
| Engine Plate | RM-6023-C |
| Flexplate | 153 Tooth |
| Flywheel | 153 Tooth |
| Height | 7.145 inch |
| Product Type | Bellhousing |
| SFI | 6.1 |
| Trans Bore | 4.85 / 4.91 / 5.12 |
| Trans. Bore Diameter | Universal 4.850 inch / 4.910 inch |
| Transmission | T5 Mustang |
| TKO 500/600 Ford | |
| TR3550 | |
| Transmission Type | Manual |
| Weight | 22# |
