Bell Housing for LS/LQ Engine to FORD TKO/T5 Use with 168t flywheel

SKU: BHCV-26037 Category:

QT SFI Bell Housing for LS/LQ Engine to FORD TKO/T5 Use with 168t flywheel

$688.95

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

QT SFI Bell Housing for LS/LQ Engine to FORD TKO/T5 ….NOTE: Use with 168t flywheel

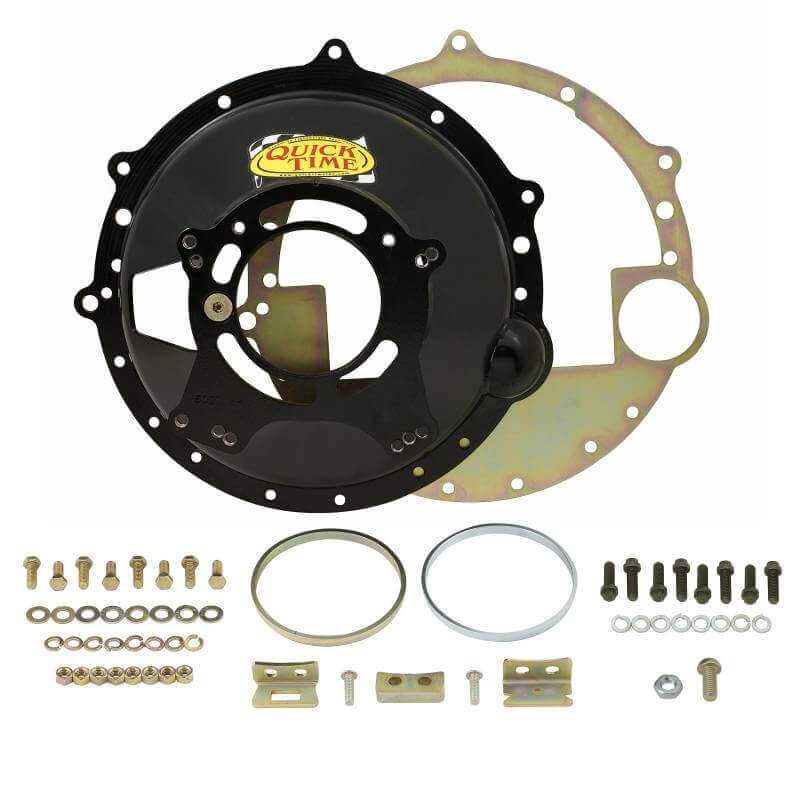

This bellhousing is designed for street, strip and circle track applications. Built from high quality grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. This bellhousing will fit Mopar big block 383, 400, 426, 440 engines with 3/4 speed transmissions. 7.4 in deep will clear 130 tooth flywheel with 11 in clutch. Weighs 22 pounds. S.F.I. 6.1 certified. Fork bracket, block plate and Grade 8 hardware included. Made in America. Other applications available.

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • Big Block Mopar 383 400 426 440 CID
  • 3/4 Speed Mopar Transmission
  • 130 Tooth Flywheel 11 In Clutch
  • 7.4 In Deep
  • 22 Pounds
    Brand Quick Time
    Certification 6.1 SFI
    Clutch Operation Hydraulic
    Color Black
    Emission Code 5
    Engine Mopar 383
      Mopar 400
      Mopar 426
      Mopar 440
      Mopar Big Block
    Engine Plate RM-6073-C
    Finish Semi-gloss
    Flywheel 130 Tooth
    Height 7.405 inch
    Material Steel
    Product Type Bellhousing
    Trans Bore 4.807 / 5.125 / 4.355
    Transmission Mopar 3-4 Speed A833
    Transmission Type Manual
    Warranty Limited 90 Day Warranty
    Weight 22#



Weight: 32 lbs

Dimensions: W19" x H8" x L19"
