Bell Housing for LS/LQ Engine to GM TKO/Muncie/T-10/Richmond

SKU: BHCV-26036 Category:

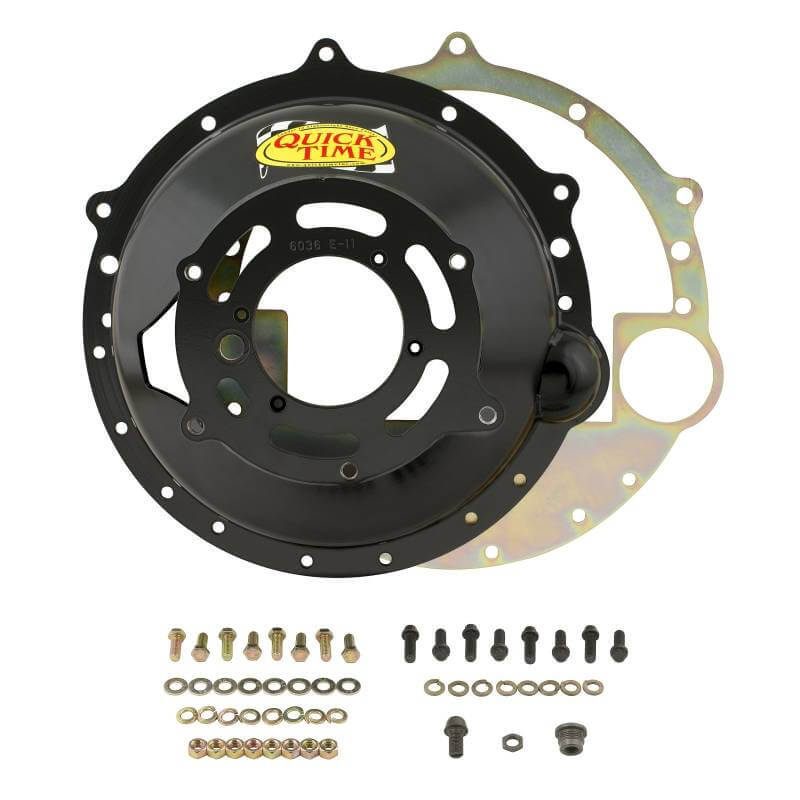

QT SFI Bell Housing for LS/LQ Engine to TKO/Muncie/T-10/Richmond

$707.95

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

QT SFI Bell Housing for LS/LQ Engine to TKO/Muncie/T-10/Richmond….NOTE: Use with 168t FW

The Quick Time RM-6063 bellhousing connects Small Block Ford 289/302/351C/351W Engines to Ford toploader, Borg Warner T10, and Tremec TKO 500/600 transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • Designed For Ford OE Fork Or Cable Style Bearing
  • Fits A 157 Tooth Flywheel With A 10.5 in Clutch
  • Utilizes OEM Style Starter Attachment / Placement
  • Transmission Bore Diameter 4.85 In / 4.91 In
  • Bellhousing Depth 6.300 In
  • Weight 22 Lbs
  • Includes Grade 8 Hardware
  • Made In The USA
Brand Quick Time
Certification 6.1 SFI
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Ford 289
  Ford 302
  Ford 351C
  Ford 351W
  Ford Small Block
Engine Plate RM-6065-C
Finish Semi-gloss
Flywheel 157 Tooth
Height 6.300 inch
Material Steel
Product Type Bellhousing
Trans Bore 4.685 / 4.85 / 4.91 / 5.12
Transmission Ford Toploader
  T10
  TKO 500/600 Ford – Short Shaft
Transmission Type Manual
Warranty Limited 90 Day Warranty
Weight 22#

Weight: 27 lbs

Dimensions: W19" x H8" x L19"
