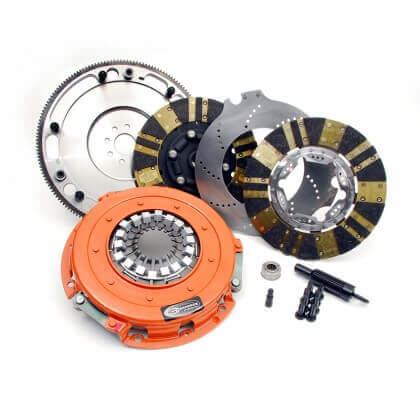

Centerforce DYAD 10.4″ GM Small Block and Big Block 168-tooth flywheel 26-spline 2-piece rear main “0” balance

SKU: 413614820 Categories: , ,

$1,659.95

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

The Centerforce® DYAD DS 10.4″ twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. …

  • Torque Capacity: 1300 – FT/LB
  • Fits 2-piece rear main
  • Ring Gear Tooth Count: 168
  • Disc Type Sprung Solid: Sprung
  • Input Shaft Diameter: 1-1/8 – IN
  • Input Spline Quantity: 26
  • Zero 0 Balance flywheel
  • No complicated setup or adjustments required
  • Fully dampened clutch system developed for vehicles with extreme power levels
  • Ball bearing actuated pressure plate
  • Patented multi-disc, floating disc and drive disc design
  • Quiet, positive drive floater
  • Smooth engagement and light pedal effort
  • Holds 500 to 1300 ft/lbs of torque
  • Precision balanced
  • Superior longevity
  • ARP fasteners
  • Excellent driver control
  • Specification card included!

Weight: 55 lbs

Dimensions: W12" x H5.5" x L13"
