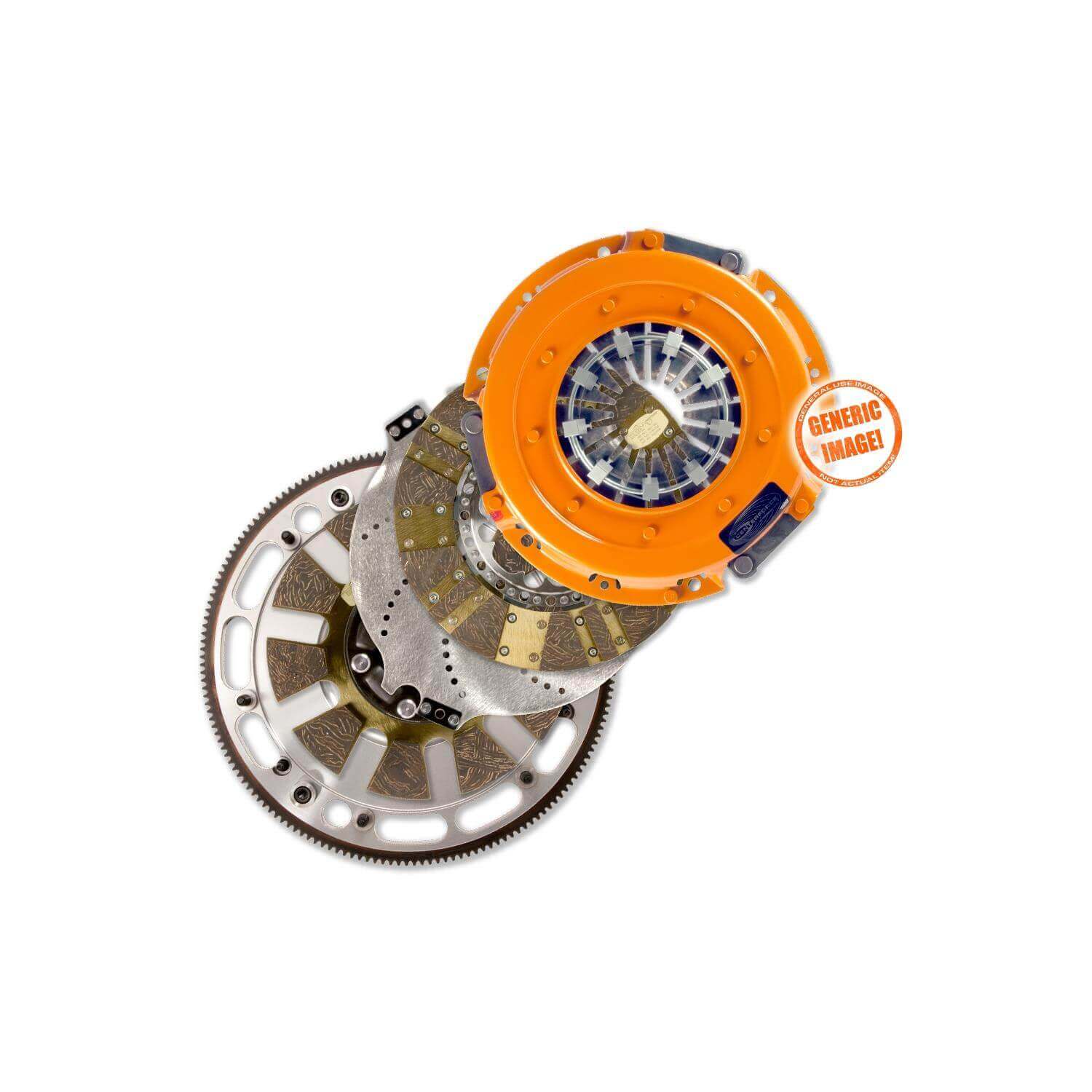

Centerforce DYAD 10.4″ Big Block Mopar Clutch and 143-tooth Flywheel Kit-6 bolt crank 26-spline

SKU: 413613020 Categories: , ,

$1,549.95

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

The Centerforce® DYAD DS 10.4″ twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM’s. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Details
The Centerforce® DYAD DS 10.4″ twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp …
  • No complicated setup or adjustments required
  • Big block Mopar
  • 143 tooth flywheel
  • Fits 6-bolt crank
  • Fully dampened clutch system developed for vehicles with extreme power levels
  • Ball bearing actuated pressure plate
  • Patented multi-disc, floating disc and drive disc design
  • Quiet, positive drive floater
  • Smooth engagement and light pedal effort
  • Holds 500 to 1300 ft/lbs of torque
  • Precision balanced
  • Superior longevity
  • ARP fasteners
  • Excellent driver control
  • Specification card included!
  • For more questions about this product, please

Weight: 55 lbs

Dimensions: W12" x H5.5" x L13"
