1961-72 Ford F100 TREMEC TKX 5-Speed Kit Quote

SKU: FORD T1 TKX Category:

1961-72  Ford F100 TREMEC TKX 5-Speed Pro-Fit Kit

We can convert from Auto to 5-Speed or 4-speed to 5-speed. If you don’t know what parts you need, hit the RFQ button or call us at 931-646-4836

Request A Quote

-

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

American Powertrain 1961-72 Ford F100 TREMEC TKX Pro-Fit 5-Speed kit

  • 30-50% increase in fuel economy
  • Low RPM cruising for greatly reduced driver fatigue and an improved highway driving experience.
  • Reduced engine wear leading to longer engine life
  • Cooler engine operating temperatures
  • Reduced NVH (noise – vibration – harshness)

TKX Gear Ratios

Select between 3 ratios

Our best seller is 17765 with the .68 OD works great with 3.55-4.11 gears

Wide Ratio – 3.27, 1.98, 1.34, 1.00, 0.72
Close Ratio – 2.87, 1.89, 1.28, 1.00, 0.68 OR 0.81 5th

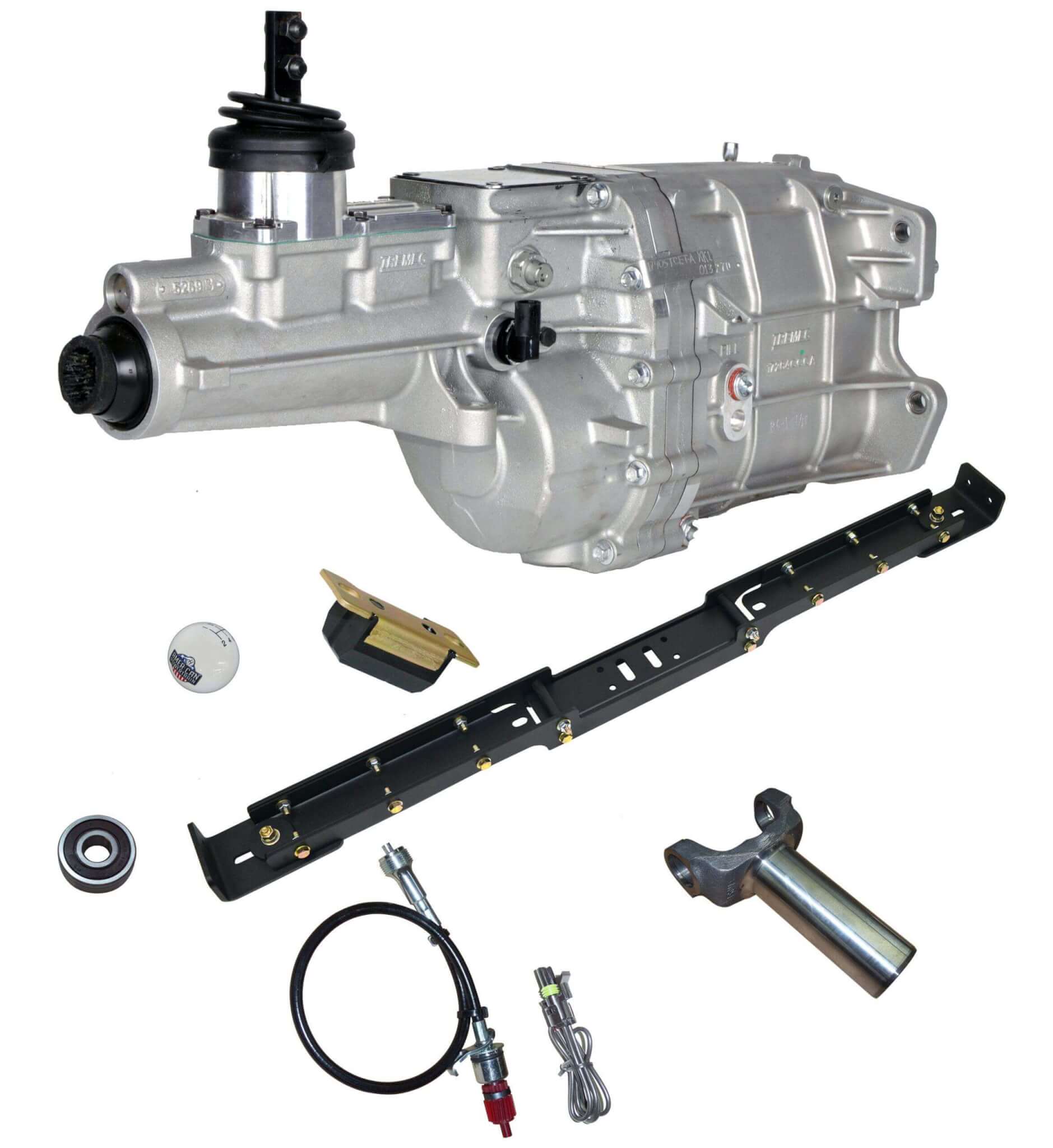

Kit Includes:

TREMEC TKX 5-speed

Driveshaft Slip Yoke (shorter driveshaft required)
Adjustable Bolt-In Cross Member – Black powder coat, uses original bolt holes
Isolator Mount – Polyurethane
Speedometer Solution – Mechanical or Electronic
Conversion Pilot Bearing
Weatherseal Reverse Light Harness,
Hardware, Complete Instructions and Warranty

You will need a bell housing adapter plate depending on the Toploader 4-speed pattern or a TKX bell housing. See optional parts list.

26-spline clutch disk required

Optional Parts:

  • Hydramax Hydraulic Clutch
  • Pilot Bearing
  • Bell housing
  • Flywheel
  • Shifter
  • Shifter Handle

Weight: 100 lbs

Dimensions: W14" x H18" x L31"

If you don't know what you need, call our technical sales staff at 931-646-4836
