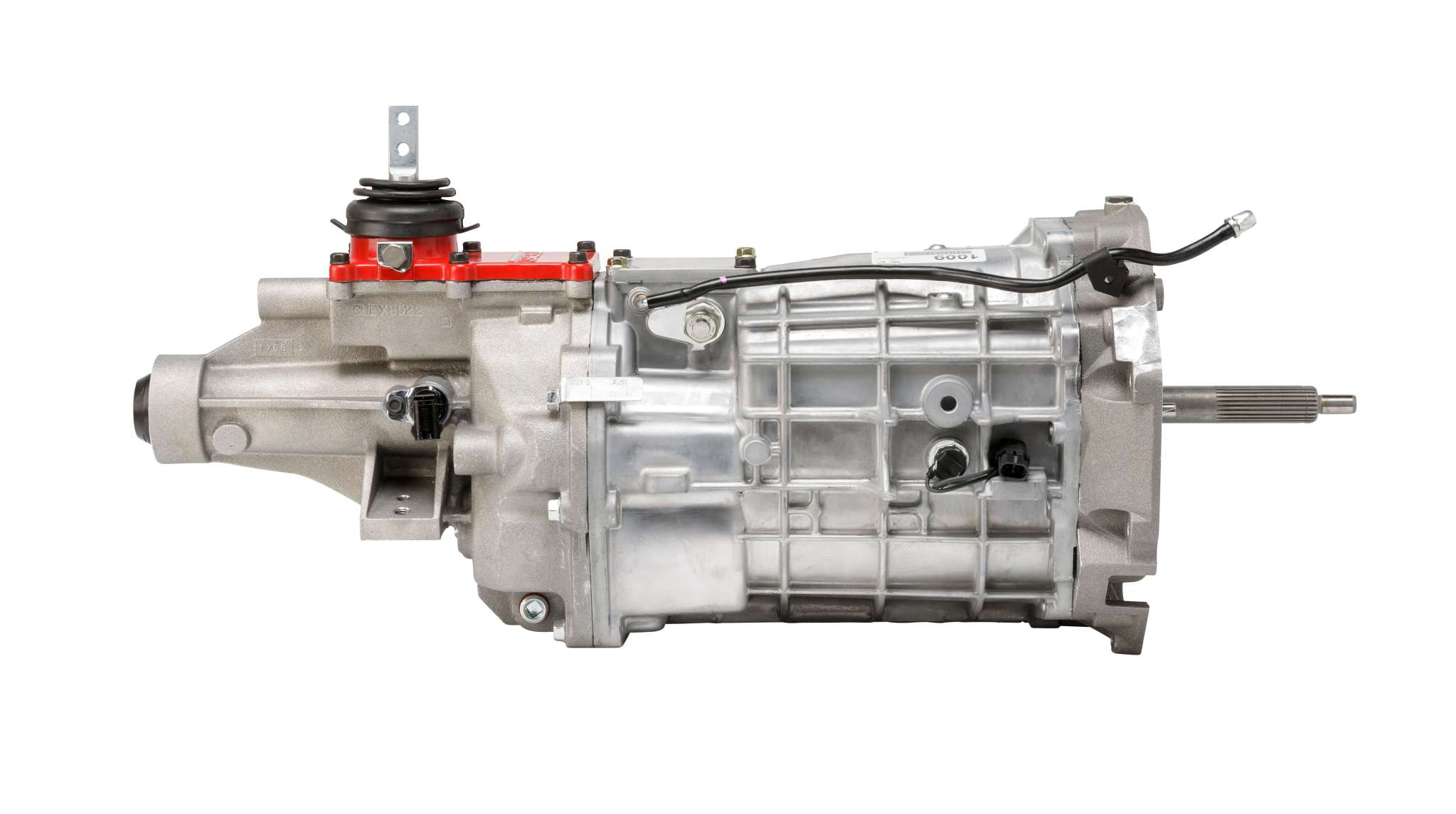

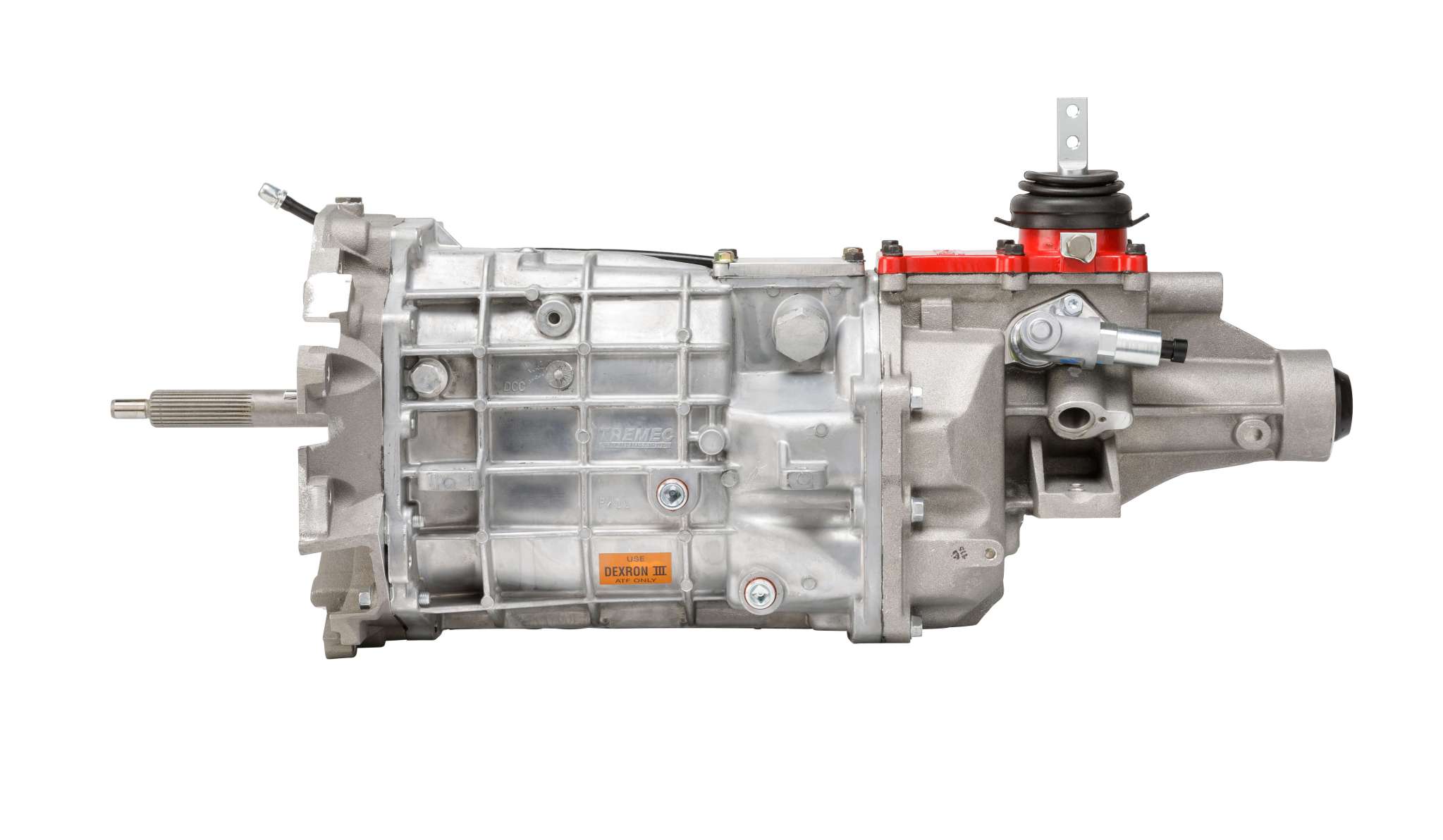

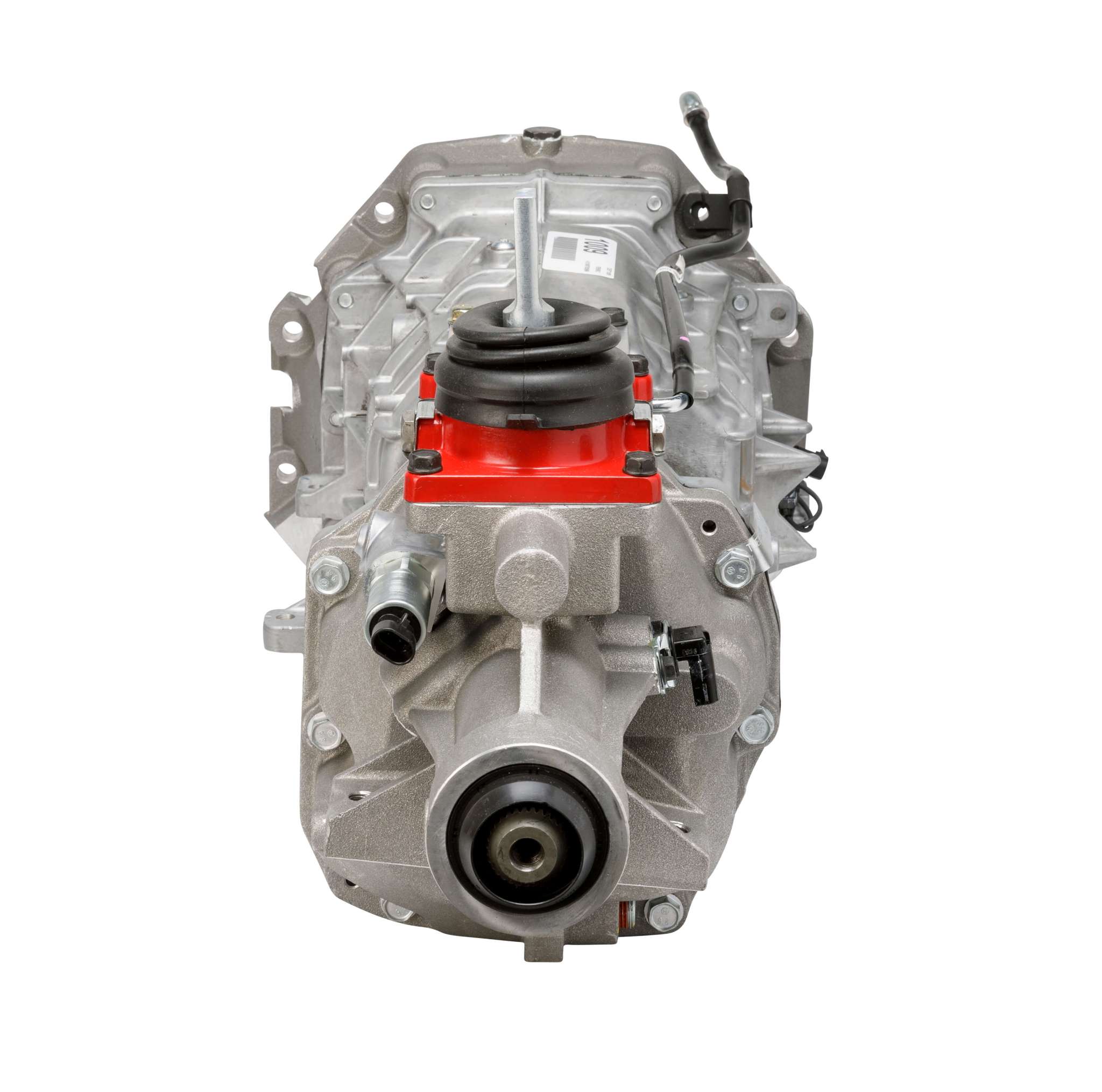

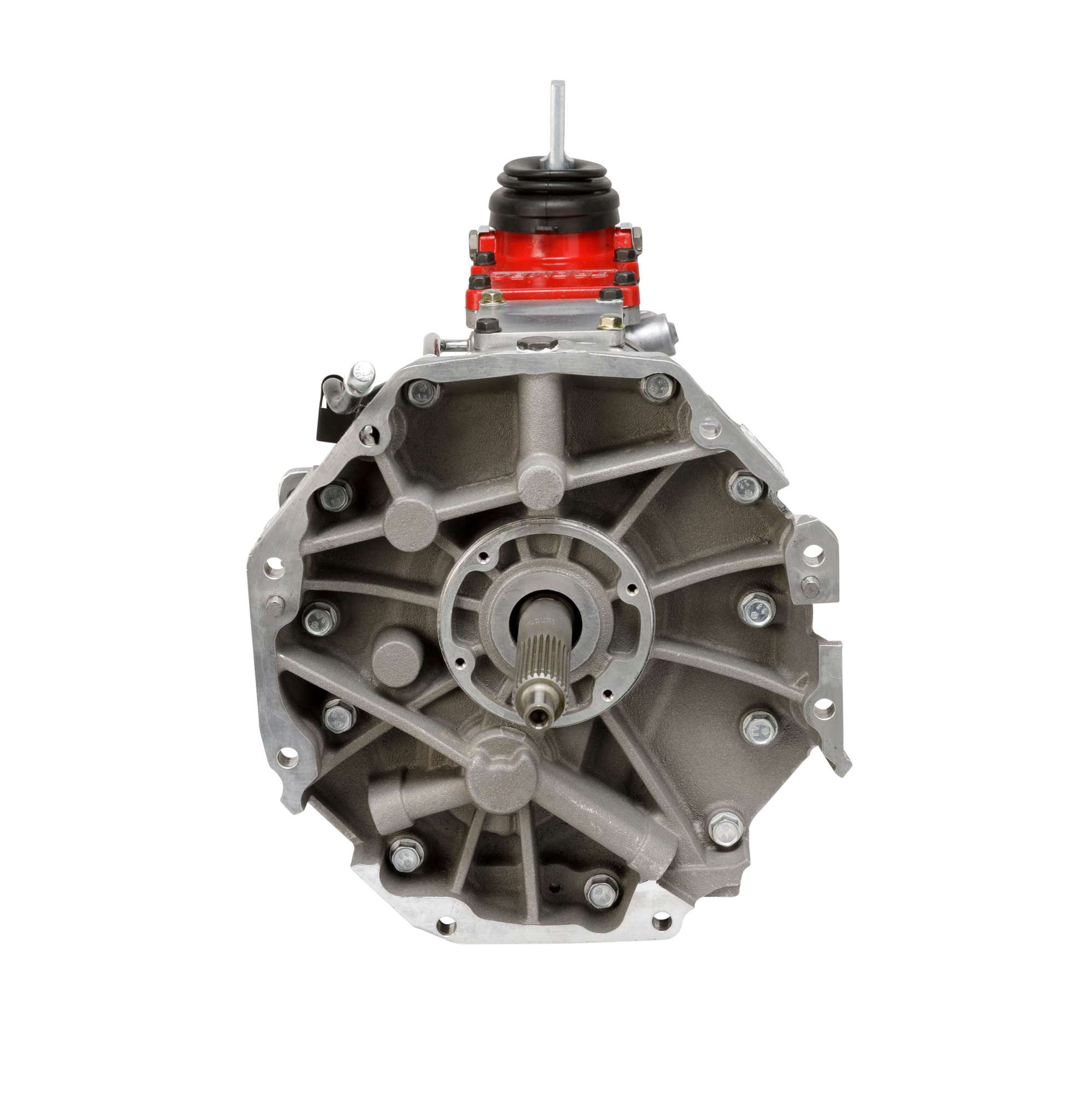

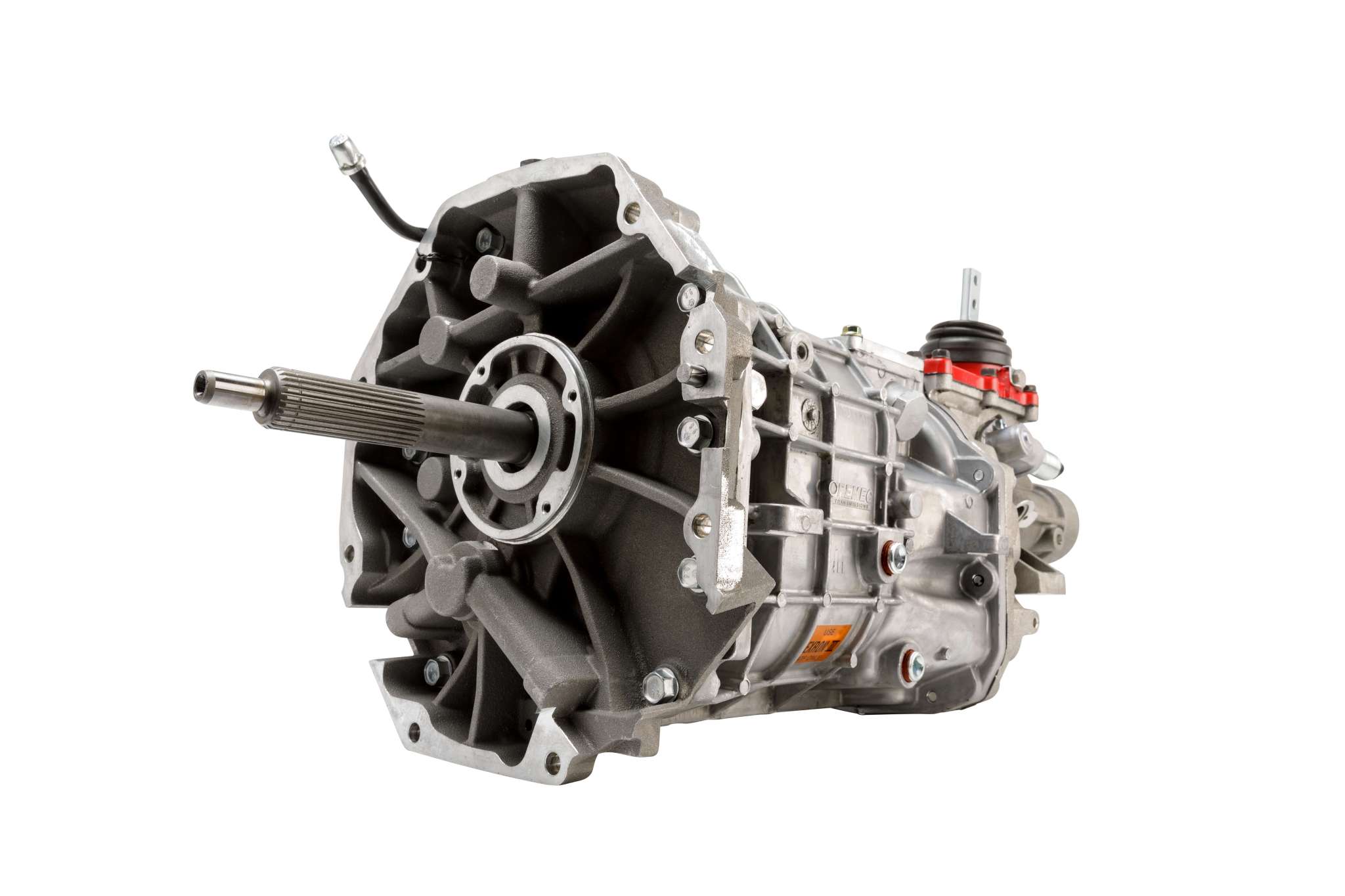

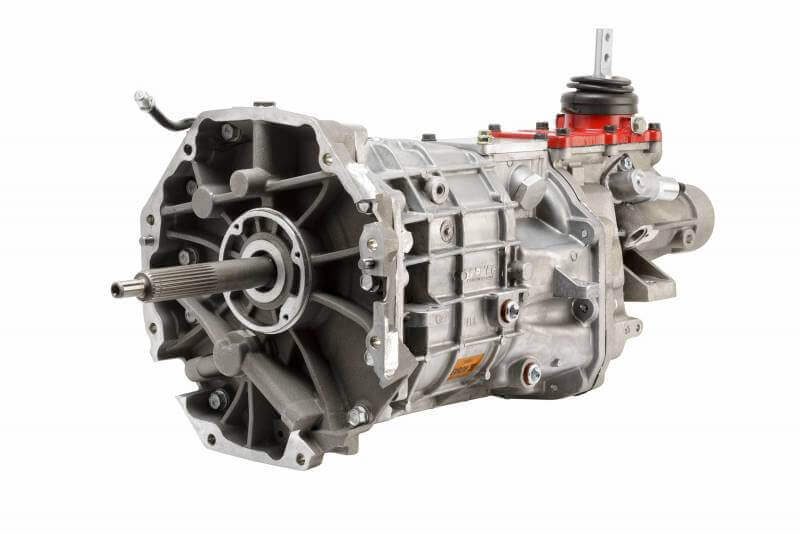

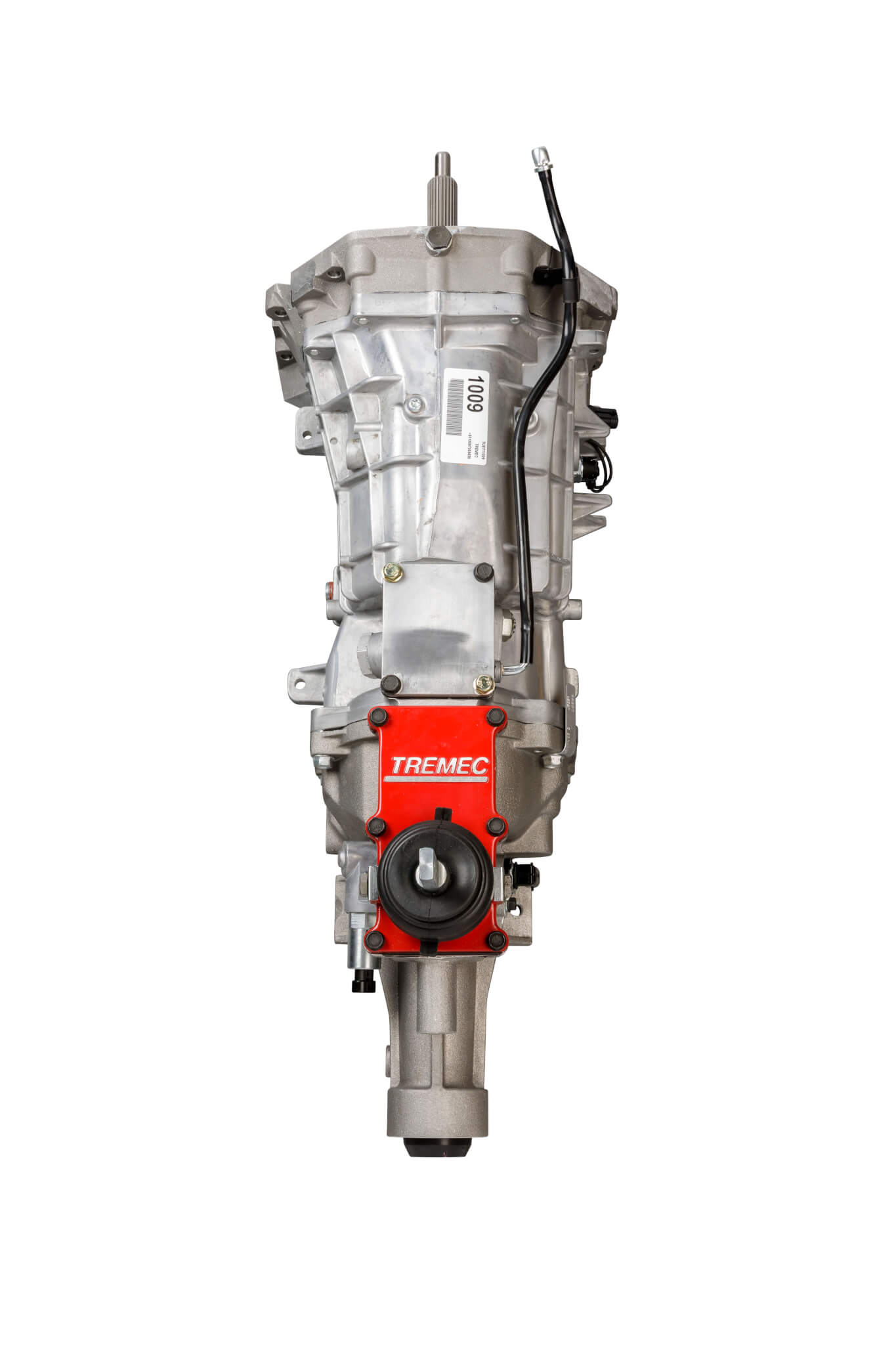

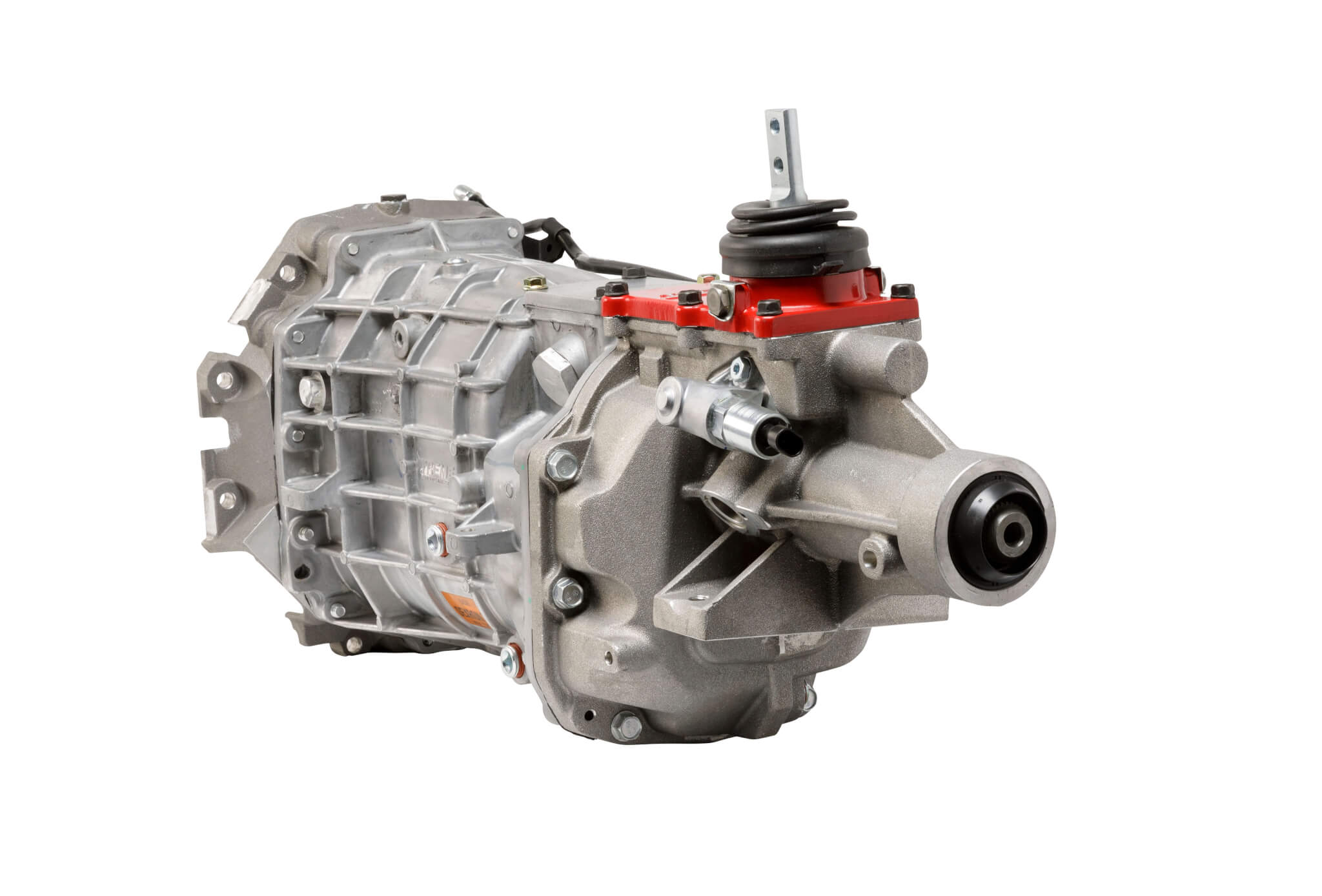

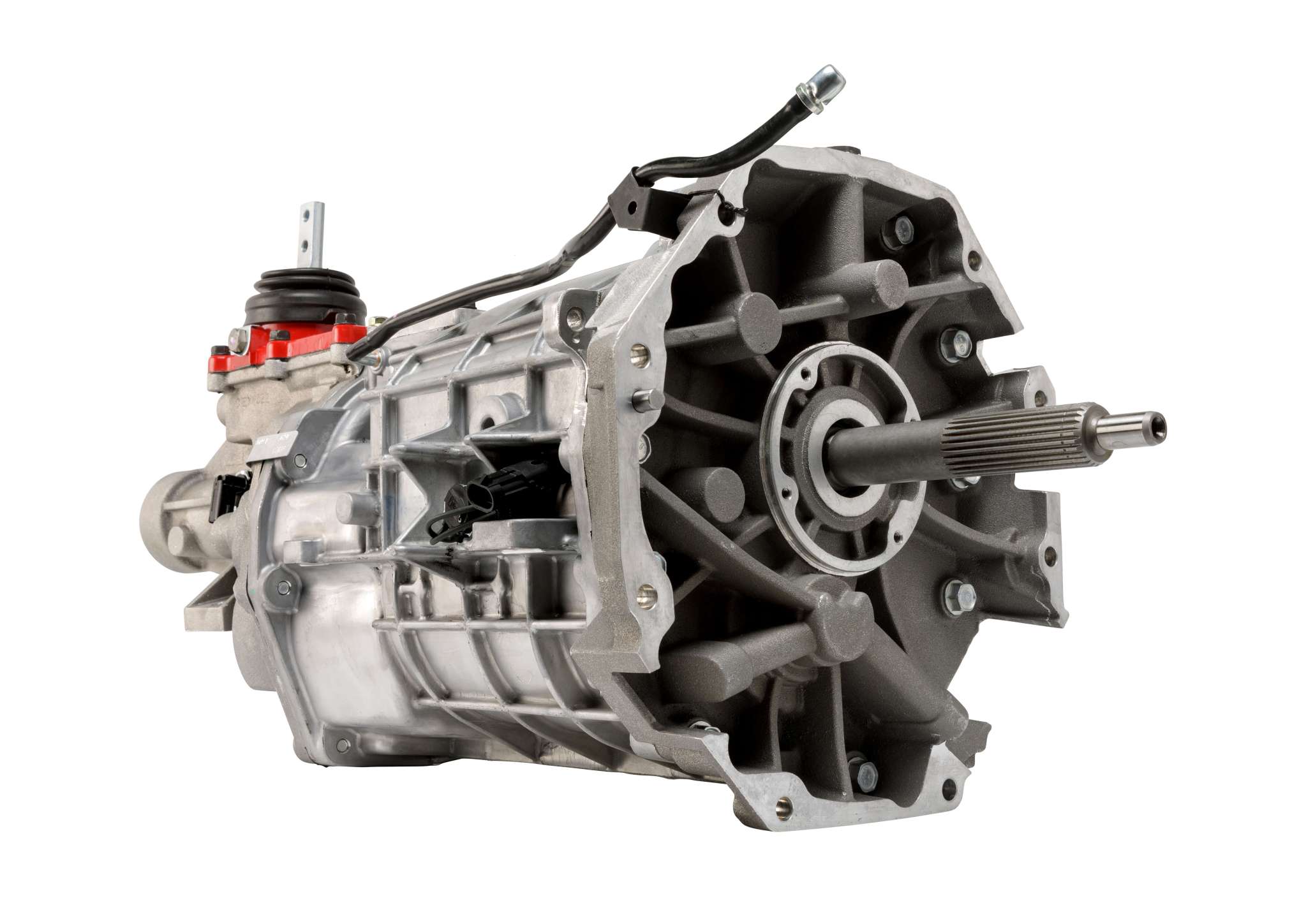

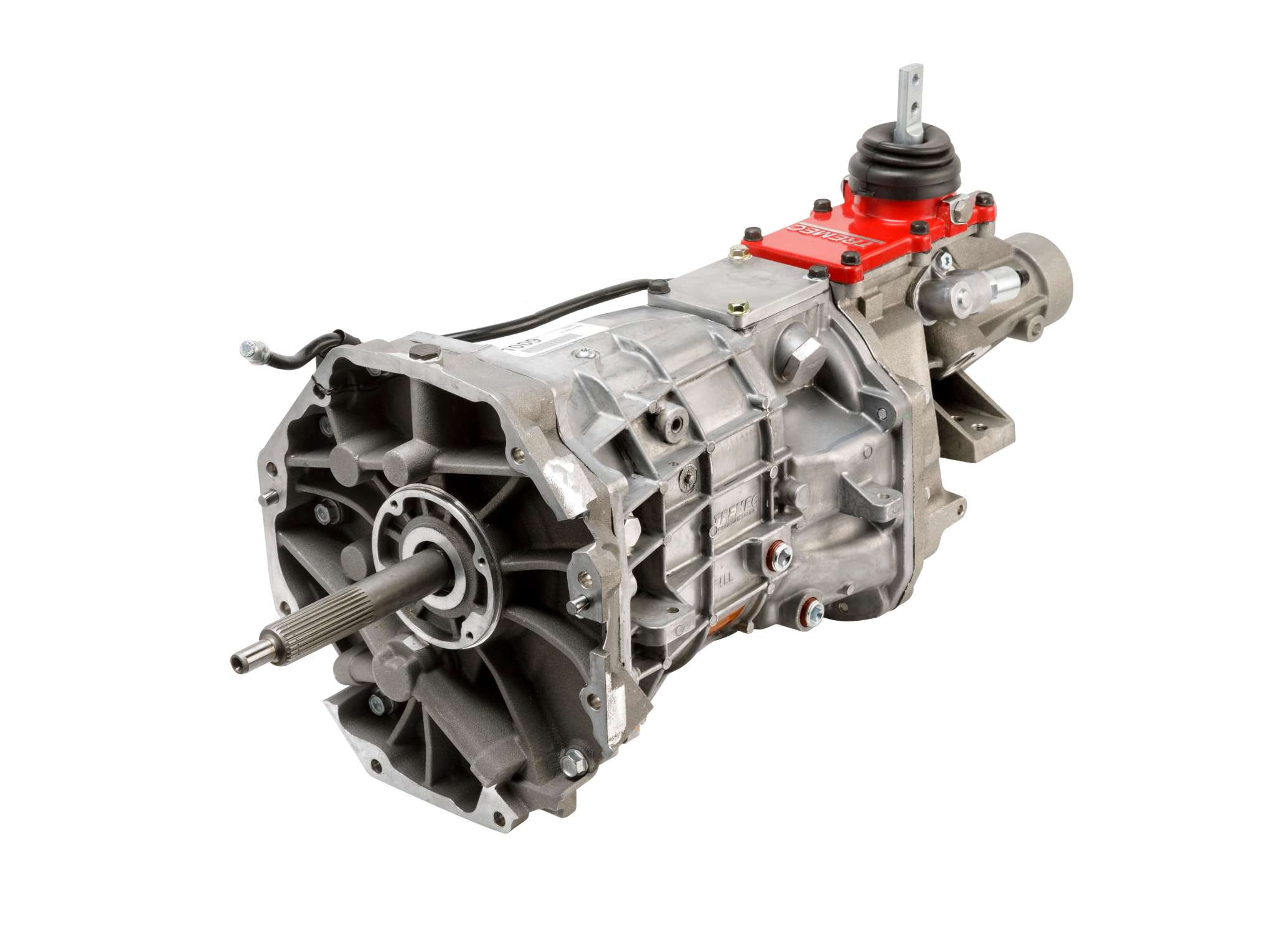

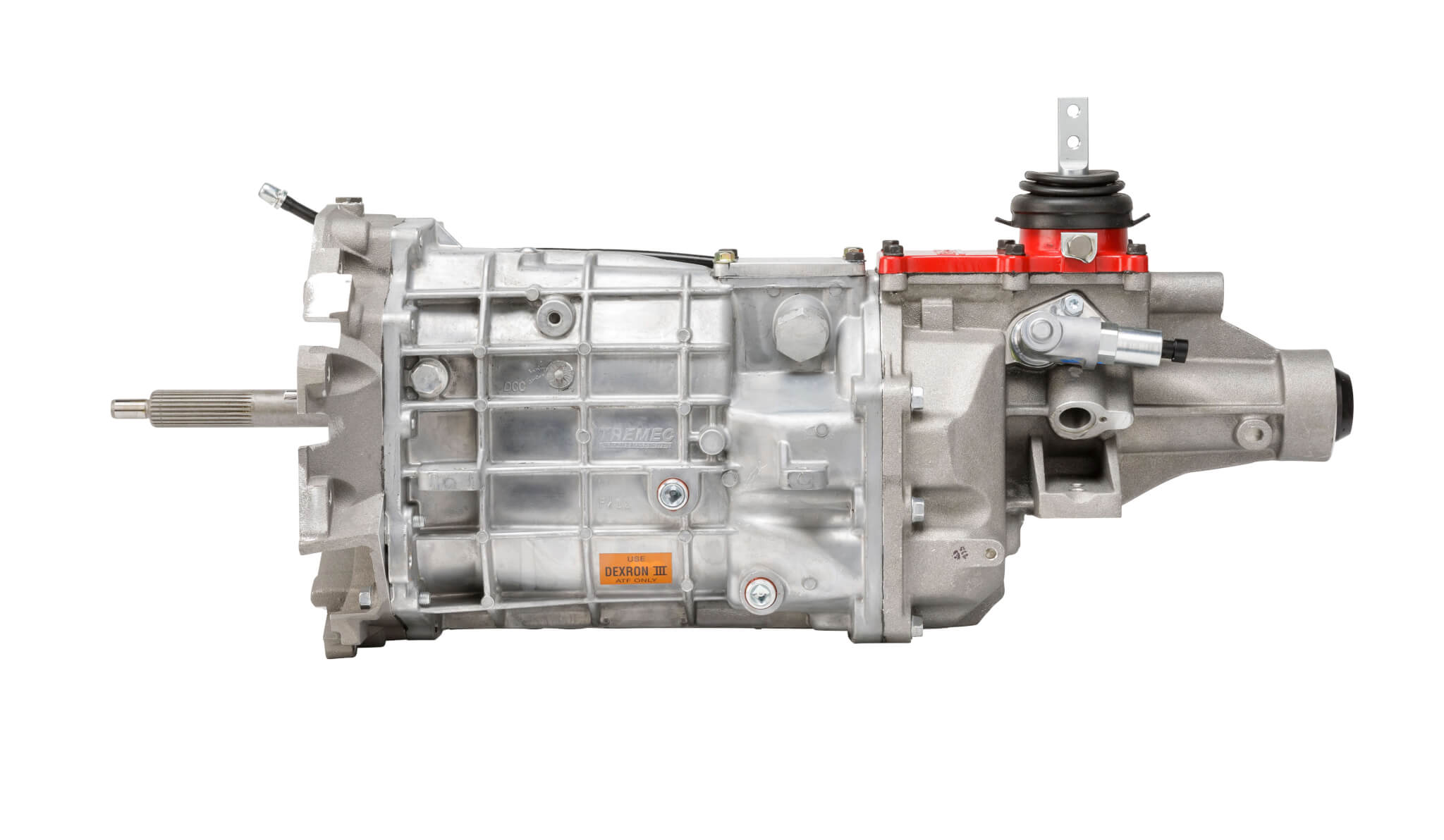

Tremec Magnum Close Ratio 6-speed for GM

Tremec Magnum Close Ratio 6-speed for GM. Need a full kit for your car? Hit the Request for Quote button to get a quote on a full installation kit. Some muscle cars will require tunnel mods to fit. Give us call and we can guide you through the fitment process. Multiple gear ratios available. Use our speed analyzer to determine the ratios you need or give us a call at 931-646-4836

Requires truck freight

$3,195.00

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

Magnum Close Ratio 6-Speed for GM, 700ft-lb constant load rated, unmodified, 26-spline input shaft, 4616 chromoly gears and shafts, one-piece counter shaft, triple cone synchros,

1st 2.66, 2nd 1.78, 3rd 1.30, 4th 1:1, 5th .80 and 6th .63 Part number 11009

 American Powertrain’s exclusive 2 year warranty and customer first extended hour customer service.

Close Ratio version for high performance street and road racing
700 lb-ft. of torque capacity
Reasonably light at 135 lbs. dry
Multiple shifter locations & dual speedo pickups for unmatched versatility
Choice of two different gear ratio sets with unique double overdrive ratios
Incredibly short, extremely low-effort shift throws, with crisp, precise engagement
Modern OE supercar technology for the ultimate pro-tourers, road-racers, and more.

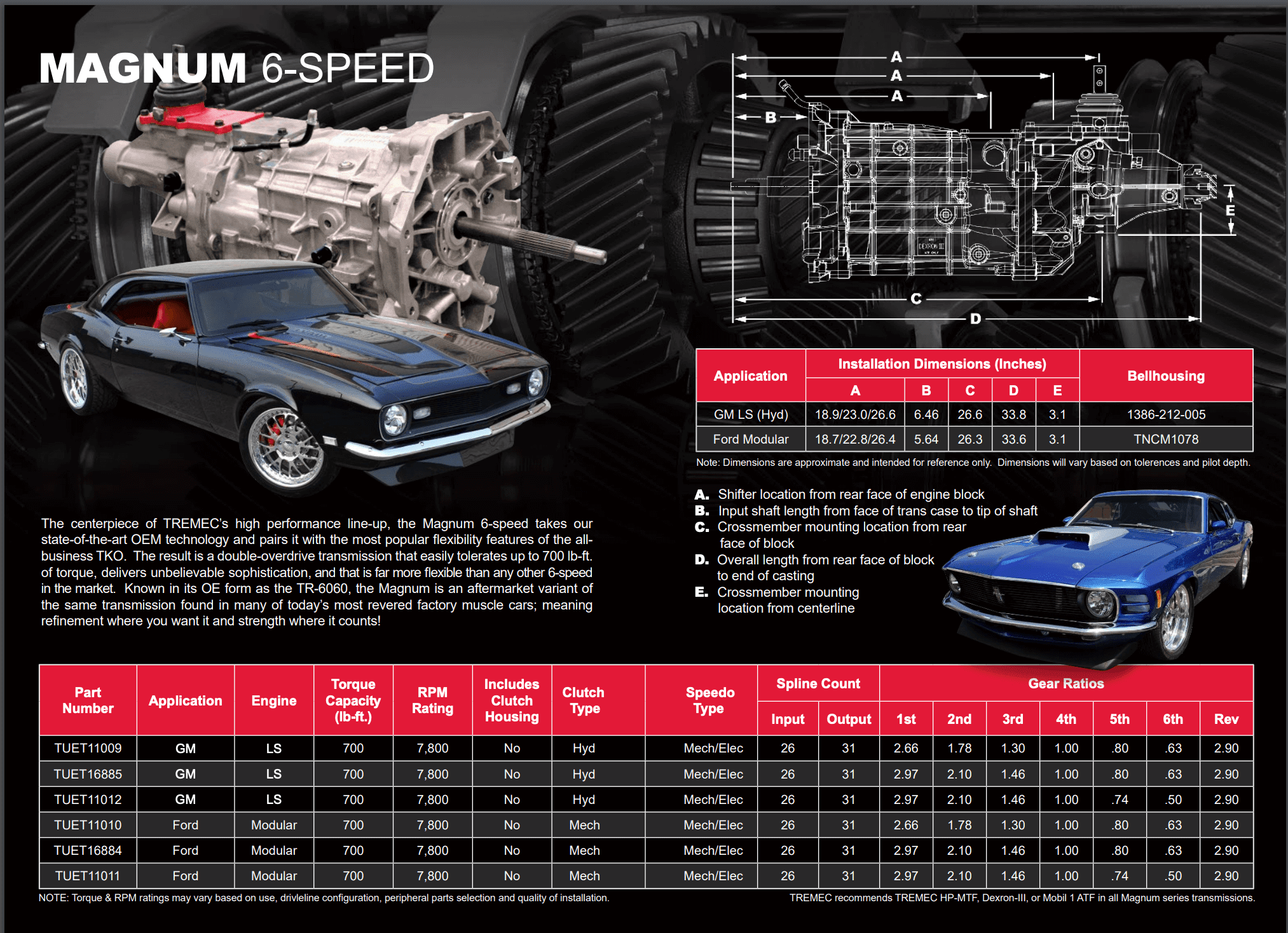

Click on the chart below for available gear ratios and dimensions.

Weight: 150.0000 lbs

Dimensions: W16.0000" x H19.0000" x L40"
