Bell Housing for LS T56/GM Magnum for Hydraulic Clutch SFI Certified

SKU: BHCV-26023 Category:

QT SFI Bell Housing for SBC/BBC to LS T56/GM Magnum for Hydraulic Clutch

$969.95

-

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

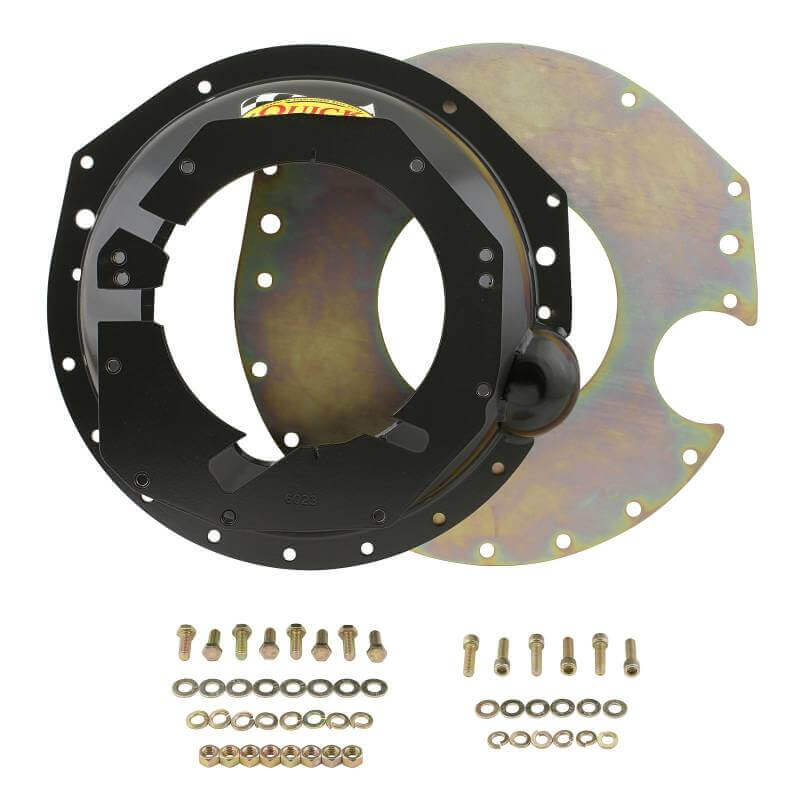

QT SFI Bell Housing for SBC/BBC to LS T56/GM Magnum Hydraulic Clutch



The Quick Time RM-6023 bellhousing connects a small block and big block Chevy engines to a T56 LS-1 Chevy, T-56 Magnum or T-56 Magnum XL transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features:

  • Patent on 16 points of Bellhousing Design & Process
  • Designed For Use With Hydraulic Throw Out Bearing
  • Fits Up To A 168 Tooth Flywheel With 11 in Clutch
  • Utilizes OEM Style Starter Attachment / Placement
  • Bellhousing Depth 5.950 In
  • Weight 22lbs
  • S.F.I. 6.1 Certified
  • Made In The USA
  • Include Grade 8 Hardware
Brand Quick Time
Certification 6.1 SFI
Clutch Diameter 11″
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Chevy Big Block
  Chevy LT1
  Chevy Small Block
Engine Plate RM-6023-C
Finish Semi-gloss
Flywheel 153/168 Tooth
Height 5.950 inch
Material Steel
Product Type Bellhousing
SFI Certification 6.1
Trans Bore N/A
Trans. Bore Diameter N/A
Transmission T56 Chevy LS
  T56 Magnum
Transmission Type Manual
Warranty Limited 90 Day Warranty
Weight 22#

Weight: 36 lbs

Dimensions: W19" x H8" x L19"
