Description

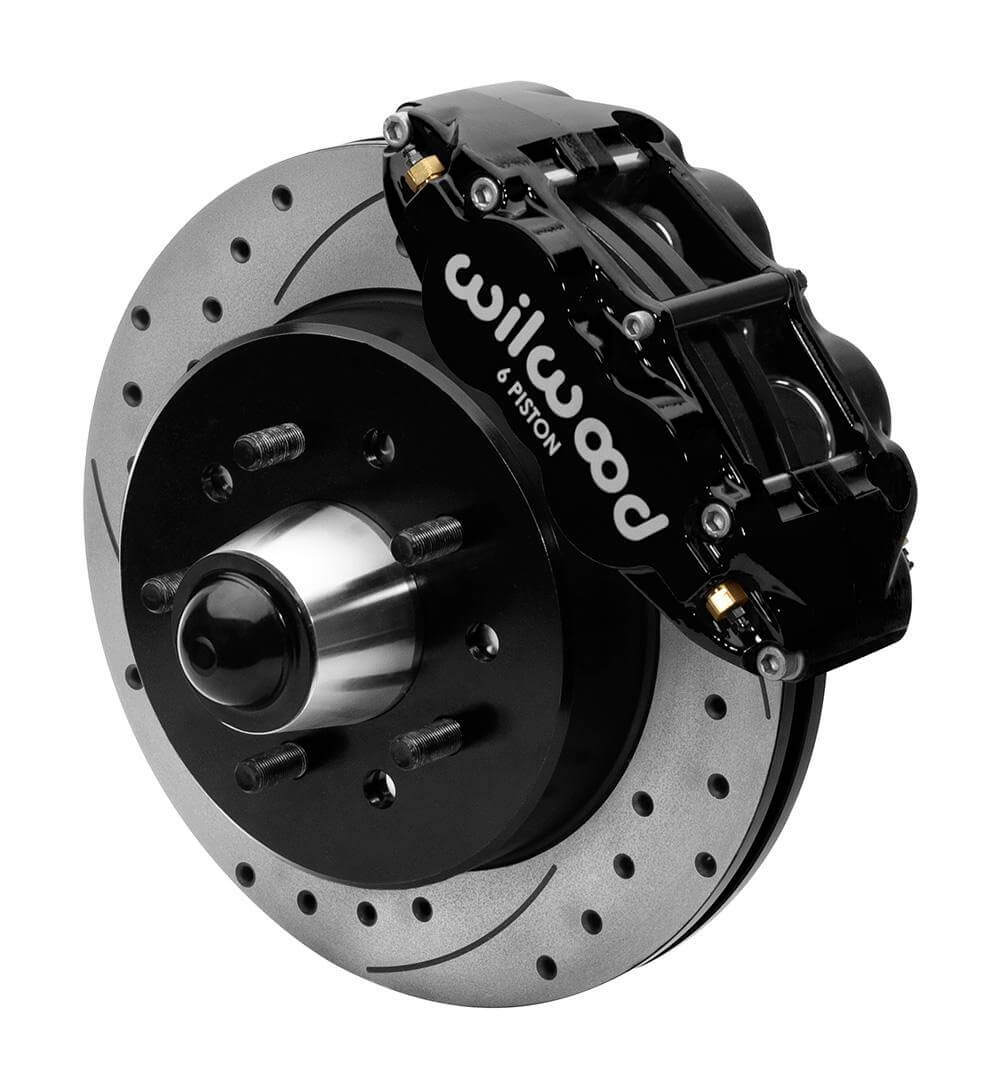

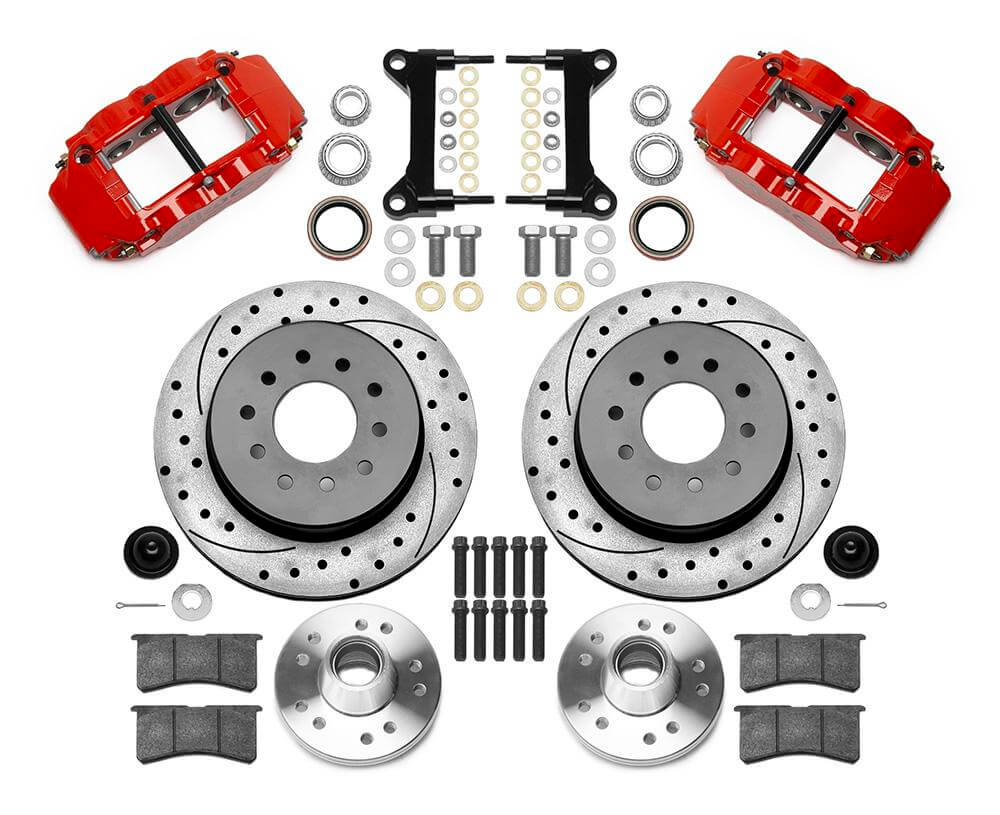

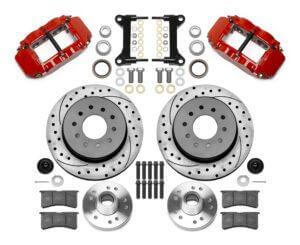

Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits
Wilwood forged narrow Superlite 6R Big Brake front brake kits upgrade your late model ride with increased brake capacity and complimentary style. They’re application-specific for a simpler installation and offer full compatibility with OE master cylinder output and ABS functions, where used. These front brake kits feature the extremely durable and efficient body design of their forged narrow 6-piston radial mount calipers. You can choose from optional caliper finishes and rotor designs to meet your personal style and braking requirements. Don’t just replace—upgrade to generate big stopping power with Wilwood forged narrow Superlite 6R Big Brake front brake kits.
1963-87 Chevy C10 and Squarebody- Note this is a 5-lug set up
| Kit Summary | |
|---|---|
| OE Hub Offset: | +0.41 |
| (Increase / Decrease Track Width) | |
| Spindle Type: | Drop Spindle |
| Mount Type: | Radial |
| Caliper Type: | 6 – Black Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req’d*: | 15 |

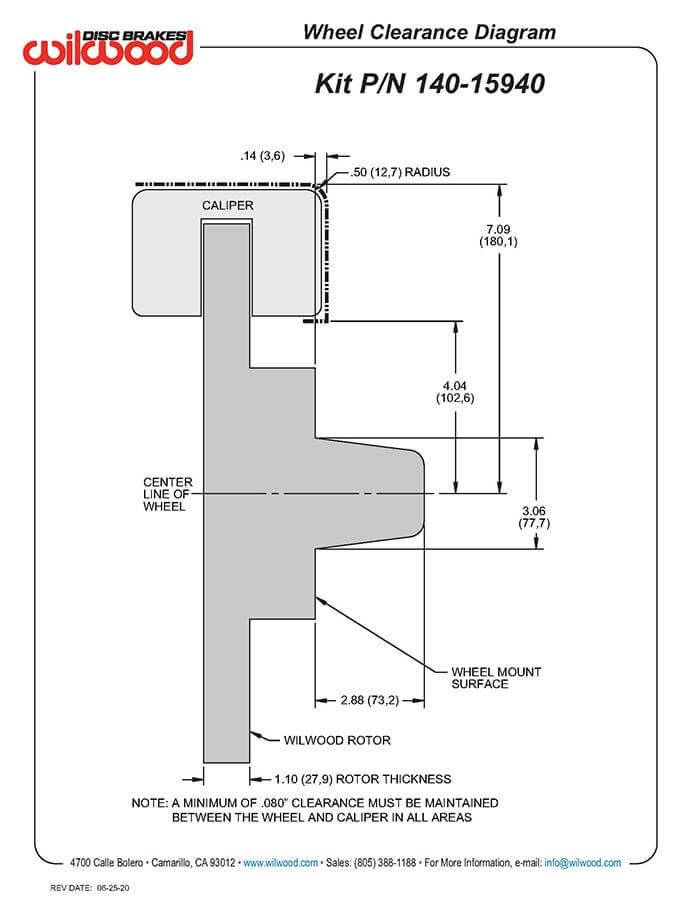

| *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram | |
Requires spindles- Check application link
For more applications click here
