Description
Ford Mustang SN95 T-56 Magnum Transmission Kit
- 30-50% increase in fuel economy
- 700 Ft/Lbs Torque capacity!
- Low RPM cruising for greatly reduced driver fatigue and an improved highway driving experience.
- Reduced engine wear leading to longer engine life
- Cooler engine operating temperatures
- Reduced NVH (noise – vibration – harshness)
- BOLTS IN! No modification to the car is required
Tremec T56 Magnum Gear Ratios
Close Ratio 2.66, 1.78, 1.30, 1.00, 0.80, 0.63
Wide Ratio 2.97, 2.10, 1.46, 1.00, 0.74, 0.50

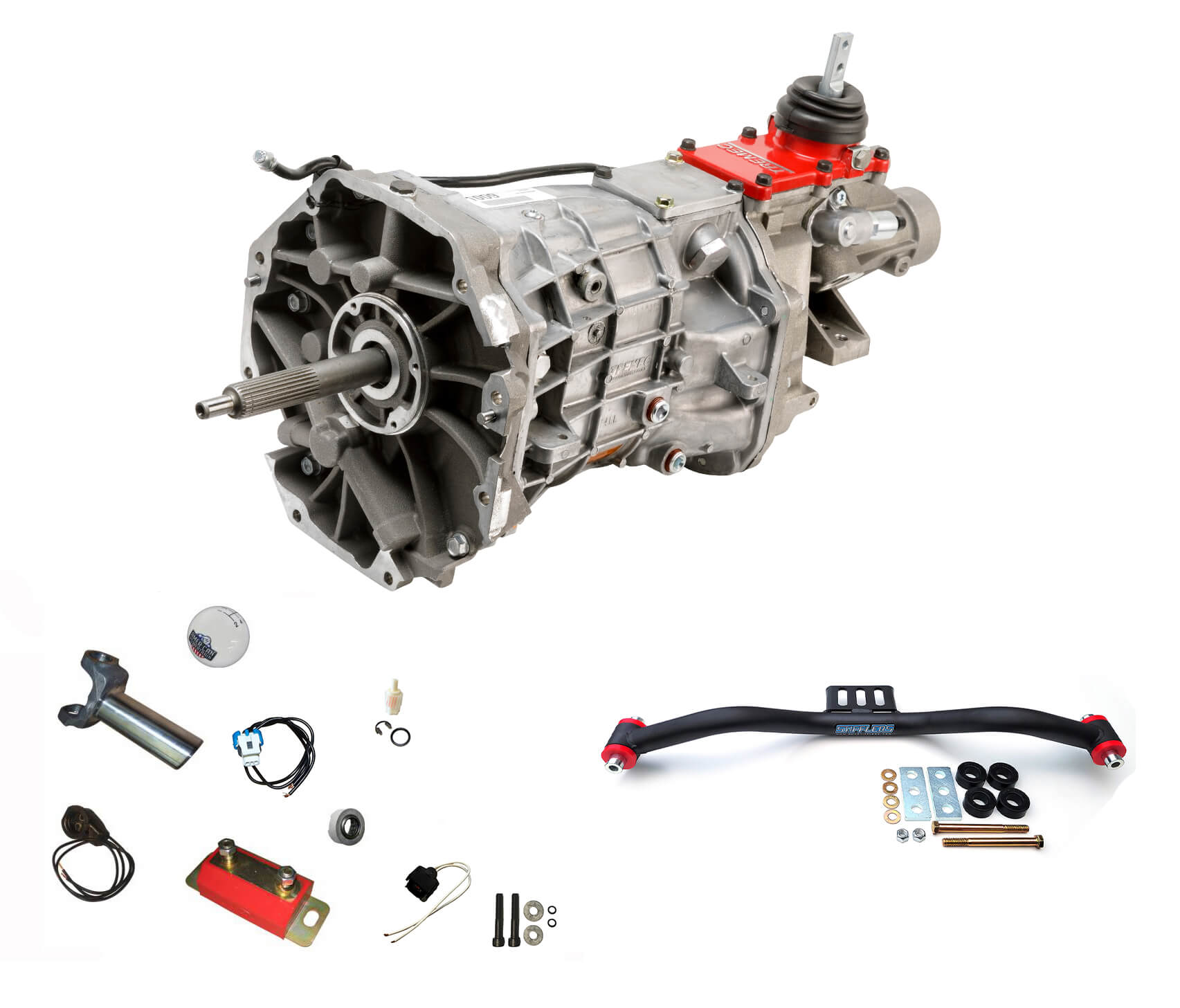

Kit includes:
- Magnum 6-speed
- 31-spline yoke (you will need to have your driveshaft shortened and use this yoke supplied in the kit)
- Cross Member -bolt-in
- Transmission Mount – Polyurethane
- Pilot Bearing – Stainless rollers, grease pre-pak
- Reverse Light Harness – Weatherseal
- Speedometer Conversion
- Shifter Knob
- Reverse Lock-out Harness
- Hardware, Instructions, Warranty
Optional Parts:

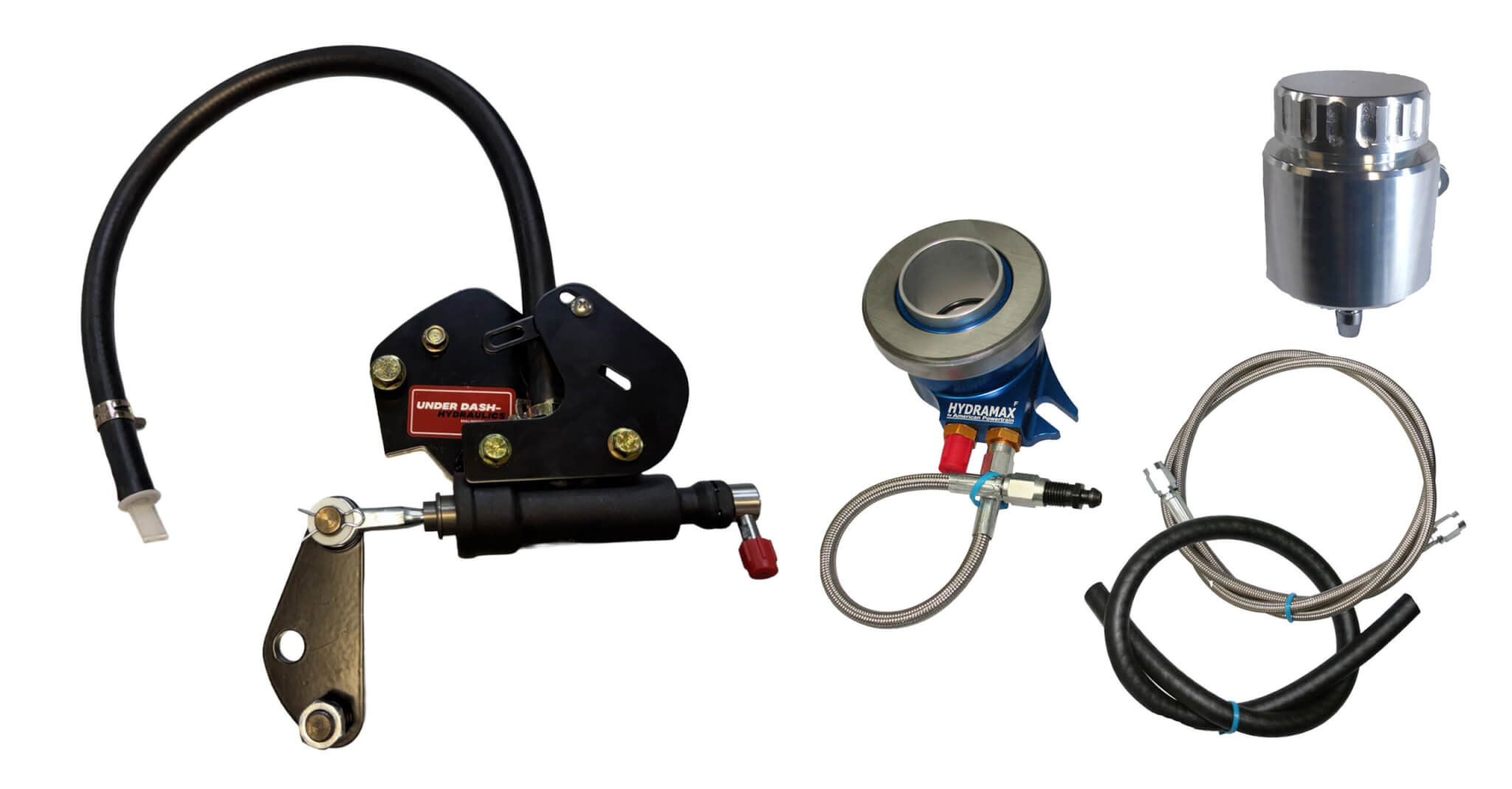

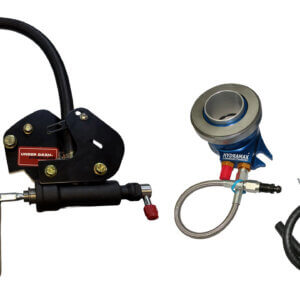

- Hydramax Hydraulic Clutch

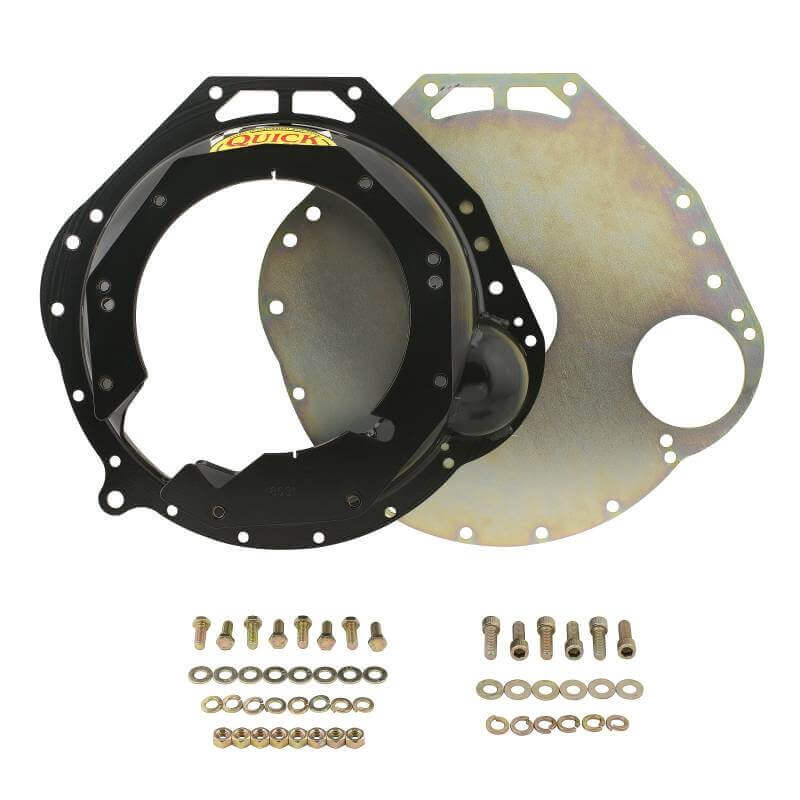

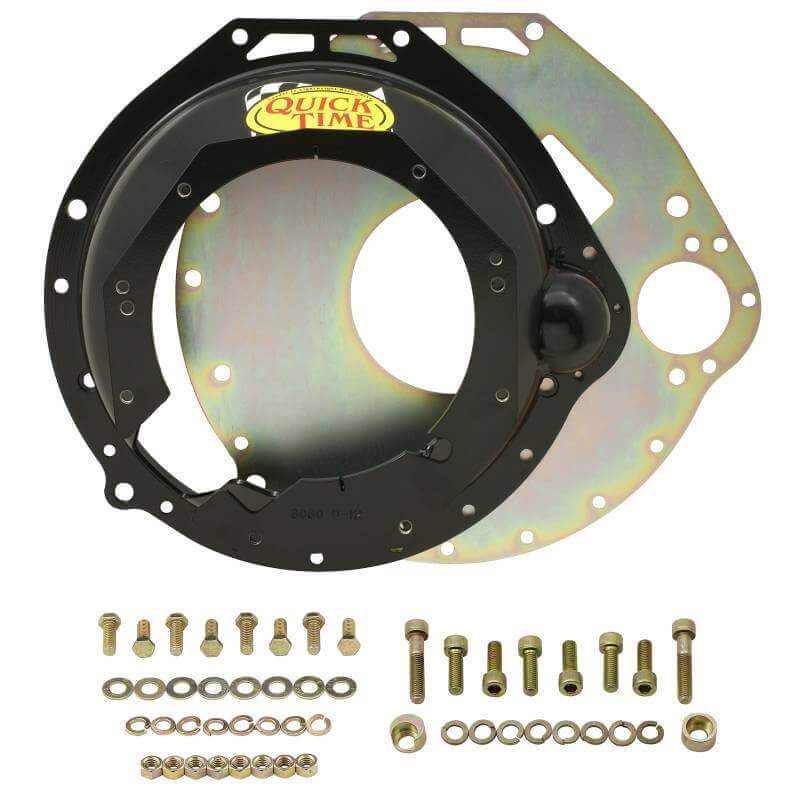

- Bell housing
- Flywheel
- Shifter
(got an LS swap? Give us a call we can make this kit work for your LS!)
You will need a 26-spline clutch and Small Block Ford to Magnum bellhousing. We also have bell housings for Mod Motor, Coyote and Godzilla engines.
