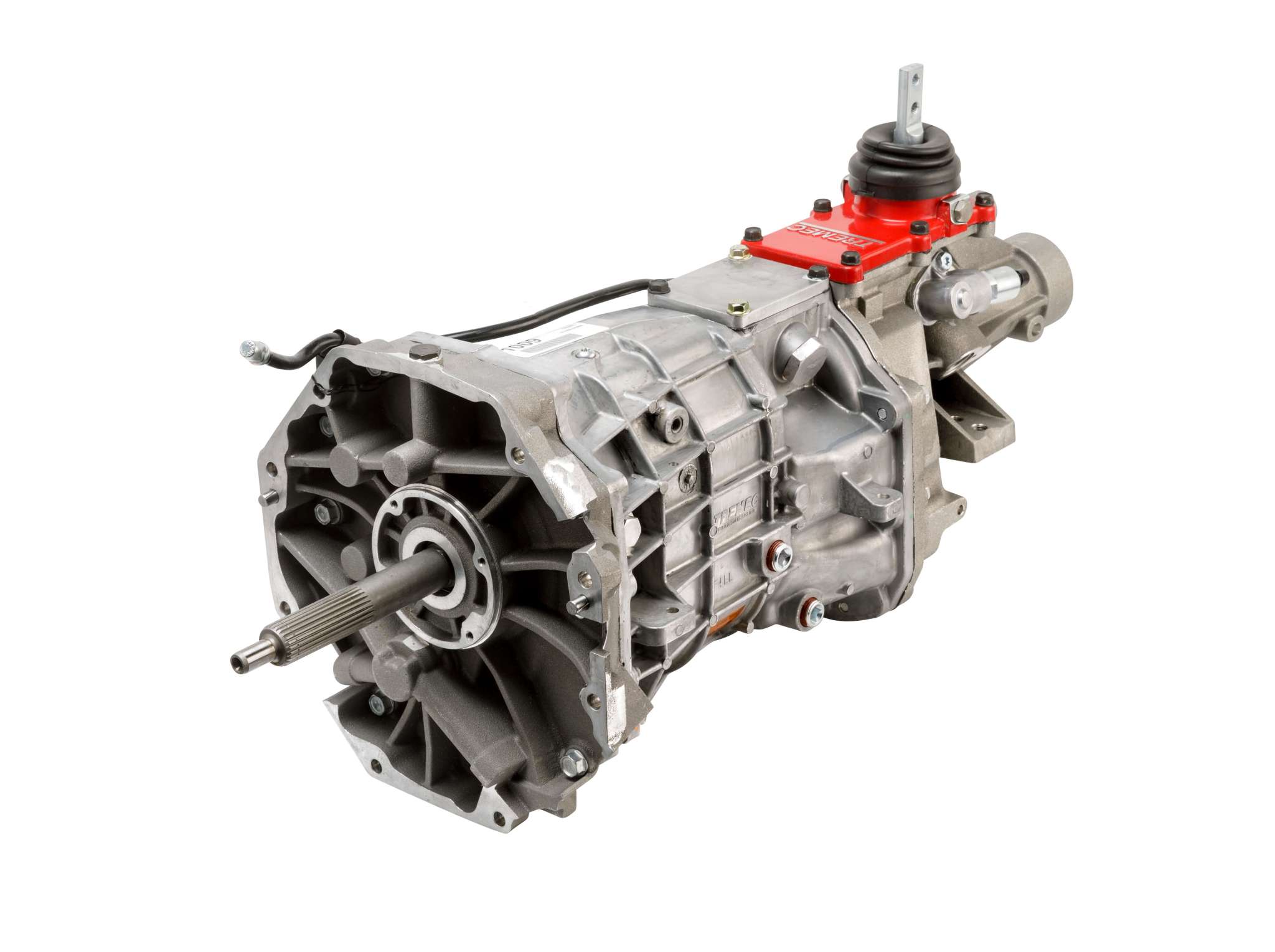

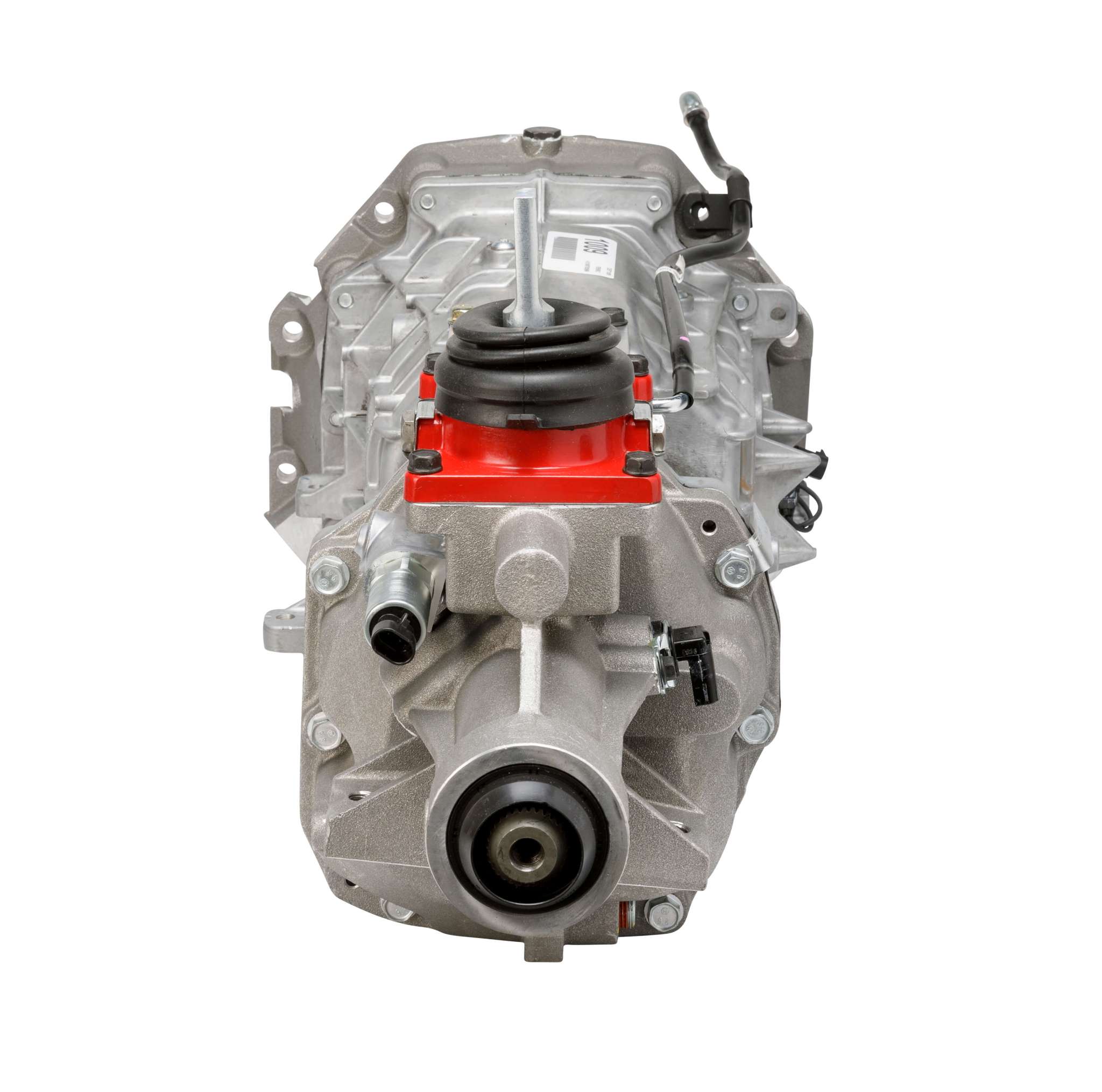

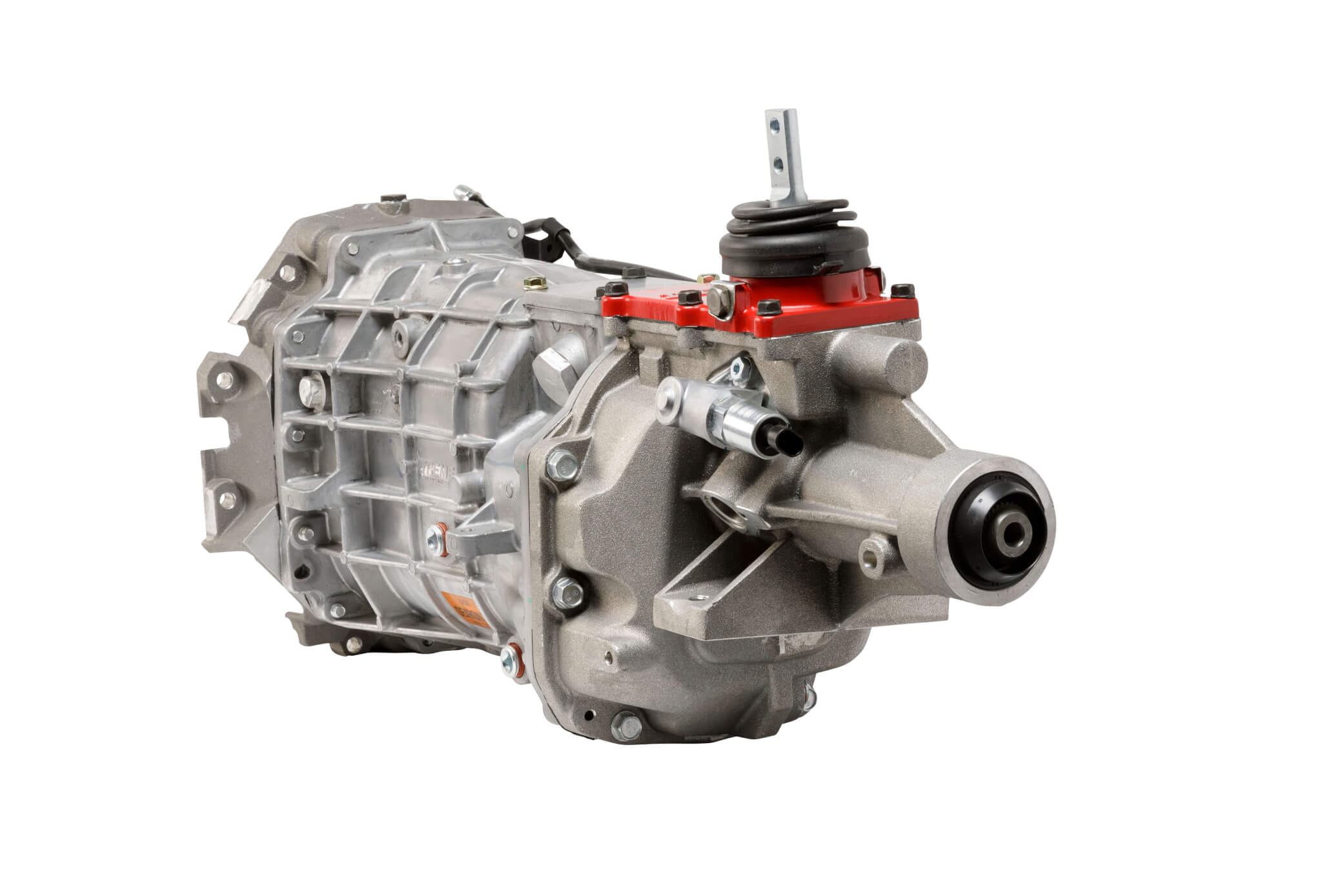

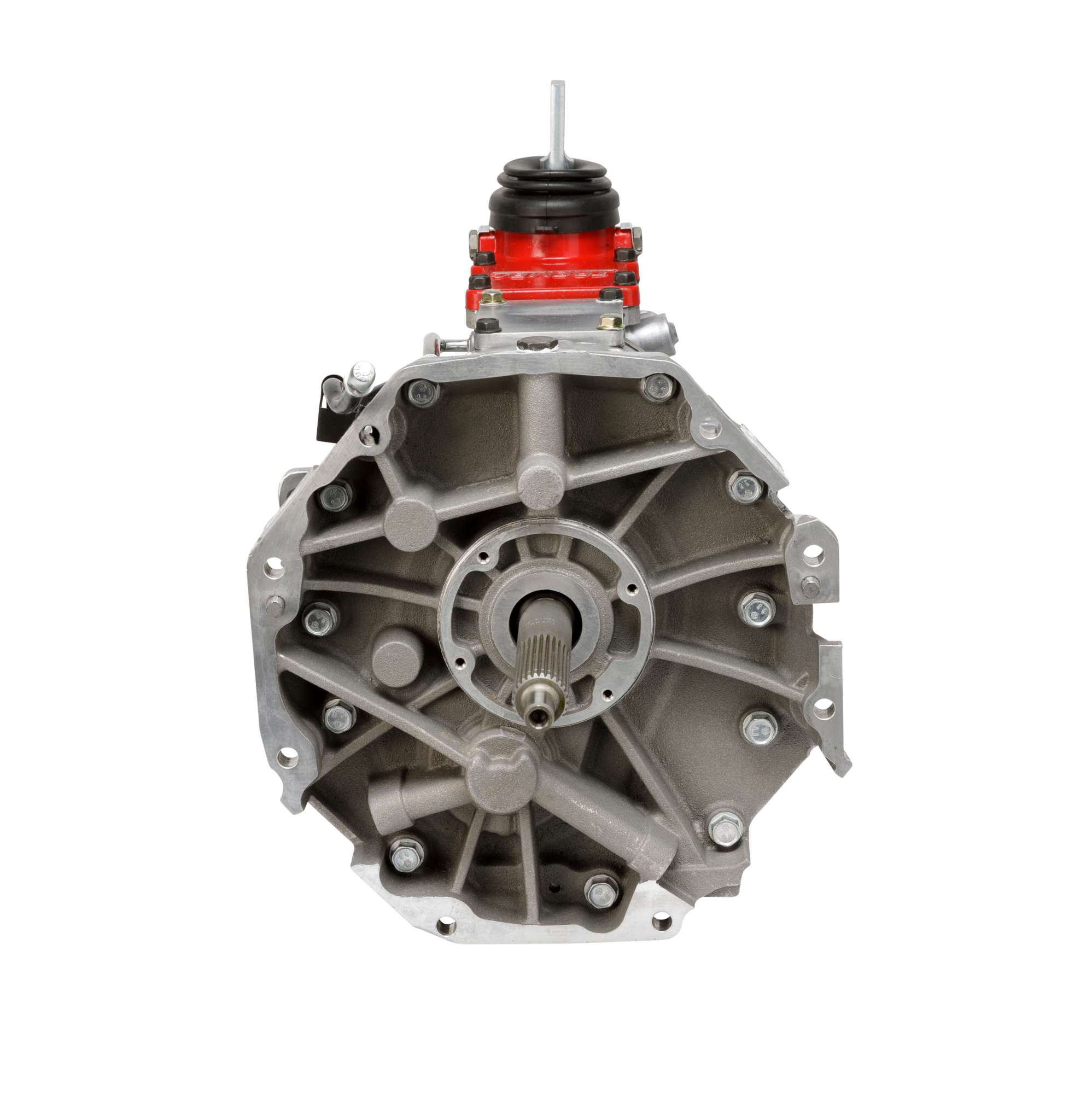

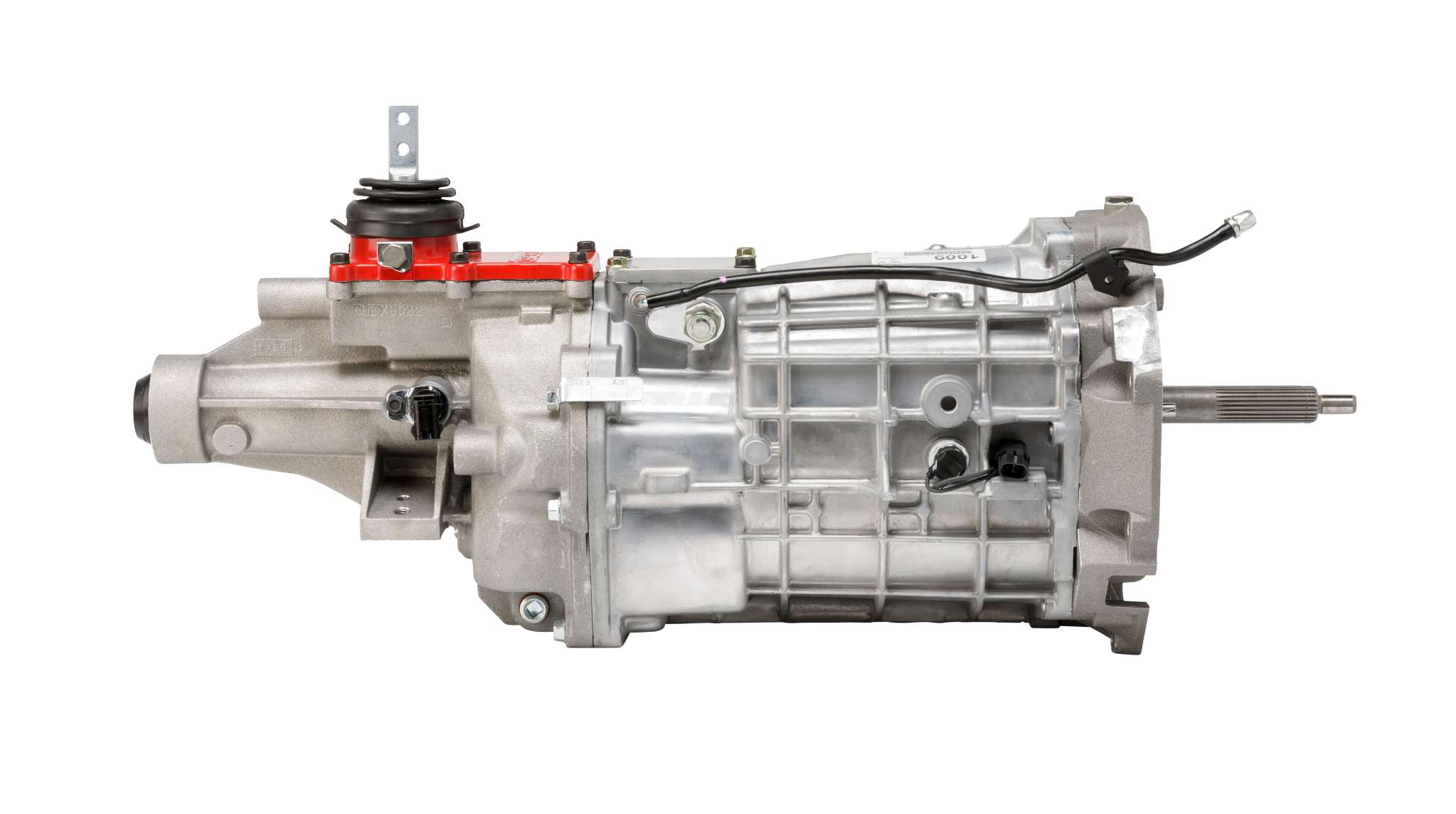

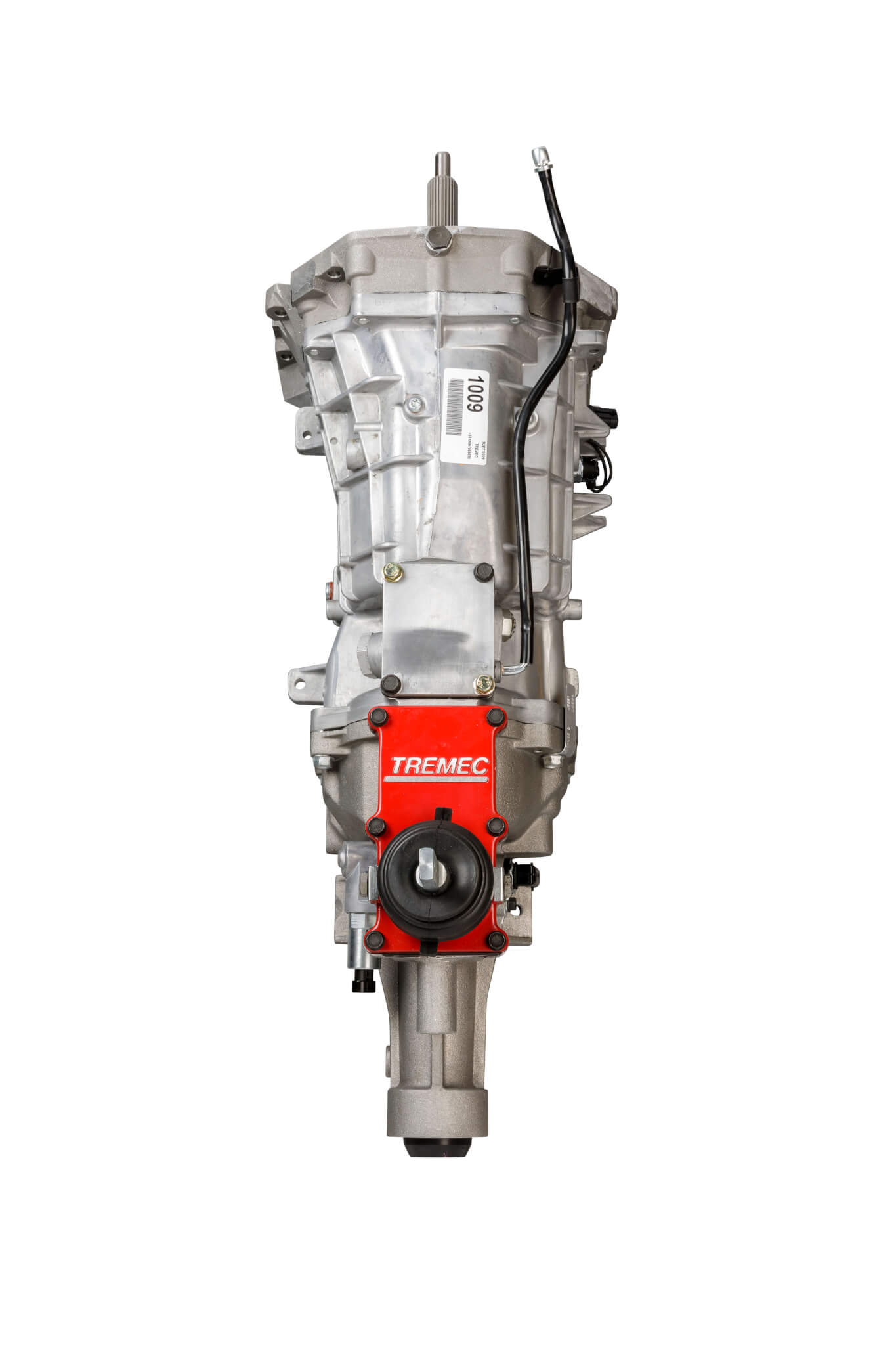

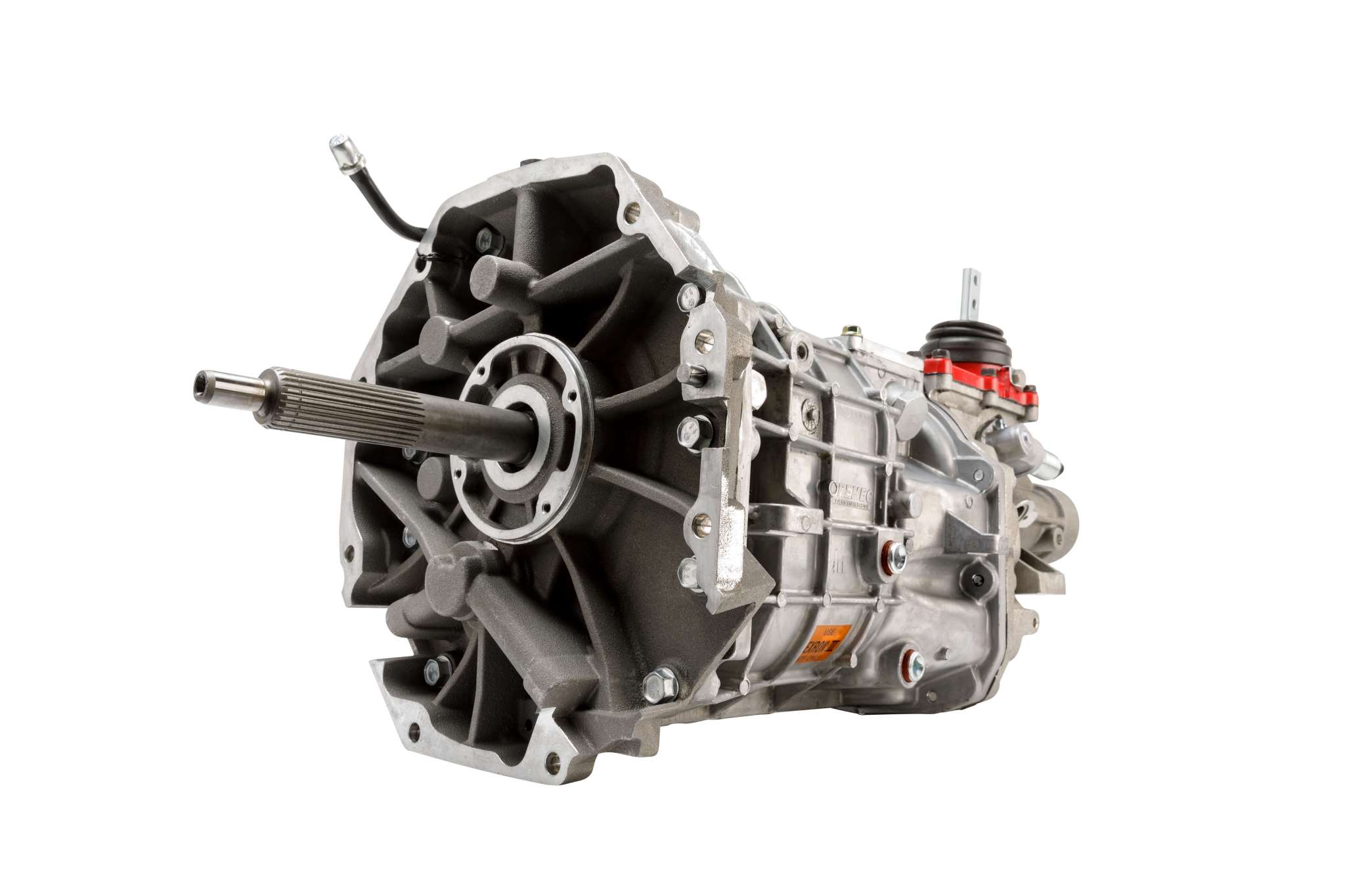

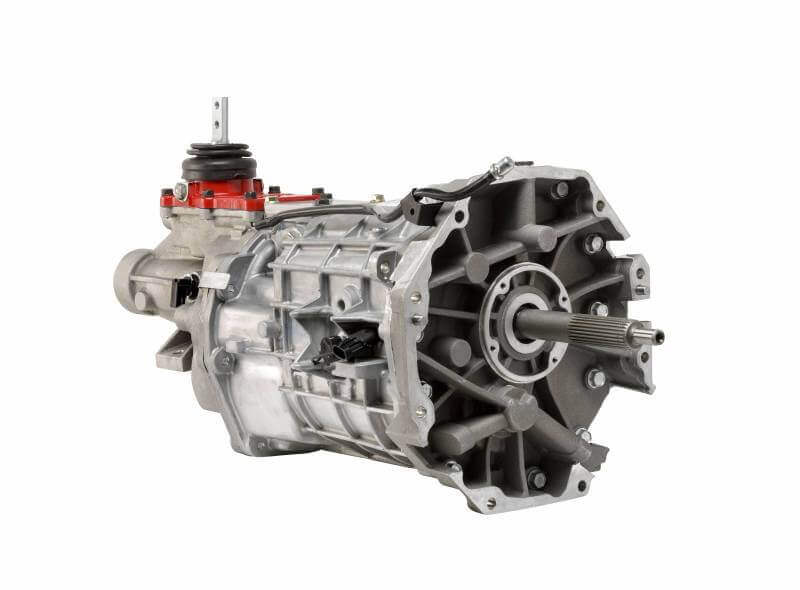

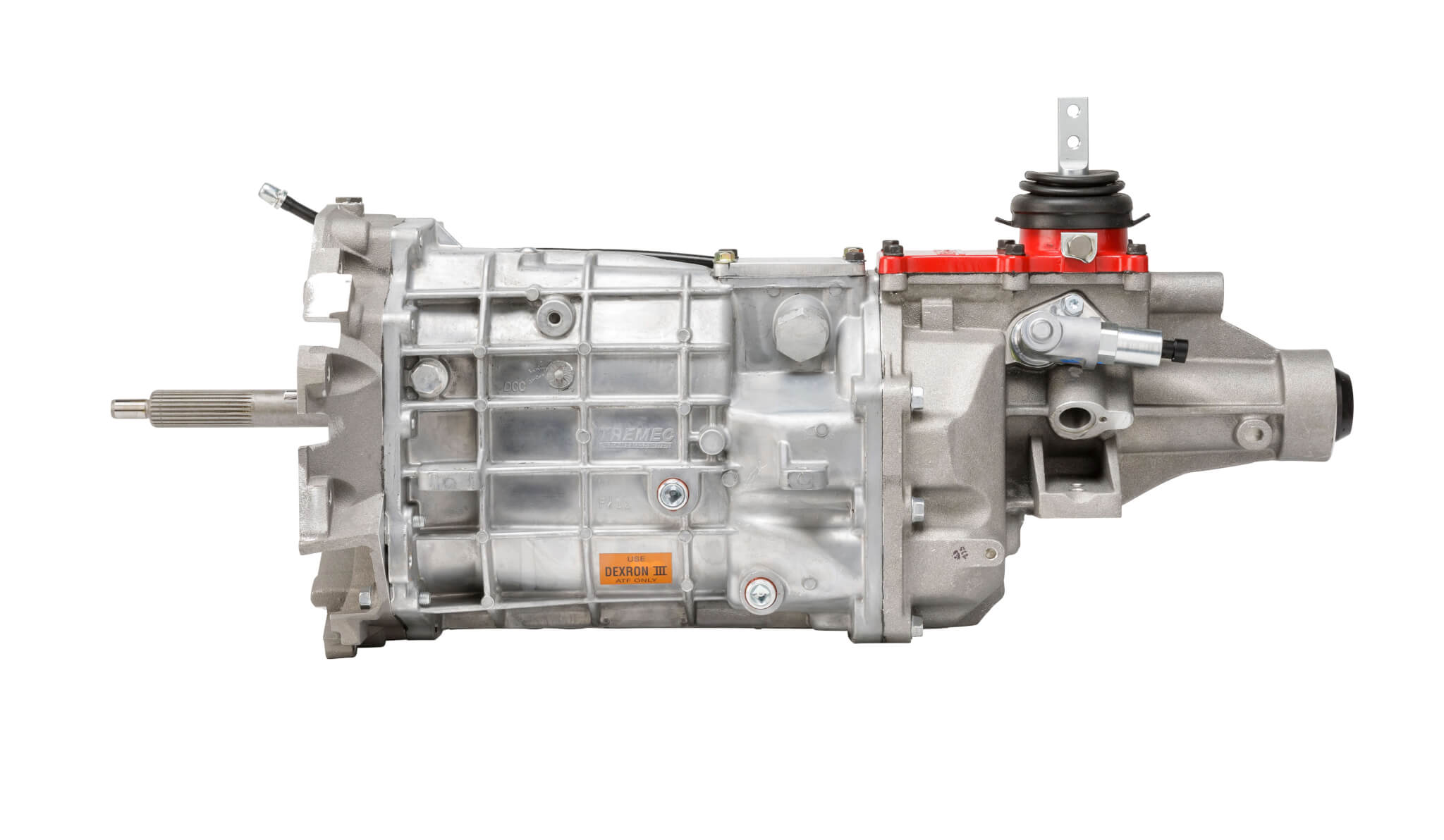

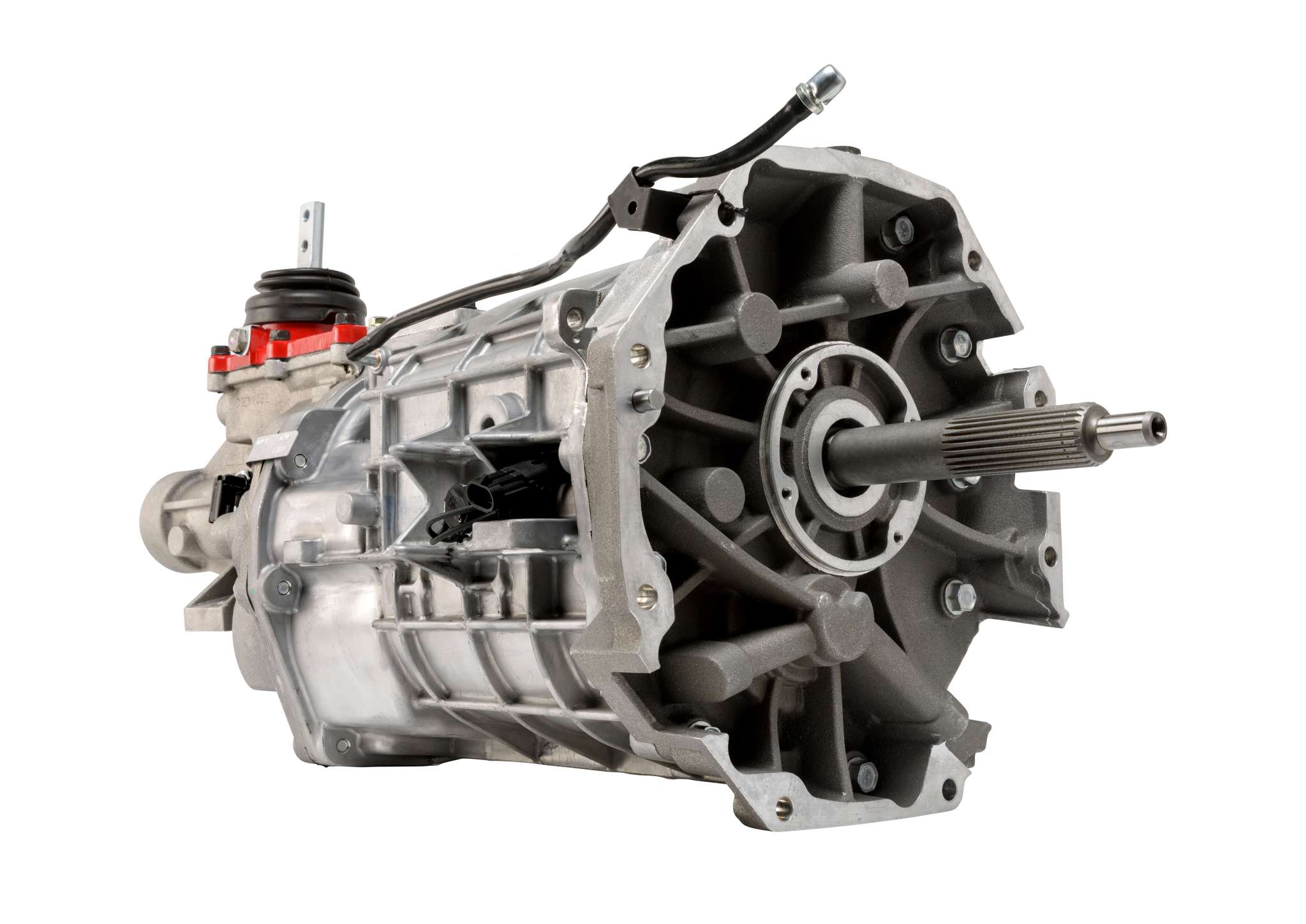

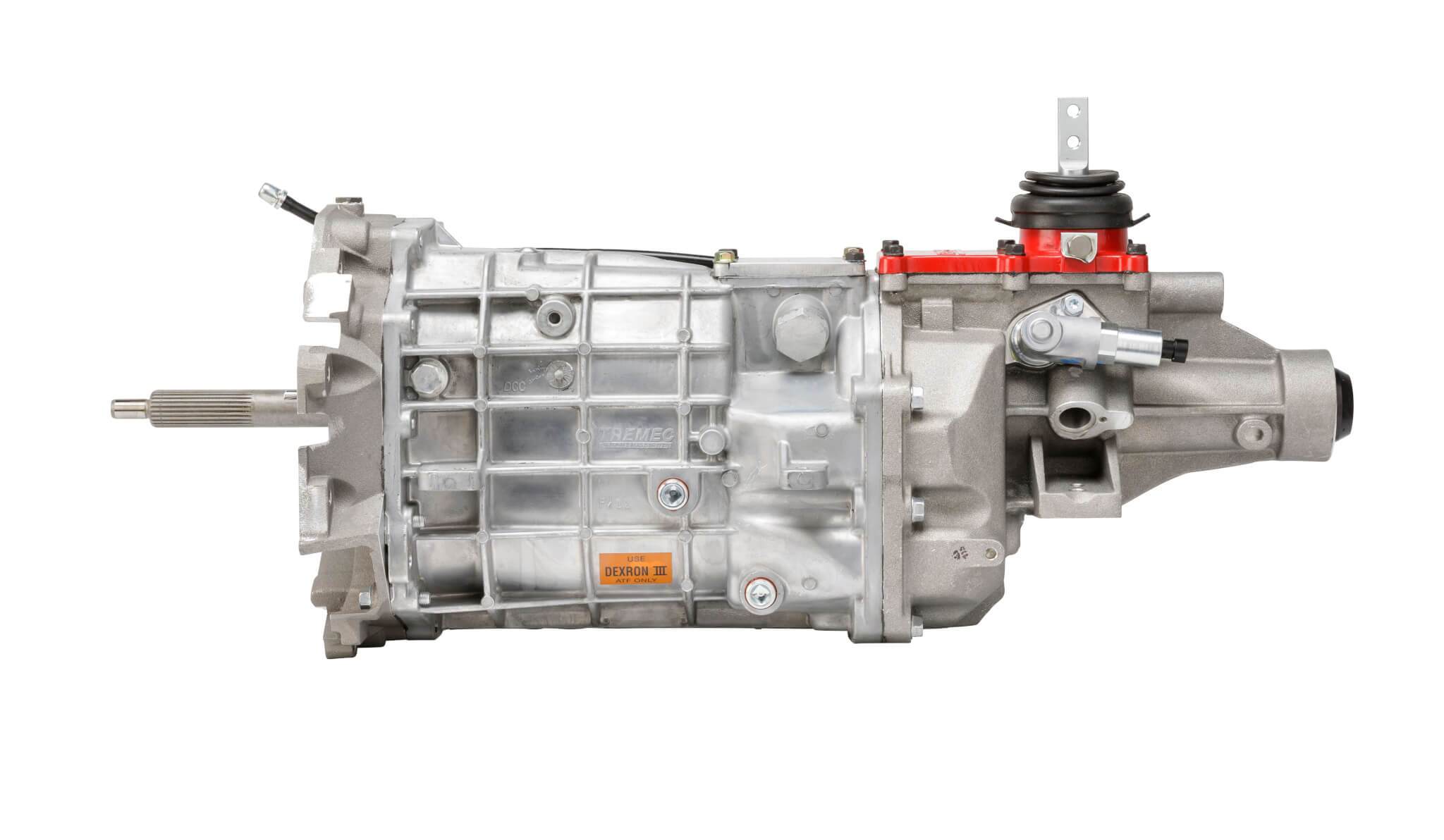

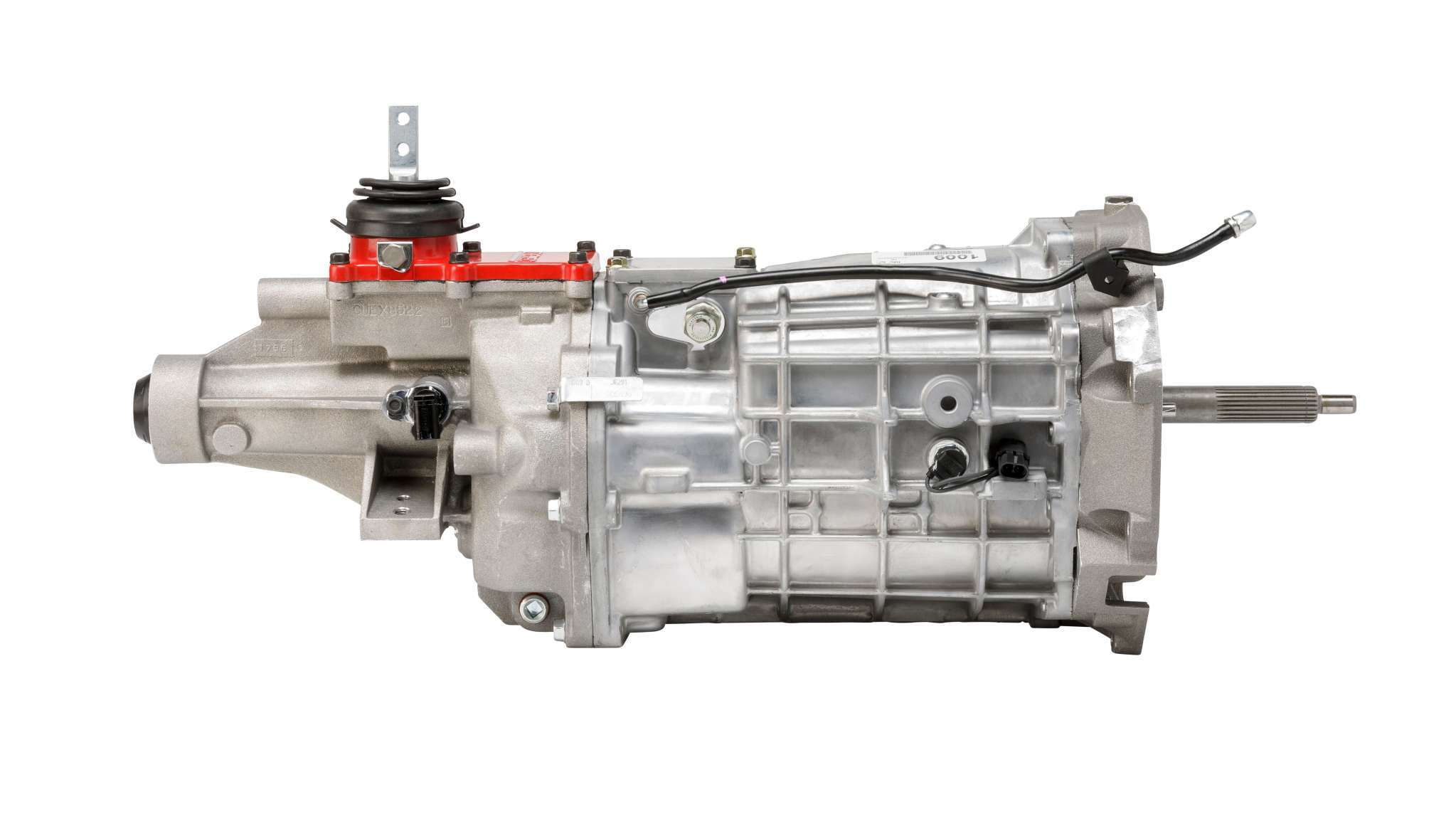

Magnum 6-Speed for Ford, 700ft-lb constant load rated, unmodified, 26-spline input shaft, 4616 chromoly gears and shafts, one-piece counter shaft, triple cone synchros,
1st 2.66, 2nd 1.78, 3rd 1.30, 4th 1:1, 5th .80 and 6th .63 Part number 11010
Choose gear ratios in product options box
And American Powertrain’s exclusive 2 year warranty and customer first extended hour customer service.
Close Ratio version for high performance street and road racing
700 lb-ft. of torque capacity
Reasonably light at 135 lbs. dry
Multiple shifter locations & dual speedo pickups for unmatched versatility
Choice of two different gear ratio sets with unique double overdrive ratios
Incredibly short, extremely low-effort shift throws, with crisp, precise engagement
Modern OE supercar technology for the ultimate pro-tourers, road-racers, and more.

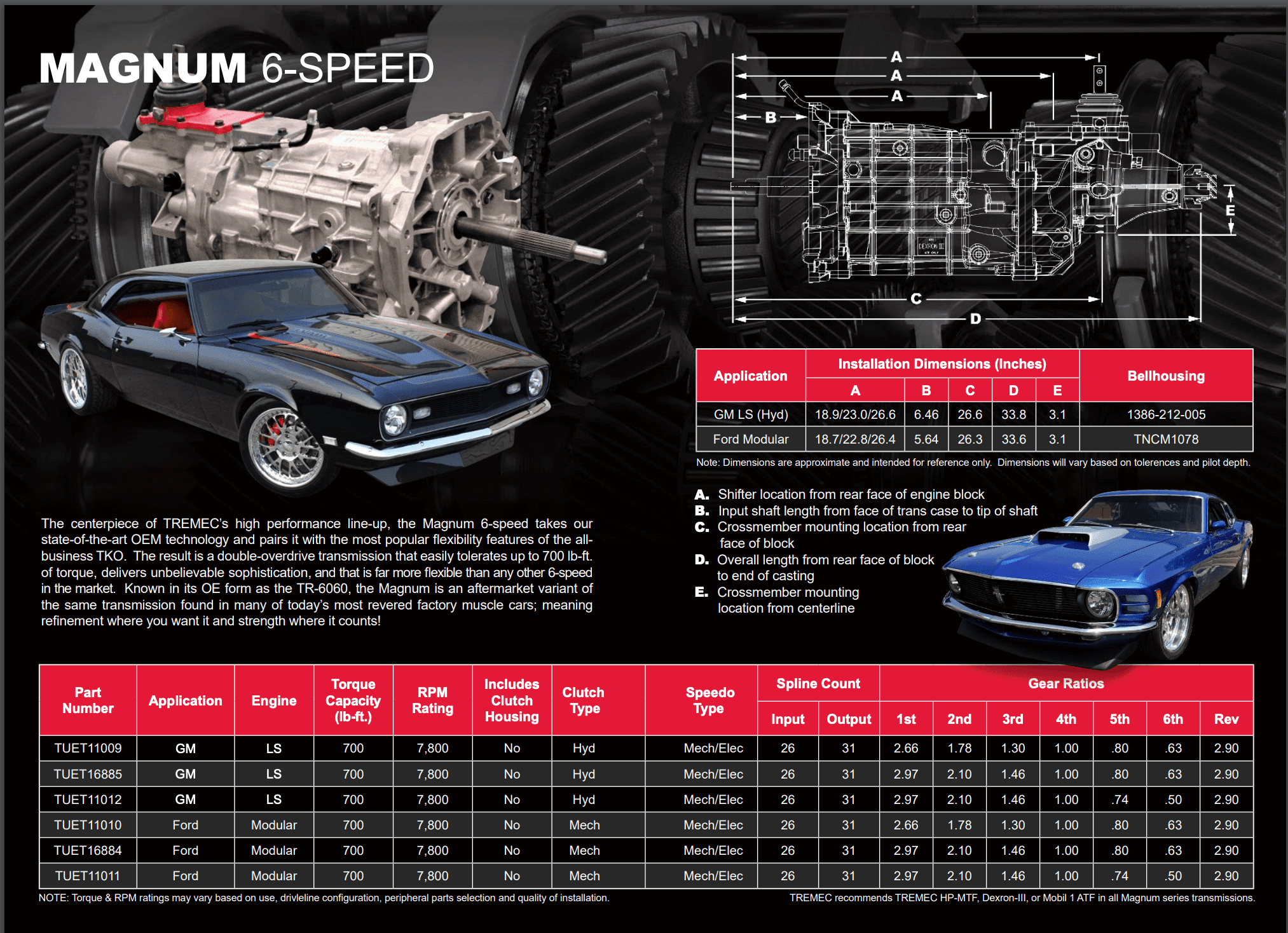

Click on the chart below for available gear ratios and dimensions.
