Consider Your Old F-Car T-56 Obsolete!

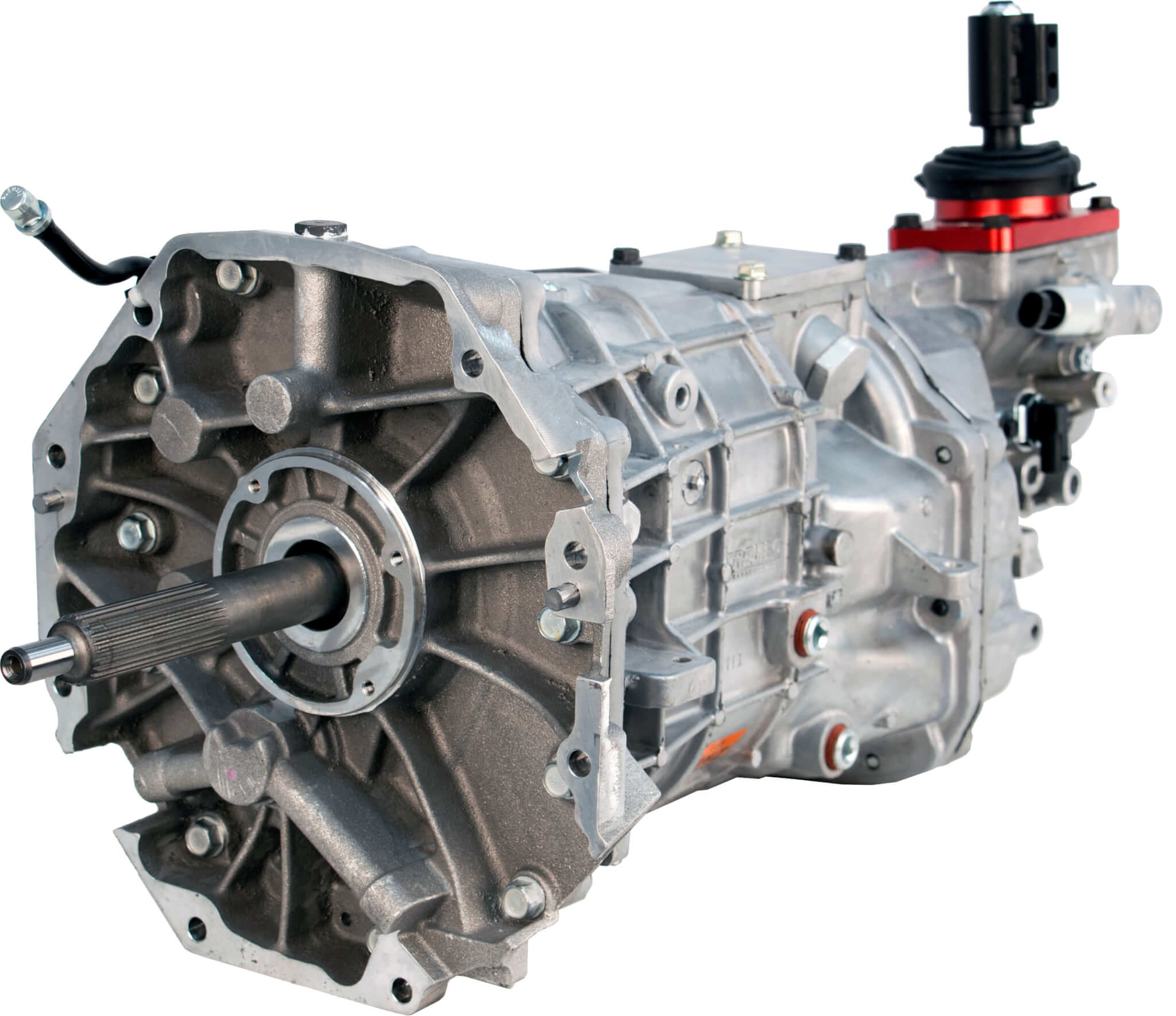

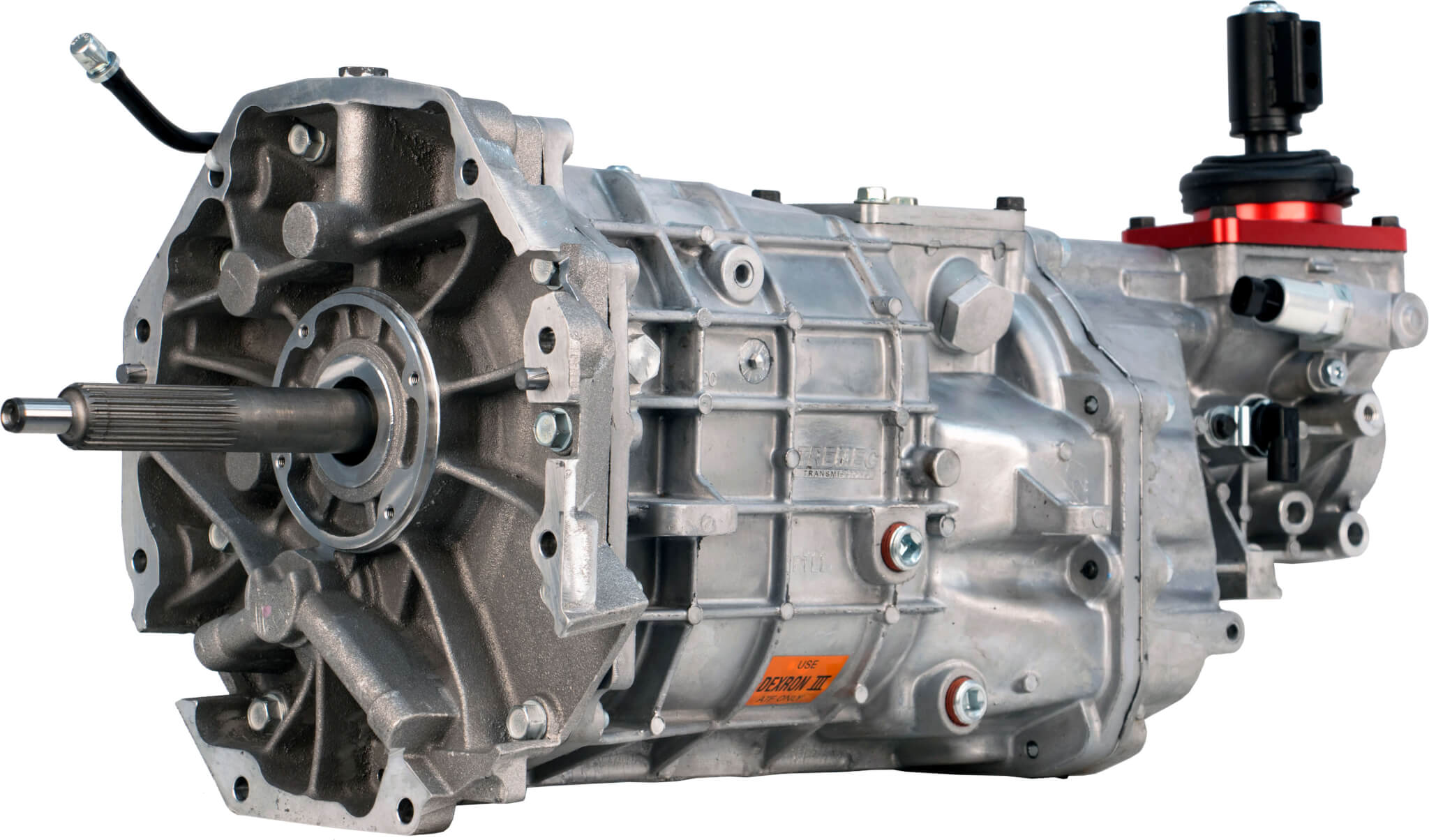

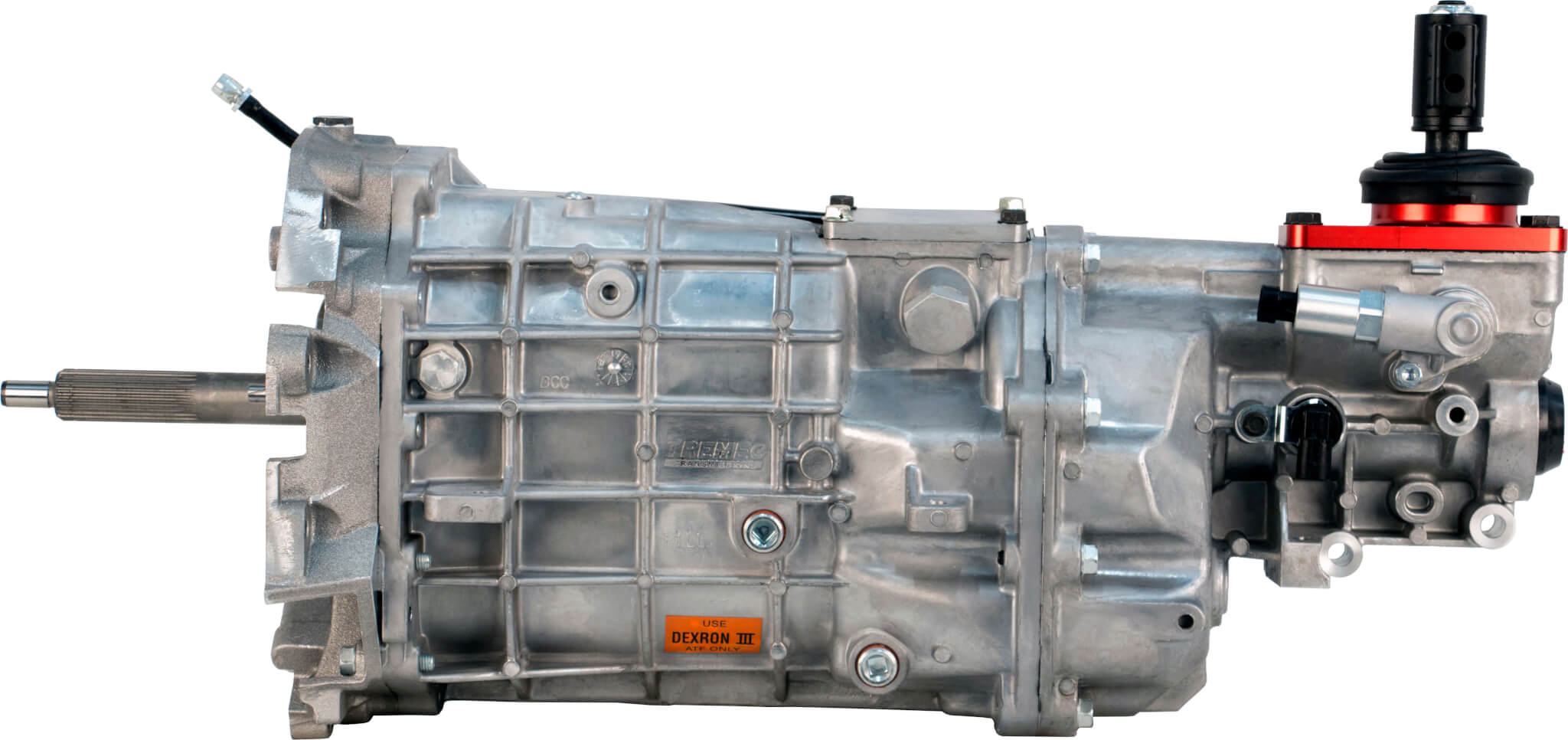

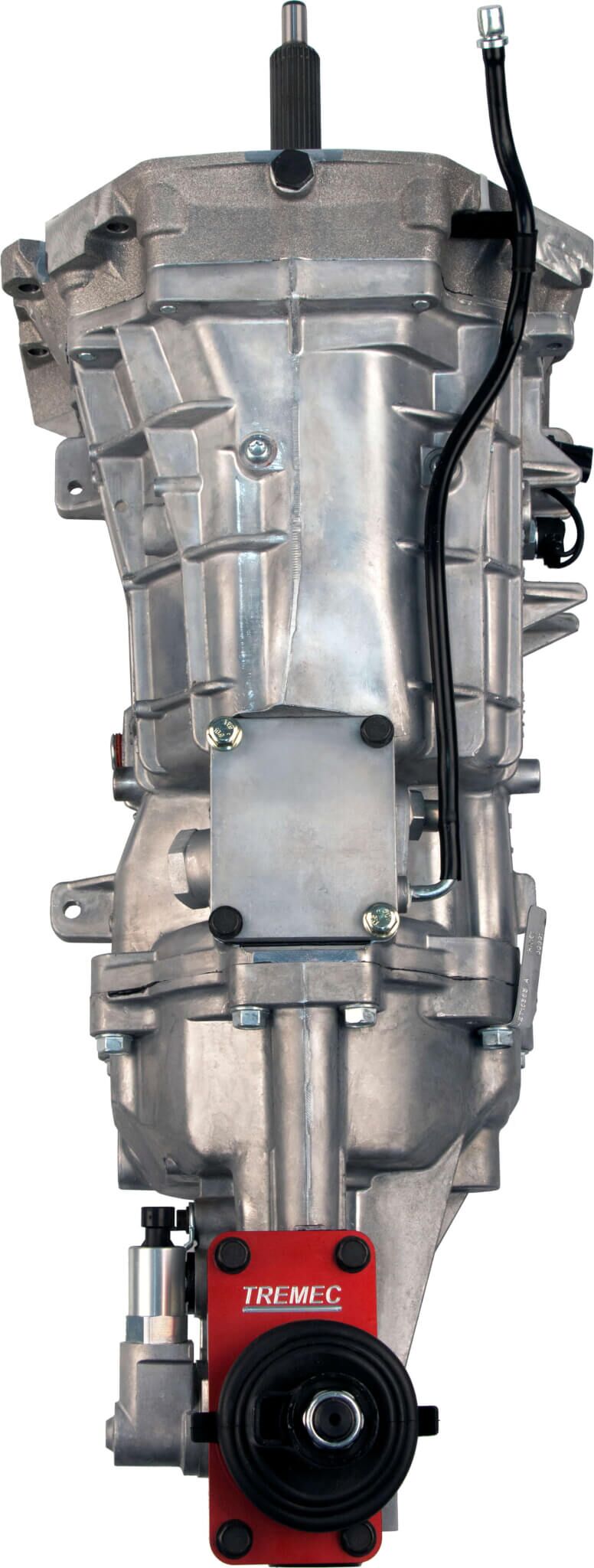

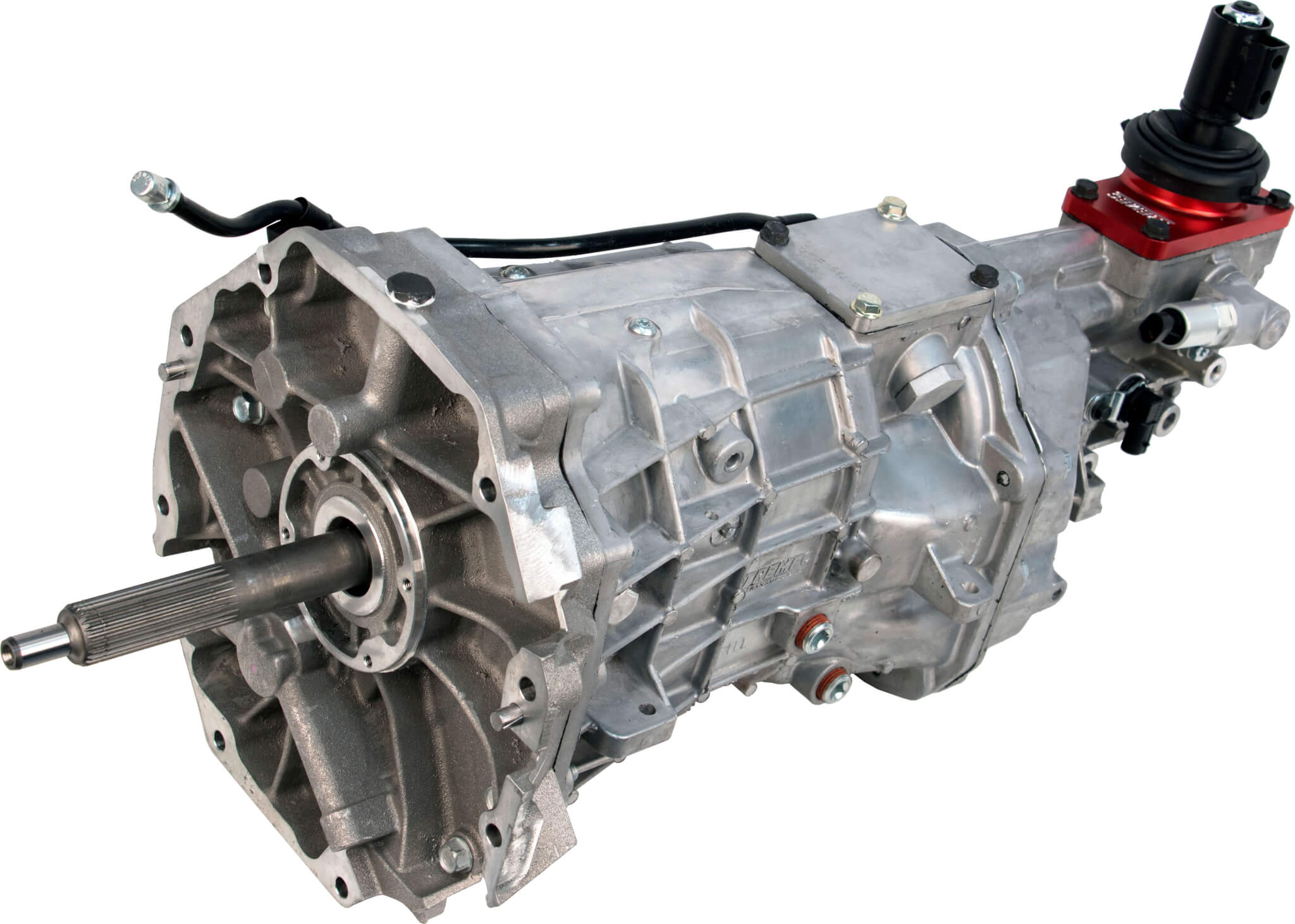

TREMEC releases the Magnum-F™ 6-speed for fourth-generation Camaros and Firebirds.
The long-awaited and highly-anticipated F-car-specific version of TREMEC’s popular Magnum 6-speed has finally arrived! Designed to replace T-56 transmissions in 1998-2002 GM F-bodies, the Magnum-F leverages TREMEC’s pervasive TR-6060/Magnum architecture in order to provide fourth-gen enthusiasts significantly improved performance and relief from a shrinking pool of quality T-56 replacement parts.
Born in the vacuum created by the release of the original T-56 Magnum (now known simply as ‘Magnum’) back in 2009, the Magnum-F fills a longstanding void in the overall Magnum line with regard to shifter locations; addressing not only LS1-powered ‘98-02 F-bodies, but several other applications that utilize a similar shifter position. Beneficiaries include third-generation F-bodies, LT1-powered fourth-gens, LS-swapped late models of all varieties, and sport compact applications such as A80 Supras, FD RX-7s, and more! Where the original Magnum shifter locations may prove too far forward, and the extended length Magnum XL’s too far back, the Magnum-F’s in-between position often proves to be just right.
Inside, the Magnum-F benefits from the same durable componentry found in many of today’s hardest hitting OEM muscle & sports cars. Over the T-56, the Magnum-F boast increased face-width on all gears, a robust combination of double and triple cone synchronizers, enhanced webbing in the main case, provisions for a cooler circuit and more! TREMEC also took the opportunity to upgrade the shifter to an isolator type unit, like that found on its Magnum XL. The shifter reduces in-cabin noise and vibrations while at the same time providing the precise and communicative shift feel that all Magnums are known for. And like all TREMEC aftermarket transmissions, the Magnum-F is made from 100% brand-new OEM-quality content.
Magnum Close Ratio 6-Speed for GM 4th Gen F-body, 700ft-lb constant load rated, unmodified, 26-spline input shaft, 4616 chromoly gears and shafts, one-piece counter shaft, triple cone synchros,
1st 2.97, 2nd 2.10, 3rd 1.46, 4th 1:1, 5th .80 and 6th .63 Wide Ratio
American Powertrain’s exclusive 2 year warranty and customer first extended hour customer service.
Close Ratio version for high performance street and road racing
700 lb-ft. of torque capacity
Reasonably light at 135 lbs. dry
Multiple shifter locations & dual speedo pickups for unmatched versatility
Choice of two different gear ratio sets with unique double overdrive ratios
Incredibly short, extremely low-effort shift throws, with crisp, precise engagement
Modern OE supercar technology for the ultimate pro-tourers, road-racers and more.
